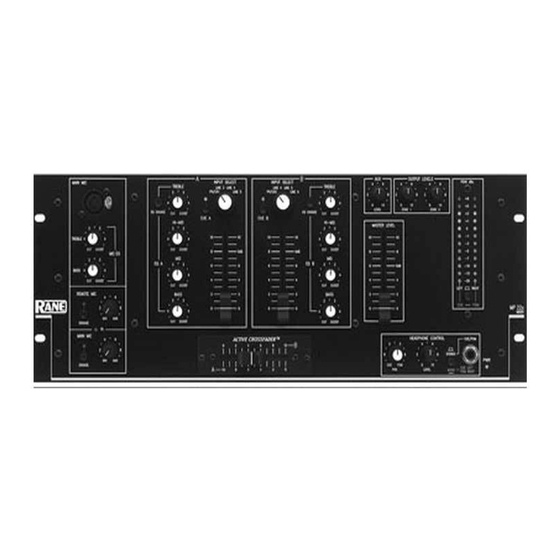

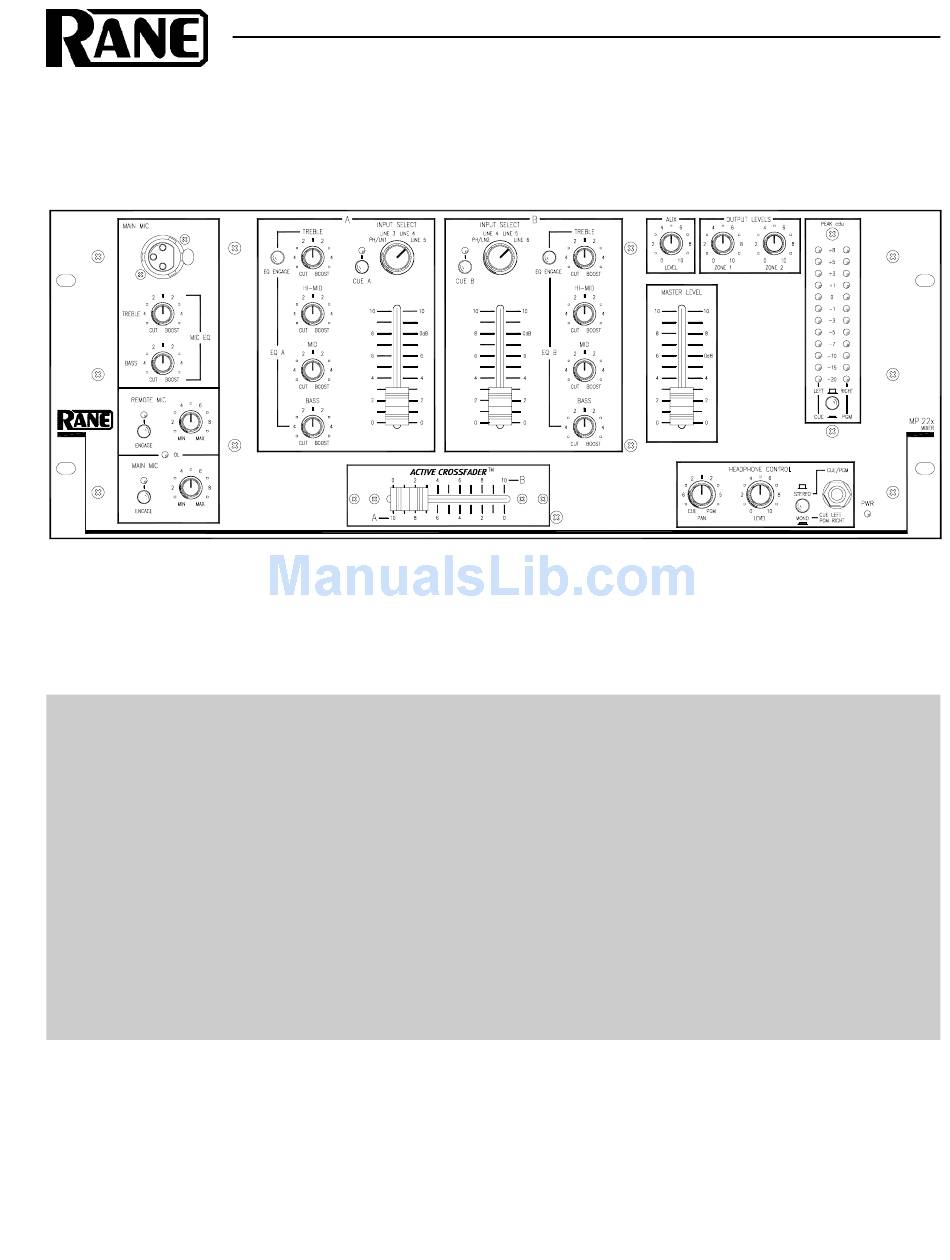

Rane MP 22X Operator's Manual

OPERATORS MANUAL

QUICK START

If you won't read the manual (we know how it is) here are a few basic "plug it in and get signal thru it" facts. The
MP 22x has all unbalanced RCA connectors, except for the XLR & ¼" Mic Inputs, ¼" Mic Loop, and the balanced ¼" TRS
Master Outputs. Be sure your amplifier is off while making connections. On the front panel, set all controls to the middle of
their travel. Set all pushbuttons to their out position, slide the MASTER LEVEL all the way down. Turn the INPUT
SELECT switch for Channel A or B to an Input with material playing. Turn your amplifier on. Now slowly turn up the
MASTER LEVEL and see the material on the meters and hear it from the MASTER OUTPUT jacks.
There are two places where you can get lost. If you bring a phono signal into PH/LN 1 or 2 be sure to keep the LINE/
PHONO switch set to PHONO; likewise when using a CD player be sure this switch is set to LINE. If you plug into the
MASTER LOOP RETURN the signal path thru the unit is broken, since these are switching jacks. They are looking for
the return from an outside device that got its signal from the MASTER LOOP SEND, so only use these when you can
make a complete loop. Now that was a pretty quick start, right?
Never connect anything except a Rane RS 1 to the thing that looks like a red telephone jack on the rear of the
MP 22x. This is an AC supply and requires some special attention if you do not have an operational power supply exactly
like the one that came with your unit. Consult the Rane factory for a replacement or substitution.
MP 22x
DJ MIXER
Manual-1
