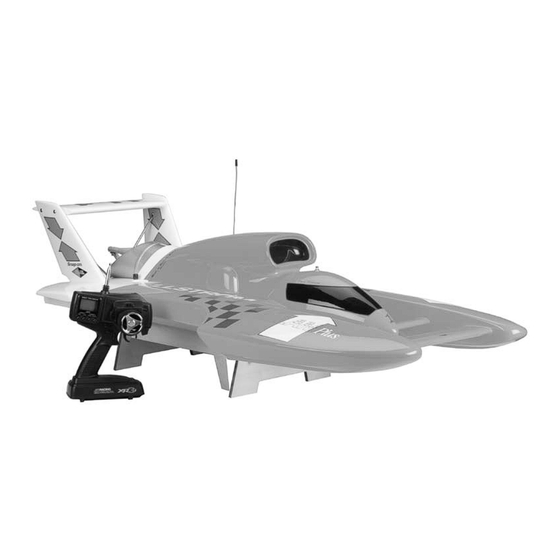

ProBoat Miss Elam Plus Owner's Manual

1/8-scale unlimited hydroplane
Hide thumbs Also See for Miss Elam Plus:
Table of Contents

Advertisement

Quick Links

Download this manual

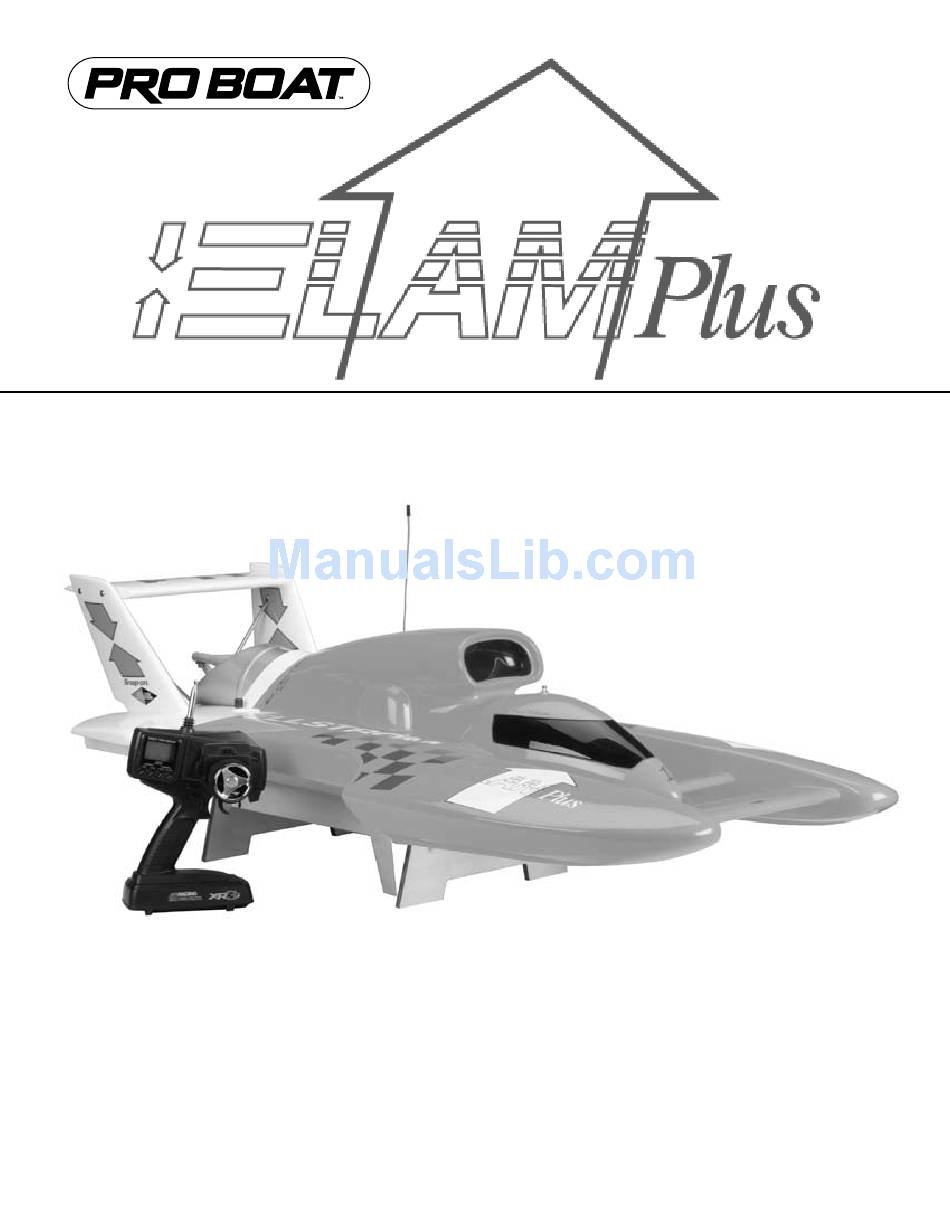

Miss
1/8-Scale.Miss.Elam.Unlimited.Hydroplane.
Specifications
Length........................................................................................45.25.in.(1131.3mm)
Beam............................................................................................ 23.75.in.(593.8mm)
Engine. . ............................................................ Zenoah
Speed..............................................................................................................+35.MPH
Radio.System......................................................................... .JR
Propeller................................................................................................... Prather.270
Owner's.Manual
®
.G26M.and.Tuned.Exhaust
.XR3i.FM.75MHz
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Miss Elam Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProBoat Miss Elam Plus

Summary of Contents for ProBoat Miss Elam Plus

  • Page 1 Miss 1/8-Scale.Miss.Elam.Unlimited.Hydroplane. Owner's.Manual Specifications Length..................45.25.in.(1131.3mm) Beam.................... 23.75.in.(593.8mm) Engine.............. Zenoah .G26M.and.Tuned.Exhaust ® Speed......................+35.MPH Radio.System................JR .XR3i.FM.75MHz ® Propeller....................Prather.270...

  • Page 2: Table Of Contents

    Introduction It.is.very.important.that.you.operate.this.boat. Congratulations.on.the.purchase.of.your.. responsibly..With.proper.care.and.maintenance,.you. Pro.Boat .Miss.Elam..This.is.a.1/8-scale.replica. ™ will.be.able.to.enjoy.your.Miss.Elam.for.many.years. of.the.world.famous.full-scale.hydro..You.are.just. to.come. minutes.from.one.of.the.most.thrilling.experiences. the.radio.control.hobby.has.to.offer. Carefully.unpack.your.Miss.Elam.and.examine.the. boat.and.its.contents..The.box.should.contain.the. The.Pro.Boat.Miss.Elam.is.a.professionally.built,. Miss.Elam.RTR.with.radio.installed,.a.boat.stand,. ready-to-run.fiberglass.model. ® and.the.JR .XR3i.radio.transmitter..If.you.are. ® Powered.by.the.potent.Zenoah .G26M.engine,.you. missing.any.of.these.items.or.notice.any.damage,. will.be.able.to.race.across.the.water.at.speeds.in. immediately.contact.the.place.of.purchase. excess.of.35.mph! Table of Contents Limited.Warranty.&.Limits.of.Liability........................3 Additional.Required.Items............................5 Suggested.Field.Equipment.and.Supplies......................... 5 Contents..................................

  • Page 3: Limited.warranty.&.Limits.of.liability

    Limited Warranty & Limits of Liability Safety Precautions Pursuant.to.this.Limited.Warranty,.Horizon.Hobby,. Inc..will,.at.its.option,.(i).repair.or.(ii).replace,.any. This.is.a.sophisticated.hobby.product.and.not.a. product.determined.by.Horizon.Hobby,.Inc..to.be. toy..It.must.be.operated.with.caution.and.common. defective..In the event of a defect, these are sense.and.requires.some.basic.mechanical.ability.. your exclusive remedies. Failure.to.operate.this.product.in.a.safe.and. responsible.manner.could.result.in.injury.or.damage. This.warranty.does.not.cover.cosmetic.damage. to.the.product.or.other.property..This product or.damage.due.to.acts.of.God,.accident,.misuse,. is not intended for use by children without abuse,.negligence,.commercial.use,.or.modification. direct adult supervision.

  • Page 4: Limited Warranty Period

    Limited Warranty & Limits of Liability (cont) Limited Warranty Period lost.or.damaged.parcels,.as.Horizon.Hobby,.Inc..is. not.responsible.for.merchandise.until.it.arrives.and. Horizon.Hobby,.Inc..guarantees.Pro.Boat ™ is.accepted.at.our.facility..Include.your.complete. products.to.be.free.from.defects.in.both.material. name,.address,.phone.number.where.you.can.be. and.workmanship.at.the.date.of.purchase. reached.during.business.days,.RMA.number,.and.a. General Guidelines brief.summary.of.the.problem..Be.sure.your.name,. address,.and.RMA.number.are.clearly.written.on. It.is.important.that.you.read.and.follow.this. the.shipping.carton. ® instruction.manual,.along.with.the.JR .XR3i.radio. ® system.manual.and.the.Zenoah .G26.engine. Warranty Inspection and Repairs manual,.before.you.run.this.exciting.boat..Failure. To.receive.warranty.service,.you.must.include.your. to.read.and.understand.the.manual.could.result. original.sales.receipt.verifying.the.proof-of-purchase. is.personal.injury,.property.damage.or.permanent. date..Providing.warranty.conditions.have.been.met,.

  • Page 5: Additional.required.items

    Additional Required Items Although.the.Miss.Elam.comes.fully.assembled.and.ready.for.action,.you.will.need.a.few.additional.items.in. order.to.run.your.boat..You.will.need.the.following: Zenoah®.2-Cycle.Oil.(ZEN20001) Fuel.Pump.(HAN155) CA.or.epoxy.glue 12.“AA”.alkaline.batteries.(8.for.the.transmitter. Flex.Shaft.lubrication.(see.local.hobby.store) and.4.for.the.receiver) Fuel.container Gasoline.(+87.Octane),.ethanol-free Suggested Field Equipment and Supplies In.addition.to.the.items.needed.to.run.the.Miss.Elam,.we.recommend.that.you.carry.the.following.. in.your.field.box: Engine.Tuning.Screwdriver.(DYN2775) 4mm.hex.wrench Clean.towels #1.Phillips Extra.Propellers.(PRAB270) Small.crescent.wrench 2mm.hex.wrench 2.5mm.hex.wrench Screw-locking.compound Contents •.Assembled.1/8.scale.Miss.Elam.RTR ® •.JR .XR3i.radio.transmitter •.Boat.stand •.Rudder...

  • Page 6: Section.1:.Building.the.boat.stand

    Section 1: Building the Boat Stand Parts Required Plywood.boat.stand.pieces.(4) Tools.and.Adhesives.Needed CA.or.epoxy .1..Attach.the.side.boat.pieces.by.interlocking. them.into.the.end.pieces.as.shown. .2..Secure.the.interlocking.boat.stand.with. medium.thick.CA.or.epoxy..Make.certain.you. allow.the.CA.or.epoxy.to.fully.cure.before. placing.the.boat.on.the.stand. Section 2: Attaching the Turn Fin Parts Required .4..Carefully.place.a.few.drops.of.blue.Threadlock. Turn.Fin on.the.threads.of.all.four.hex.screws..This.will. 3mm.hex.screws.(2) help.to.keep.the.screws.secured.to.the.blind. Tools.and.Adhesives.Needed nuts.within.the.sponson. 3mm.hex.driver Blue.Threadlock .1..Locate.the.included.turn.fin..This.will.be. attached.to.the.right.sponson..Any.attempt.to. turn.the.boat.left.may.cause.the.boat.to.flip,. especially.if.this.is.done.in.a.tight.diameter.and. at.high.speeds. .2..Place.the.Miss.Elam.on.the.completed.boat. stand.once.the.glue.has.fully.cured.

  • Page 7: Section.3:.Removing.the.canopy

    Section 3: Removing the Canopy Unscrew.the.2.knurled.hatch-mounting.screws.from. the.rear.of.the.hatch..Lift.the.hatch.from.the.boat. Section 4: Installing the Radio System Batteries Tools and Accessories Required 12."AA".batteries 2.5mm.hex.wrench Receiver Batteries .1..Remove.the.2.5mm.hex.head.screws.that. secure.the.clear.Lexan.radio.box.cover. .3..Wrap.the.battery.holder.in.the.foam. provided..Secure.the.foam.using.a.rubber.. band..Reinstall.the.battery.holder.into.the.. radio.compartment. .2..Remove.the.receiver.battery.holder.and.install. 4.“AA”.alkaline.batteries.in.the.battery.holder.. Note.proper.polarity.
  • Page 8 Section 4: Installing the Radio System Batteries (cont) .4..Plug.the.switch.harness.into.both.the.receiver. and.the.battery.box.following.the.instructions. .4..Insert.the.battery.holder.in.the.transmitter. provided.with.the.radio..Secure.the.radio.box. following.the.directions.provided.with.the.. cover.with.the.hex.head.screws. radio.system. Transmitter Batteries .1..Remove.the.transmitter.from.the.box. .2..Remove.the.battery.cover.on.the.bottom.. of.the.transmitter. .5..Install.the.battery.cover.back.into.position.on. the.bottom.of.the.transmitter. .6..Turn.on.the.transmitter.and.confirm.that.the. LCD.illuminates,.indicating.proper.installation.of. fully.charged.batteries. .7..Turn.on.the.receiver.switch.and.move.the. .3..Insert.8.“AA”.alkaline.batteries.into.the. controls..Confirm.that.all.controls.operate.in. battery.holder..Note.proper.polarity. the.proper.direction.and.are.controlled.by.the. proper.transmitter.input. .8..Turn.the.transmitter.and.the.receiver.switch. off..To.keep.the.boat.from.receiving.stray. signals,.the.transmitter.should.be.turned.on.first,. followed.by.the.receiver..Likewise,.the.receiver. should.be.turned.off.first,.then.the.transmitter. Note:.Remember.the.transmitter. must.be.sending.a.signal.the.entire. time.the.receiver.is.on.

  • Page 9: Section.5:.Installing.the.rudder

    Section 5: Installing the Rudder Parts Required Rudder 2.5mm.hex.screw Tools and Adhesives Required 2.5mm.hex.driver .1..Locate.the.stainless.steel.rudder.and.. 2.5mm.hex.screw. .3..Find.the.flat.spot.on.the.rudder..Put.screw. locking.compound.on.the.2.5mm.hex.screw. threads.and.tighten.the.screw.on.the.flat.spot.. as.shown. .2..Carefully.insert.the.rudder.as.shown. Section 6: Propeller Balancing For.optimum.performance,.propeller.balancing.can. add.several.mph.to.top.speed.and.reduce.vibration.. There.are.several.different.propeller.balancing.tools. available..Read.the.instructions.that.accompany. the.propeller.balancing.tool.regarding.removing. material.from.the.propeller..Removing.material.from. the.correct.part.of.the.propeller.is.crucial.to.the. performance.of.the.propeller..Contact.a.local.hobby. retail.store.for.assistance.

  • Page 10: Section.7:.Fueling.the.tank

    Section 7: Fueling the Tank ® Use.only.Zenoah .2-Cycle.Synthetic.Oil.and. gasoline.mixed.32:1.to.power.the.Miss.Elam..Keep. the.fuel.in.a.moisture-free.environment,.. as.stale.fuel.will.cause.the.Zenoah.G26M.engine.to. lose.performance. Section 8: Fuel/Oil Mixture Parts Needed .1..Mix.gasoline.and.2-stroke.oil.(ZEN20001).at.a. Unleaded.gasoline mixing.ratio.of.32:1.(gas.to.oil). Zenoah®.2-stroke.oil .2..Remove.the.fuel.tank.cap.and.fill.the.fuel.tank. with.the.gasoline.and.oil.mixture..Use.a.funnel. to.prevent.spills..If.you.do.spill,.be.certain.to. immediately.wipe.it.up.with.a.clean.towel. Section 9: Range Check the XR3i Radio System Important Note:.Always.perform.a.range. check.prior.to.operating.your.boat. Range.check.your.radio.system.before.the.first.run. after.any.major.repair,.installation.of. of.the.Miss.Elam.to.make.certain.it.is.functioning. new.batteries.or.at.the.beginning.of.

  • Page 11: Section.10:.Starting.the.engine

    Section 10: Starting the Engine ® Note:.The.Zenoah .G26M. Pull-starting the Engine carburetor.is.factory.adjusted.to. deliver.optimum.performance..See. the.Zenoah.Engine.manual.for. fine-tuning.adjustments.and.other. helpful.information.to.make.your. RC.boating.experience.trouble-free. Priming the Engine With.an.assistant.holding.the.boat.to.the.boat.. stand.and.bracing.the.engine.with.one.hand,.pull.. the.starting.cord.briskly.several.times..Once.the. engine.fires.(begins.to.start),.open.the.choke.. Prolonged.choking.will.flood.the.engine.with.fuel.. See.Section.15:.Troubleshooting.Guide.to.correct. the.flooding.condition. Note:.The.engine.is.water-cooled.. Press.the.priming.bulb.several.times.until.it.becomes. Refrain.from.running.the.engine. filled.with.fuel..This.is.not.necessary.if.the.engine. without.proper.cooling.water.or. has.recently.been.run. engine.damage.will.result..Carefully. place.the.boat.in.the.water.as.soon. Choking the Engine as.possible.after.the.engine.has. been.started. Close.the.choke.by.rotating.the.small.yellow..

  • Page 12: Section.11:.Initial.launch.of.the.miss.elam

    Section 11: Initial Launch of the Miss Elam With.the.transmitter.antenna.up,.maneuver.the.Miss. If.at.anytime.you.notice.the.boat.and/or.radio. Elam.in.an.oval,.turning.only.to.the.right.at.slow. system.are.not.functioning.correctly,.end.the. to.medium.speeds..Make.certain.that.the.boat.and. operation.of.the.boat.immediately.and.do.not.run. radio.system.are.functioning.correctly. the.boat.again.until.you.are.confident.the.problems. have.been.corrected. As.you.are.running.the.Miss.Elam.in.an.oval,.watch. for.water.being.discharged.from.the.water.outlets. on.the.left.side.of.the.hull..Water.flowing.from.the. water.outlet.indicates.the.engine.is.being.properly. cooled..If.you.do.not.notice.any.water.coming.from. the.water.outlet,.bring.the.boat.in.and.make.sure. that.the.water.cooling.line.or.the.water.pickup. located.near.the.rudder.are.not.clogged. Section 12: Stopping the Engine Idle.the.boat.near.shore.and.press.the.kill.switch. located.on.top.of.the.cockpit.as.shown.

  • Page 13: Section.13:.Cooling.system

    Section 13: Cooling System Water Pump Hint:.To.test.each.cooling.line. for.obstructions.or.a.leak.in.the. cooling.system,.place.a.piece.of. tubing.over.the.water.inlet.tubes. in.front.of.the.rudder.and.blow. into.the.tube..When.testing.for. obstructions.in.the.cooling.system,. be.sure.to.isolate.each.system.by. pinching.the.appropriate.water.lines. Water-Cooled Cylinder Head and Exhaust Manifold Cooling Jacket The.exhaust.system.is.cooled.independently.from. the.cylinder.head..See.line.drawings.for.proper. cooling.line.routing..Do.not.alter.the.cooling.line. routing.method. The.water.pump.is.operated.from.crankcase. pressure..Be.sure.that.water.is.exiting.the.2.water. jackets.mounted.on.the.left.side.of.the.boat.when. the.engine.is.running.and.the.boat.is.in.the.water..If. water.does.not.stream.out.of.either.the.exhaust.or. cylinder.head.cooling.ports,.immediately.stop.engine. operation.and.remove.obstructions.in.the.lines.or. replace.broken.cooling.lines. Tuned Pipe Fitting Rudder Water Pump Pick-Up Tube Water...

  • Page 14: Section.14:.Clutch

    Section 14: Clutch The.centrifugal.clutch.automatically.engages.when. the.engine.rpm.is.increased..Be.sure.that.the.idle. speed.adjustment.is.set.low.enough.so.that.the. propeller.does.not.rotate.at.idle. Periodically.disassemble.the.clutch.and.clean.debris. from.the.clutch.shoes.and.the.inner.clutch.bell.with. DYN5505.Dynamite®.Nitro.Force.

  • Page 15: Section.15:.Troubleshooting.guide

    Section 15: Troubleshooting Guide Problem Possible Solution ® Engine will not start Improper needle setting: See Zenoah Engine Manual Out of fuel: Fill fuel tank Improper fuel: Use fresh Gasoline & Zenoah 2-Cycle Oil (mixed 32 parts gas to 1 part oil) Bad spark plug: Replace spark plug Flooded engine: Remove spark plug, invert boat and operate the pull-starter to remove fuel Engine starts, then dies Fuel line blocked or broken: Connect or replace fuel line Reset needles to baseline setting: See Zenoah instructions Baseline settings for low-speed and hi-speed needle valves is 1–1 turns out Engine starts and runs for Bad fuel: Replace several minutes, then dies Improper needle settings: See Zenoah Engine manual Overheated engine: Check for clogged or damaged cooling system Debris in carburetor: Remove, clean and replace Section 16: Hull Care The.hull.of.the.Miss.Elam.is.finished.using.the.highest.quality.paints.and.the.most.advanced.painting.methods. available..The.base.coat/clear.cote.technique.delivers.an.amazing.shine.that.is.as.durable.as.. it.is.beautiful..To.keep.your.Miss.Elam.looking.new,.you.should.apply.a.wax.coating.as.used.on.. automotive.finishes.to.prevent.oxidation.and.to.further.protect.against.damage.caused.by.fuel.and.other. harmful.chemicals..Also,.keep.boat.out.of.direct.sunlight.for.extended.periods.of.time.to.prevent.fading. Section 17: Maintenance The.Pro.Boat .Miss.Elam.should.provide.many.
  • Page 16 Section 17: Maintenance (cont) Simply.follow.the.instructions.below.to.properly. lubricate.your.drive.shaft. .1..Carefully.note.how.the.entire.drive.shaft.is. installed..This.is.pivotal.in.order.to.properly.. re-assemble.the.drive.shaft.after.you.have. finished.lubricating.it. .4..Lubricate.the.entire.flex.cable.with. waterproof.grease.as.shown.and.then.re-install. the.flex.cable.back.through.the.liner.and.stuffing. box.and.into.the.clutch. .2..Loosen.and.remove.the.two.2.0mm.set. screws.that.secure.the.propeller.shaft.to.the. brass.ferrule..Remove.the.prop.drive.dog.and. nylon.washer. .5..Reassembly.in.reverse.order..Make.sure.that. the.set.screws.are.tightened.down.on.the.flat. spots.of.the.prop.shaft..Also.be.certain.to.place. a.drop.of.threadlock.on.each.set.screw.before. re-tightening.them. .3..Remove.the.drive.shaft.flex.cable..Replace.the. Teflon.liner.as.needed.

  • Page 17: Section.18:.Replacement.parts

    Section 18: Replacement Parts Your.local.hobby.store.should.carry.a.good.supply.of.Miss.Elam.replacement.parts..You.can.also.purchase. these.parts.from.Horizon.Hobby.at.www.horizonhobby.com.or.call.toll-free.1-800-338-4639. PRB2951....................Hull PRB2952....................Cockpit PRB2261....................Exhaust.Cover PRB2953....................WIng PRB2255....................Wing.Struts PRB2955....................Boat.Stand PRB2297....................Cooling.Tubing PRB2555....................Servo.Tray.set PRB2264....................Fuel.Tank PRB2273.

  • Page 18: Appendix

    Appendix PRB2264 Spark.Plug Pull.Start PRB2556 PRB2273 Carburetor PRB2563 Primer.Button PRB2563 PRB2275 PRB2283 PRB2252 PRB2651 Carburetor PRAB270 PRB2254 PRB2952 PRB2278...

  • Page 19: Notes

    Notes...
  • Page 20 www.proboatmodels.com ©.2006.Horizon.Hobby,.Inc.. 4105.Fieldstone.Road. Champaign,.Illinois.61822. (877).504-0233. www.horizonhobby.com Printed.in.China ...
