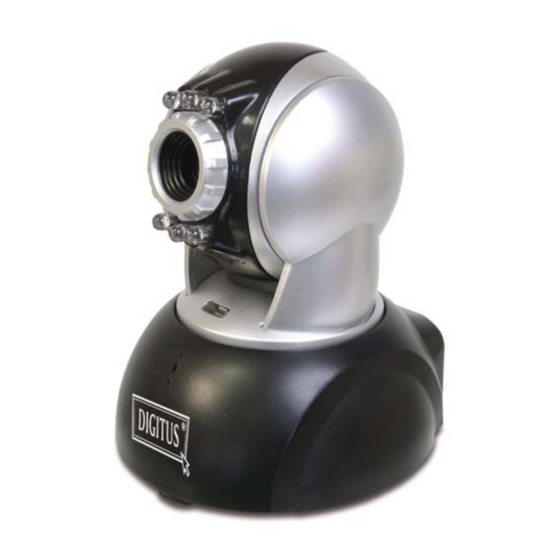

Digitus DN-16032 User Manual

Ip network camera pan/tilt remote control & with audio & night vision
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
I
P
N
e
t
w
o
r
k
C
a
m
e
r
a
I
P
N
e
t
w
o
r
k
C
a
m
e
r
a
Pan/Tilt Remote Control &
With Audio & Night Vision
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN-16032 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DN-16032

Summary of Contents for Digitus DN-16032

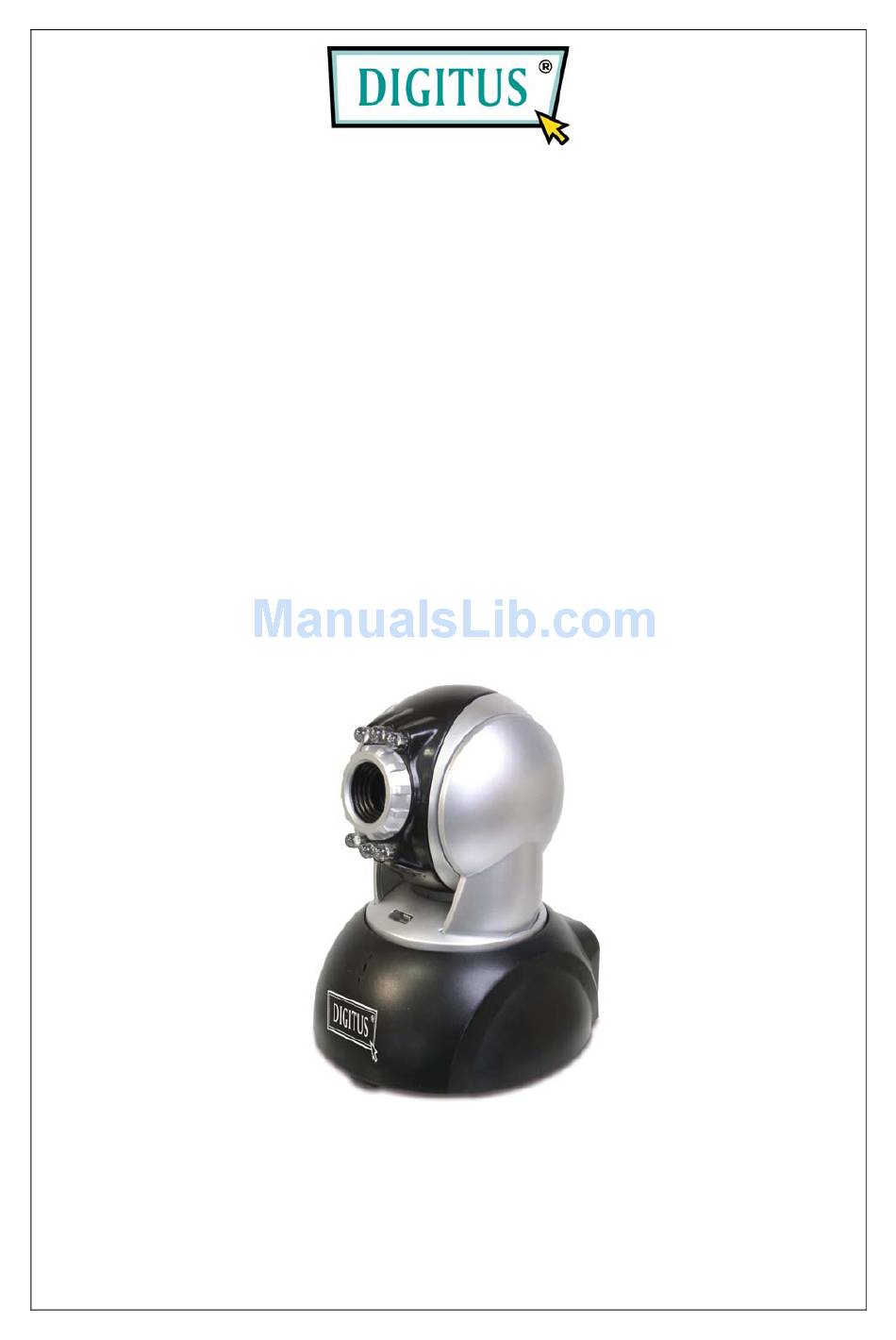

  • Page 1 Pan/Tilt Remote Control & With Audio & Night Vision User’s Guide...

  • Page 2: Table Of Contents

    DN-16032 User’s Guide --------------------------------------------T -------------------------------------------- ABLE OF ONTENTS 1. O ..........................3 VERVIEW 1.1 P ......................3 RODUCT ESCRIPTION 1.2 P ........................3 RODUCT EATURE 1.3 P ......................3 RODUCT PECIFICATION 1.4 P ....................4 RODUCT CCESSORIES NCLUDE 1.5 S ......................

  • Page 3: Overview

    TV screen (supporting NTSC and PAL) in families with combining fast Motion Detection and SD Expansion Card in hardware. Moreover, DN-16032 is equipped with IR LED lightening, so it has the function of night vision. Besides, this device also has the function of recording and real-time photographing.

  • Page 4: Product Accessories Include

    DN-16032 User’s Guide  Image Compression Format : M-JPEG  Focal Distance Range : From 30mm to infinity adjustable  Digital Zoom : 4X  Video Recording : Video Frame rate setting : auto; 1, 3, 5, 10, fps ...

  • Page 5: System Requirement

    DN-16032 User’s Guide Ethernet Cable (blue), used to connect to Hub, ADSL modem, IP Share TV OUT A/V Cable Setup CD This User’s Guide Accessory for hanging and fastening 1.5 S YSTEM EQUIREMENT  Processor: Intel Pentium 4 ® 1.4GHz or above is recommended ...

  • Page 6: Tv_Out Function Introduce

    DN-16032 User’s Guide DC JACK RJ-45 JACK SD Card Slot TV_OUT JACK Reset Switch Usage of Reset Switch: While the system is active normally, press and hold Reset Switch for a short time (about 3 to 5 seconds) till Status LED lights up. The system will restart the device and recover to the factory default settings.

  • Page 7: Product Set-Up

    DN-16032 User’s Guide 1. First, insert the TV_OUT cable to the place as shown in Figure 1.   2. Next, plug in power adapter as shown in Figure 2. Press and hold Reset switch for three seconds. Then, release it. The IP-CAM will access into TV_OUT mode.

  • Page 8: Utilities And Tools

    DN-16032 User’s Guide 2. U TILITIES AND TOOLS 2.1 CAM_EZ S EARCH CAM_EZ Search is an IP search engine offered by this product. It can search IP CAM connected in LAN. Through sending the inquiry of broadcasting packets, after IP CAM responds the question, the window will display a list of all IP CAMs in the network.
  • Page 9 DN-16032 User’s Guide B. Check if the IP addresses for PC network and CAM_EZ Search are on the same network section:  Usually, static IP address will be used to access into Internet, so the IP address will vary. When you want to change IP address, please write down the original IP address on your computer first.

  • Page 10: 2.3 How To Set Up Ip Cam

    DN-16032 User’s Guide Step 1. Click Update. You can see 255DN-16032. Step 2. Click 255DN-16032. You can see Name : DN-16032 : 192.168.9.1 SubMask ：255.255.255.0 GateWay ：192.168.9.254 HTTP Port：Http communication port. The default setting is 80. UDP Port : UDP port, Pre-setting is 1500 Step 3.
  • Page 11 Port numbers, e.g, 1025、 1026、1039…..) UDP Port : UDP Port，Pre-setting is 1500 Step 5. Choose STATIC. Step 6. After finishing the settings, click Submit. The network settings for DN-16032 IP-CAM will DN-16032 USER’S GUIDE PAGE 11/61 Rev. PV1.0...

  • Page 12: Dhcp - Ip Address Setting

    DN-16032 User’s Guide Example: 1. Set up the IP CAM with fixed IP address. 2. Turn on your computer and open IE browser. Type 211.78.174.94:( 1025、 in the Address line. Now you can access into the monitoring 1026、1039….) screen of network.
  • Page 13 HTTP Port：Http communication port. The default setting is 80. Step 3. Choose DHCP. Step 4. After finishing the settings, click Submit. The network settings for DN-16032 IP-CAM will be renewed. (That is, you can obtain a virtual IP address) DN-16032 USER’S GUIDE PAGE 13/61 Rev.
  • Page 14 DN-16032 User’s Guide Step 5. Click Update. You can see 255DN-16032. Step 6. Click 255DN-16032. You can see the change of IP-CAM: Name : DN-16032 : 10.1.10.82 SubMask ：255.255.0.0 GateWay ：10.1.10.252 HTTP Port：Http communication port. The default setting is 80.
  • Page 15 IP-CAM automatically. 1. Click the searched IP-CAM. 2. Check the IP address and Gateway. Floating IP address, SubMask and Gateway will be shown in dimmed color. It means that DN-16032 IP-CAM in LAN has been searched successfully with PPPoE. DN-16032 USER’S GUIDE PAGE 15/61 Rev.
  • Page 16 3. You can also directly use CAM_EZ Search and key in PPPoE Account & Password.  Select PPPoE. Click Submit to send out. The DN-16032 IP-CAM network settings will be renewed.  Now you can click the searched IP-CAM to open IE Browser for accessing into IP-CAM web configurator automatically.

  • Page 17: Ip-Cam Network Framework Installation

    DN-16032 User’s Guide 2.5 IP-CAM N ETWORK RAMEWORK NSTALLATION 一. IP-CAM Network Framework Installation 1 Way to access Internet Use Permanent ADSL or Cable Modem Physical IP Address Owns several physical IP addresses IP Share or LAN Hub General model is OK.
  • Page 18 DN-16032 User’s Guide 二. IP-CAM Network Framework Installation 2 Way to access Internet Use Permanent ADSL or Cable Modem Physical IP Address Owns more than one IP address IP Share or LAN Hub Must be equipped with DHCP function Network Setup for IP -CAM...
  • Page 19 DN-16032 User’s Guide 三. IP-CAM Network Framework Installation 3 Way to access Internet Use dial-up ADSL or Cable Modem Physical IP Address Owns one float IP address (dispatched by ISP dynamically) IP Share or LAN Hub Must be equipped with DHCP and NAT...
  • Page 20 DN-16032 User’s Guide 四. IP-CAM Network Framework Installation 4 Way to access Internet Use Permanent ADSL or Cable Modem Physical IP Address Owns one physical IP address IP Share or LAN Hub Not necessary Network Setup for IP -CAM LAN Enable / Manually...
  • Page 21 DN-16032 User’s Guide 五. IP-CAM Network Framework Installation 5 Way to access Internet Use dial-up ADSL or Cable Modem Physical IP Address Owns one float IP address (dispatched by ISP dynamically) IP Share or LAN Hub Not necessary Network Setup for IP -CAM...
  • Page 22 DN-16032 User’s Guide 六. IP-CAM Network Framework Installation 6 Way to access Internet Use dial-up ADSL or Cable Modem Physical IP Address Owns several float IP addresses (dispatched by ISP dynamically) IP Share or LAN Hub Must be equipped with DHCP and NAT...
  • Page 23 DN-16032 User’s Guide 七. IP-CAM Network Framework Installation 7 Way to access Internet Use Permanent ADSL or Cable Modem Physical IP Address Owns one physical IP address IP Share or LAN Hub Must be equipped with DHCP and NAT functions...

  • Page 24: Installation For Ip Share

    DN-16032 User’s Guide 2.6 I IP S NSTALLATION FOR HARE When IP-CAM is installed under Share, it can obtain a dynamic IP address from DHCP server. If you want to install the IP-CAM in WAN interface, you have to set a fixed IP address for the device.
  • Page 25 DN-16032 User’s Guide (3) Enable DHCP function of IP Share. (Refer to Figure 3. The range of available IP address is 192.168.0.100~192.168.0.199) Figure 3 (4) Access into the web page of Virtual Server. Add the fixed IP address specified by CAM_EZ Search in step (1) and enable it.
  • Page 26 DN-16032 User’s Guide (5) After adding the IP address, you can see jeffipcam1 in the virtual server list (refer to Figure 4.2). Figure 4.2 (6) Restart PC and IP Share. After restarting, if you want to connect IP-CAM from WAN...

  • Page 27: Internet Ip Sharing & Audio Setting

    DN-16032 User’s Guide 2.7 I & A NTERNET SHARING UDIO SETTING Please use the following steps for setting up if your IP cam does not have Audio Step 1, setting Audio Part : the Pre-setting is 1500 (setting range is 1500~65535) and...

  • Page 28: Getting Started

    Follow the steps below to log in as an ”admin” user: Step 1: Open the login window, as shown below. Using the CAM_EZ Search application, select the DN-16032 from the menu, and Double Click on it ; . Step 2: The system login window will appear in Internet Explorer as shown below: Step 3: Enter Account ID and Password (the default settings are “admin”...

  • Page 29: Live View

    DN-16032 User’s Guide 3.2 L When using IP Cam for the first time, users must change the Internet Explorer security settings (please refer to settings step 3.2.1). Otherwise, the system will display the following warning, and be unable to display the surveillance feeds.
  • Page 30 DN-16032 User’s Guide Step 2. After clicking on Custom Level …, a security settings window shall appear. Change ActiveX Control Options and Plug-ins settings to the following： 1. Download signed ActiveX controls: Enable 2. Download unsigned ActiveX controls: Enable 3. Initialize and script ActiveX controls not marked as safe: Enable 4.
  • Page 31 DN-16032 User’s Guide Step 4. At this time, the computer should display a warning window, as shown above : Press “Yes” , to begin; Step 5. When the installation is complete, you may begin viewing the surveillance image for the first time, as shown below.

  • Page 32: Take A Shot

    ActiveX component of your browser to interact with the Rimax DN-16032 each time you access it. When you view the stream from the IP Cam and you see the prompts regarding downloading, running or enabling ActiveX content from the IP address of the DN-16032, click “Yes”...

  • Page 33: Advanced Function With Live View

    DN-16032 User’s Guide Step 4. Release the Ctrl key, and the single still shot image will have been successfully captured. Step 5. Select the menu to browse through the captured images. Refer to Chapter 5.2 for details. Note: Snapshot can only be stored to PC, can't store to SD Card 4.

  • Page 34: Avi Record Setup

    DN-16032 User’s Guide 4.2 AVI R ECORD ETUP By selecting “Record”, you can adjust the AVI Frame Rate settings ad file name. )： DN-16032 USER’S GUIDE PAGE 34/61 Rev. PV1.0...

  • Page 35: Zoom I N Display

    DN-16032 User’s Guide 4.3 Z N DISPLAY Using your mouse, click and drag out a box to select the portion of video that you wish to view as shown by the grey box in the image below. The image will zoom in according to the dimensions entered and will show an image similar to this below ( )：...

  • Page 36: Motor Control

    — Right , press it to move right. — Detection , After press the bottom, IP Cam will detect horizon automatically 5. A DVANCED PPLICATION This chapter explains the advanced settings for the DN-16032, including: - Image Setup - Capture View - Network Setup - Server Setup...

  • Page 37: Image Setup

    DN-16032 User’s Guide 5.1 I MAGE ETUP This includes： - Resolution：Users can select between image resolution of 160x120, 320x240, and 640x480. The default resolution is 320x240. - Quality： Users can select between “fine”, “normal”, and “basic” image quality. The default image quality is “basic”.

  • Page 38: Event Trigger

    DN-16032 User’s Guide 48 images, viewable on three pages of. Images saved using Motion Detection will not be shown here; Step 2. You can set the system to read from either your computer or your SD Memory card. After making your selection, click on Apply Step 3.

  • Page 39: Network Setup

    DN-16032 User’s Guide Detailed explanations are presented in the next chapter. 5.3.1 Event Event settings, including: - Motion Detection (set 1) - Motion Detection (set 2) Individual or both set signal input triggers can be seleced. How to Use Event Settings：...
  • Page 40 DN-16032 User’s Guide - Http Server port settings - Set the port of UDP Server and also Audio Port - DNS settings MAC Address：Displays the Mac address of the IP CAM 5.4.1 IP Assignment： Static IP Assignment refers to the fixed settings of the ISP or network engineering department.

  • Page 41: Server Setup

    Note: Because PPPoE utilizes a dynamic IP address from an ISP, the IP settings for the DN-16032 could differ for each use. It is suggested that an IP Router be used to connect to the PPPoE or DDNS. This will assist your computer in finding the IPCAM.
  • Page 42 DN-16032 User’s Guide 5.5.1 Mail Server This refers to settings pertaining to sending image files via a mail server. You must also make sure that the Mail Image settings from are enabled to e-mail a file to the designated address upon event trigger. This system supports SMTP (Simple Mail Transfer Protocol) servers.
  • Page 43 DN-16032 User’s Guide Mode and Passive Mode. You must be able to write to the root folder of the ftp site to use this feature. How to use FTP Server settings: Step 1: Enter the IP or HTTP address of the FTP server in “IP/Host”...

  • Page 44: Administration Setup

    DN-16032 User’s Guide 5.6 A DMINISTRATION ETUP This menu allows you to designate an IP CAM name, administrator password and other user passwords. Administrators may access all IP CAM functions and settings, while general users may only utilize the view and may not access any of the settings.

  • Page 45: Software Update

    This menu allows you to update the IP Cam software online. You may use this feature to update the internal DN-16032 software in order to make sure you have the newest version available, as well as updates to fix any software glitches.
  • Page 46 DN-16032 User’s Guide automatically. Step 3. New File Name: The filename (including directory) that you want to upload for update. Step 4. Click Browse… to select the file. Step 5. Check the above settings and then click Submit. Step 6. The system will upload the file right away. It might take 7~10 seconds in LAN of 100Mbps.
  • Page 47 DN-16032 User’s Guide (Figure2) (Figure3) Step 9. Re-login IP CAM and type the Account ID and Password. Step10. View Current Version to check if the upgrade is successful or not. Note: After finishing Step 6., do not operate IPCAM and cause it disconnected.

  • Page 48: Appendix

    WITH THE SING A This section is intended to help users connect to a computer to the DN-16032 via a hub. It also describes how to connect to ADSL with a PPPoE type IP address and also how to connect to the DN-16032 using DDNS.

  • Page 49: Dn-16032 User's Guide

    DN-16032 User’s Guide Step 4. mark the following two selects and press Create Account to complete the application Step 5: If the application is successful, the following shall appear on your screen. Step 6: After your application has been completed successfully, respond by E-mail to confirm, and go back to http://www.dyndns.org/...
  • Page 50 DN-16032 User’s Guide Step 8: The “Services” menu should automatically appear. Choose your Domain Name (gotdns.com has been used in this example for your reference). Step 9: Enter your Host Name (domain has been used in this example for your reference).
  • Page 51 DN-16032 User’s Guide B. Connecting to the IP CAM EZ IPCAM with Your Home Computer (Using the CAM_EZ Search Tool) Step 1: Please connect the IP CAM EZ IPCAM to the HUB as shown in following chart： Step 2: Open CAM_EZ Search. Click on “Update” to begin searching for any IP CAM EZ IPCAM connected to the local network.
  • Page 52 DN-16032 User’s Guide Step 4: Select “Internet Protocol (TCP/IP)”, and click on the preferences (R). Click on “Ok”. －select Step 5: Change the IP Address to 192.168.9.2. Change Subnet mask to 255.255.255.0. The default gateway is 192.168.9.254 (Change the IP address to any numbers within the range of 192.168.9.2 –...
  • Page 53 DN-16032 User’s Guide C. Changing the IP CAM EZ IPCAM Settings to PPPoE / Using DDNS Step 1: Select “Network” to open the network menu. Enter your account ID and password in the appropriate field in “PPPoE” (in this example, we have used Chung Hwa Telecom ADSL for your reference).
  • Page 54 DN-16032 User’s Guide Step 3: At this time, you must change the IP settings of your home computer back to their original values (automatically retrieve IP address). To do this, click on “Network Neighborhood”, right click on the preferences (R). Select your local connection and right click to view the preferences (R).
  • Page 55 DN-16032 User’s Guide Step 5: Select “automatically retrieve IP Address (O)” and “Automatically retrieve DNS server address (B)”. Click on “ok”. D. Using the IP CAM EZ IPCAM with DDNS Viewer. Step 1: Open CAM_EZ Search, and Click on Update. Wait for about 60 seconds (actual time dependant on the quality of your connection), and the IP CAM EZ IPCAM should be detected automatically.
  • Page 56 DN-16032 User’s Guide below: At this time, you may select the EZ IPCAM that has been detected. Your browser should automatically open to the EZ IPCAM login window. Step 2: You may also view the surveillance video from the IP CAM EZ IPCAM via a browser from a remote connection (such as your office) by entering a preset DDNS address (such as domain.gotdns.com).
  • Page 57 DN-16032 User’s Guide B. FAQ： PPENDIX General questions for IP Camera Q1：What is IP Camera? A: IP Camera is an independent system that can connect to network or wireless network directly. It is different with general camera. It is an all-in-one system with built-in CPU and transmits high-quality video monitoring images via browser control and network.
  • Page 58 DN-16032 User’s Guide Q8: Can I use IP CAM as general PC camera? A: No. IP CAM IP CAM can connect and transmit through network or wireless network only, and cannot be used with the same usage as a general PC Camera.
  • Page 59 DN-16032 User’s Guide Internet Explorer are properly or not. Then reload the web page of IP Camera for trying again. Q16: Page Error message is shown in the status bar on the left side of the web page of Internet Explorer.
  • Page 60 DN-16032 User’s Guide Q3: I cannot connect IP Camera through IE browser. A1: It might be that the IP address has been used by other device. To solve this problem, you have to disconnect the IP Camera with network. Then, use CAM_EZ Search to assign another IP address that no device uses to the IP Camera.
  • Page 61 DN-16032 User’s Guide A3: The default router might result in such problem. Please check your router’s settings and adjust to allow IP Camera connecting to external area of LAN. (For example, you use NAT forwarding or DMZ function of the router to make the inner network connecting to outside world.)
