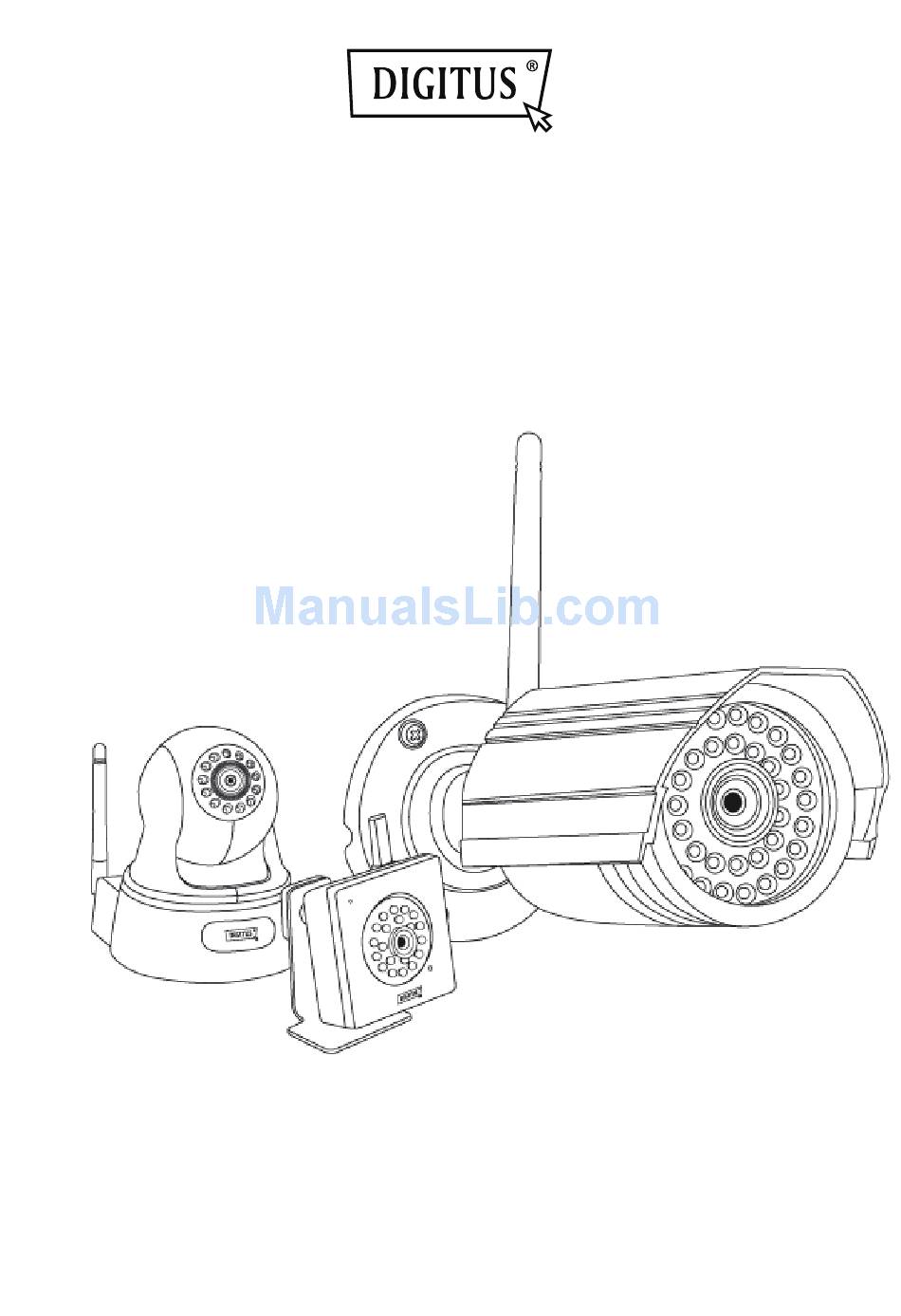

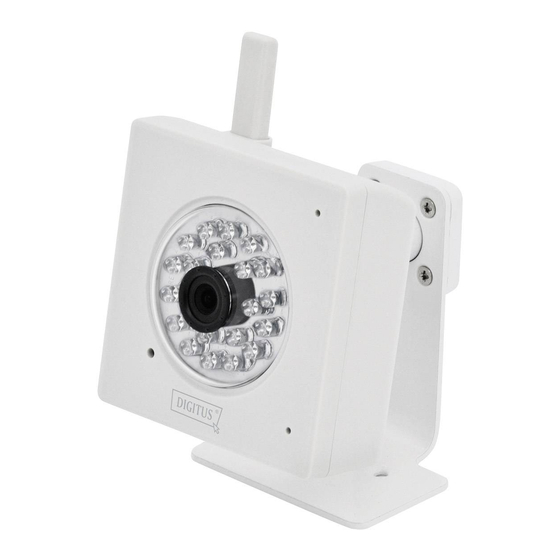

  • Page 1 DIGITUS Plug&View OptiVision / OptiArc / OptiMax / Optimax Pro DN-16037/DN-16040 DN-16036 DN-16027 User Manual DN-16027 / DN-16036 / DN-16037 / DN-16040...
  • Page 2 Introduction: DIGITUS Plug&View series of IP cameras offers P2P Cloud service to avoid those complicated network setting for camera installation. All you need is just “Plug&View” with 3 simple steps. Package Content: IP camera x 1 Power supply x 1...
  • Page 3 Alternatively you can also download “DIGITUS Plug&View” APP from APP store or Google Play and execute this APP from your mobile devices and login the account and password instead of using browser.
  • Page 4 “Success”. Alternatively the easiest way to add camera without key-in long numbers is using the smart phone to scan the QR code on the last page of the QIG using “DIGITUS Plug&View” APP from your mobile devices. After adding the camera, you can have live-view anytime anywhere.
  • Page 5 After entering Camera User Interface from DIGITUS Plug&View website through setting icon , please key in “admin” for the Username and “admin” for the Password to login. At the first viewing of the IP camera, the browser will prompt the users to install the OCX component.
  • Page 6 Go to “Parameter” => “Network”. Select the WiFi button and the SSIDs of your available Wireless router or Access point will pop-up on the screen. Please select the SSID you want to connect to and key in the password if it is encrypted. Press “OK” to apply the changes.
  • Page 7 Close the camera user interface window and unplug the Ethernet cable. Now you can access the camera wirelessly via Plug&View APP or through http://login.mydigitus.net Change Device Name Go to Settings and click Config button to lead to a Modify page for each camera. You may change the name to any desired description.
  • Page 8 Tool bar description Tool bar is located on the up-right-side of each IP cam media screen to foster an easy management at your preference. Light Signal  Green Signal When you read the green light that means the IP cam is online and on air, therefore, its video is successfully displayed on the screen.
  • Page 9 When the selected IP cam supports PTZ function, its PTZ control panel will be displayed for you to manage camera angle on the right-bottom side of the screen. Otherwise, the panel will be displayed in grey to indicate it is not functioning. Each angle adjustment requires one click to make.
  • Page 10 All recorded events are stored and marked in the timeline as in blue tag. You may manage to view them in different time length: by clicking hour, day or week located on the top-left hand side of the timeline. The detailed recorded clips will be displayed when mouse over on the blue tag and the tag turned to be in orange.
  • Page 11 Google Drive - Cloud Storage On mydigitus.net website, after login with your registered account, please go to “Setting” page. Please press the “Google Authentication” button on the top left corner and accept to use “Google Drive” as your cloud storage by clicking “OK”. Then the Google Drive login website will pop-up.
  • Page 12 So this cloud storage feature is making a copy of your video files stored in the Micro-SD card to Google Drive. That means the motion triggered recorded videos or scheduled recording videos stored in the local storage can also be found and even play online on cloud storage. Please login to your Google Drive and select the recorded videos (rtv) file to view the videos online.
  • Page 13 Under Home, you can also control Pan & Tilt (only DN-16036 model) as well as the video settings such as brightness, contrast and saturation. 6.1.2 Log Log is used to record down all the events happened such as motion detection or alarm. You can select the date and press the search button to list out all the logs for this date.
  • Page 14 Video Parameters Users can set the resolution, bit rate, type, frame rate, image quality, etc. of the main stream in the Video Parameters Setting. The user can select the Main flow and Minor flow. Main flow is mainly used if high resolution video streaming is required with using Computer and Notebook where there are higher CPU power comparing to Mobile devices.
  • Page 15 6.1.4 Video Cover This menu allows users to cover the privacy area with color block. The camera maximum supports 4 color blocks area. Click on the video image and drag the mouse, there will be a green block, that is, the cover region. Click OK. Choose the Video Cover option as ‘Off’, click ‘OK’...
  • Page 16 6.1.6 OSD Set Users can set Time, Device Name and two other extended information on screen. The color and position of the characters are also adjustable. 6.1.7 Alarm Set There are three types of alarm settings: Motion Detection, External Alarm and Time Recording.
  • Page 17 For motion detection setting, please tick the box to enable this feature. Please go to “Motion Detection” setting first if the detection area and the sensitivity have not yet been set as shown in the earlier section of this document. Please high-light the time blocks with blue color for the motion detection period.
  • Page 18 System System Setting includes Local Settings, Time Settings, System Tools, User and Device Information. 6.2.1 Local Settings Login options and video streaming options, select the type of stream video files and capture pictures and save path set in the Local Settings. 6.2.2 Time Settings Manual Setting, Sync with computer time, Sync with NTP and Time Zone are optional.
  • Page 19 6.2.3 System Tools System Tools includes Reboot, Factory default,SD format, View Picture on SD-card, update Backup configuration file, Update configuration file and System. System update is used for firmware upgrade.
