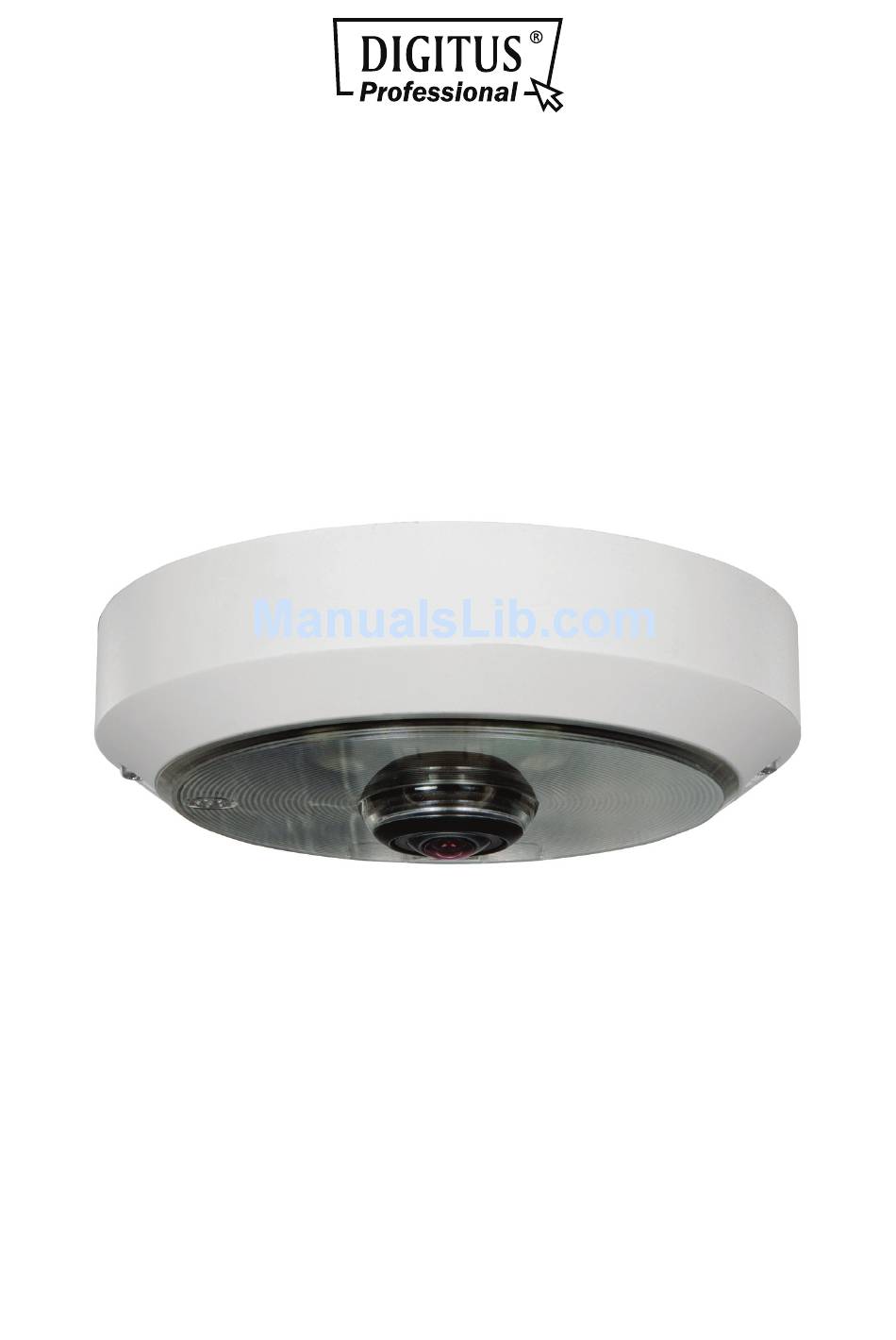

- Page 1 Fisheye IP Camera User’s Manual DN-16087 Ver. 1.0...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ......................3 Dimensions ........................4 Function Cables ......................5 Camera Cabling ........................6 Power Connection ......................6 Ethernet Cable Connection ................... 6 Waterproof Cable Connector (Outdoor Only) ..............7 System Requirements ...................... -
Page 3: Overview
Overview Fisheye IP Camera (DN-16087) is a high resolution surveillance solution features 360° wide coverage without blind spots. Mini fisheye camera supports resolution up to 6 Megapixels streaming at 30 fps which allows the videos to be viewed smoothly. Moreover, the fisheye camera supports digital PTZ, panoramic view and several display modes to fulfill users’... -
Page 4: Package Contents
Packa age Co ontents Please c check the p package co ontains the e following items liste ed below. Hype r Mini Fishe ye IP Self-Tappin ng Screw (x3 Plastic Ancho or (x3) Camera Secu urity Torx Power r Terminal Quick k Guide Bloc... -
Page 5: Dimensions
Dime nsions The dime ensions of the camer r a are show w n below. Outdoor... -
Page 6: Function Cables
Function Cables Connector Definition Remarks Pink Audio In Audio I/O Two-way audio transmission Green Audio Out Power (DC 12V) Black DC 12V – Power connection (2-Pin Terminal Block) DC 12V + Alarm In – Alarm I/O Alarm In + Alarm connection (4-Pin Terminal Block) Alarm Out –... -
Page 7: Camera Cabling
Camera Cabling Please follow the instructions below to complete the cable connections. Power Connection For power connection, please refer to section for All in One Cable for the outdoor models. Alternatively, users can power the camera by PoE if a Power Sourcing Equipment (PSE) switch is available. -
Page 8: Waterproof Cable Connector (Outdoor Only)
Waterproof Cable Connector (Outdoor Only) Follow the instruction below to waterproof the connectors of different types of cables. The supported cables are as shown below. All-in-One Cable IP66 RJ-45 Cable All-in-One Cable Follow the steps below to waterproof the connectors of the All-in-One cable. Step 1: Connect required... - Page 9 IP66 RJ-45 Cable For IP66 RJ-45 cable, please use an RJ-45 IP66 plug for connection to prevent water damage. Follow the steps below for cable connection. Step 1: Take out the supplied connector from the RJ-45 IP66 plug. Loosen the thread-lock sealing nut on the plug.
-
Page 10: System Requirements
System Requirements To perform the IP camera via web browser, please ensure the PC is in good network connection, and meet system requirements as described below. Items System Requirement Minimum : ® 1. Intel Core™ i5-2430M @ 2.4 GHz 2. 4 GB RAM Personal Computer Recommended: ®... -
Page 11: Access Camera
Access Camera For initial access to the IP camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing the Camera by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>... - Page 12 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the camera. Login ID Password admin admin NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
- Page 13 Once the Viewer is successfully installed, the Home page of the IP camera will be shown as the figure below. Ceiling Mount Installed Camera...
- Page 14 Wall Mount Installed Camera NOTE: For more details about the function buttons on the Home page, please refer to the Camera’s Web UI Manual in the supplied CD.
-
Page 15: Setup Video Resolution
Setup Video Resolution Users can setup video resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default video resolution of 5M and 6M models are shown as below. The default resolution varies with different Fisheye Dewarping types, Front End Camera Dewarping and Back End Software Dewarping. -
Page 16: Configuration Files Export / Import
Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera. -
Page 17: Tech Support Information
Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing Viewer For users who have installed the Viewer in the PC previously, please remove the existing Viewer from the PC before accessing to the IP camera. Deleting the Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 18: Setup Internet Security
Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
