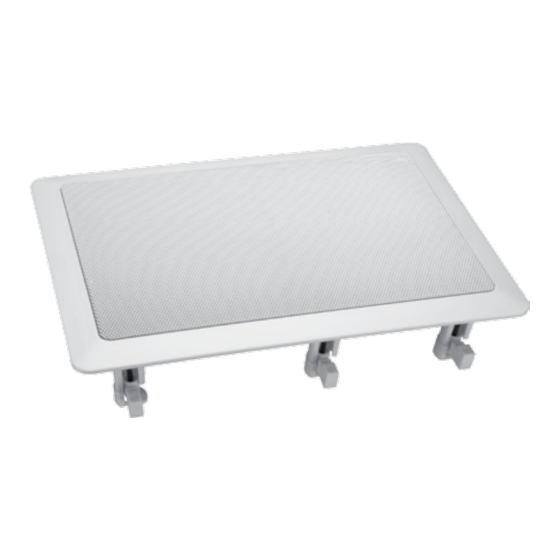

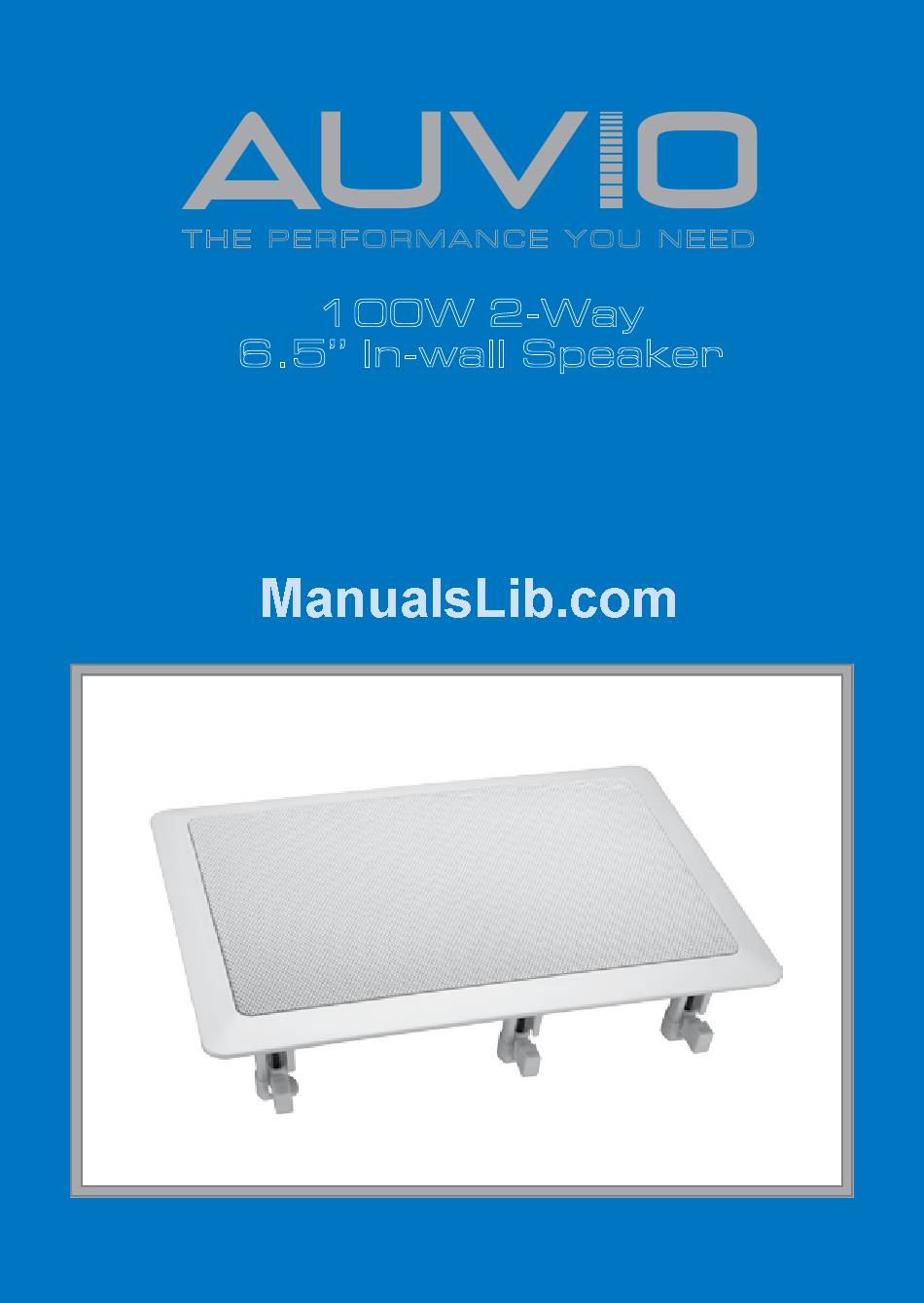

- Page 1 ® T H E PE RF ORMANCE YOU NE ED 100W 2-Way 6.5’’ In-wall Speaker Please read this user’s guide before using your new speaker. User’s Guide 4000013...
-
Page 2: Package Contents
Package Contents Speaker User’s Guide „ „ Template/Paint mask „ Features Mounts flush inside your wall for a sleek appearance „ Tweeter can be tilted to direct the sound to best suit „ the room Two-way acoustic design provides great audio quality „... - Page 3 Has at least 3 inch (76 mm) clearance behind the „ surface. Avoid wall studs or other objects that might block the back of the speaker. Remove the inner cardboard disc from the supplied template/paint mask and keep it for later. Use the outer portion of the mask as a template to mark the cutout hole size and location for mounting the speaker.
- Page 4 Connect to Your Amplifier Connect the speaker to your amplifier outputs, using wire that is color-coded or otherwise marked to help connect the wires correctly. Turn off the amplifier and all associated equipment. Route speaker wire from your amplifier to the speaker. Separate about 2 inches (50 mm) of wire at each end.
-
Page 5: Mount The Speaker
Notes: Make sure that the polarities and impedance of the speaker and amplifier match. Avoid routing the speaker wire near electrical wires. Do not nail, staple, or otherwise puncture the speaker wire. Use a speaker wire no thicker than 14 gauge A.W.G. and no longer than 30 ft to avoid signal loss in the cable. -
Page 6: Specifications
Press to adjust the tweeter to best suit the room’s acoustics and replace the grille. Note: When removing the speaker from the wall or ceiling, loosen the screws just enough to remove the speaker. This will prevent loss of the mounting tabs behind your wall. -
Page 7: Limited Warranty
Limited Warranty Ignition L.P . warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase. IGNITION L.P . MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current;... - Page 8 RoHS environmental restrictions. © 2010. Ignition L. P . All rights reserved. Auvio is a registered trademark used by Ignition L.P . Package and insert are recyclable. Insert contains recycled material. Printed 09A10...
