INSTALL INSTRUCTIONS WGI-D22
TOOLS REQUIRED:
Power drill
Drill bits – 1/8", 5/32"
HARDWARE:
QTY DESCRIPTION
1
Driver Side Window Guard
1
Passenger Side Window Guard
2
Upper mounting bracket
8
#10 x ¾" Sheet metal screw
8
#10 x ½" Sheet metal screw
4
¼" x ½" T-25 Tamperproof bolts
4
¼" Flat Washers
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
SUBASSEMBLY:
1. Bend window guard so it contours the door as
shown in photo #1.
2. Determine the proper window guard for each
window.
3. If installing aluminum door panels refer to those
instructions at this time. They will need to be
installed first.
INTERIOR WINDOW GUARDS
2005-2006 DODGE MAGNUM
Always
T-25 tamperproof torx bit
Phillips screwdriver
PART #
WGI-D22-1
WGI-D22-6
WGI-MB-12-90
GSM33195
GSM33194
GSM34190
GSM31005
!

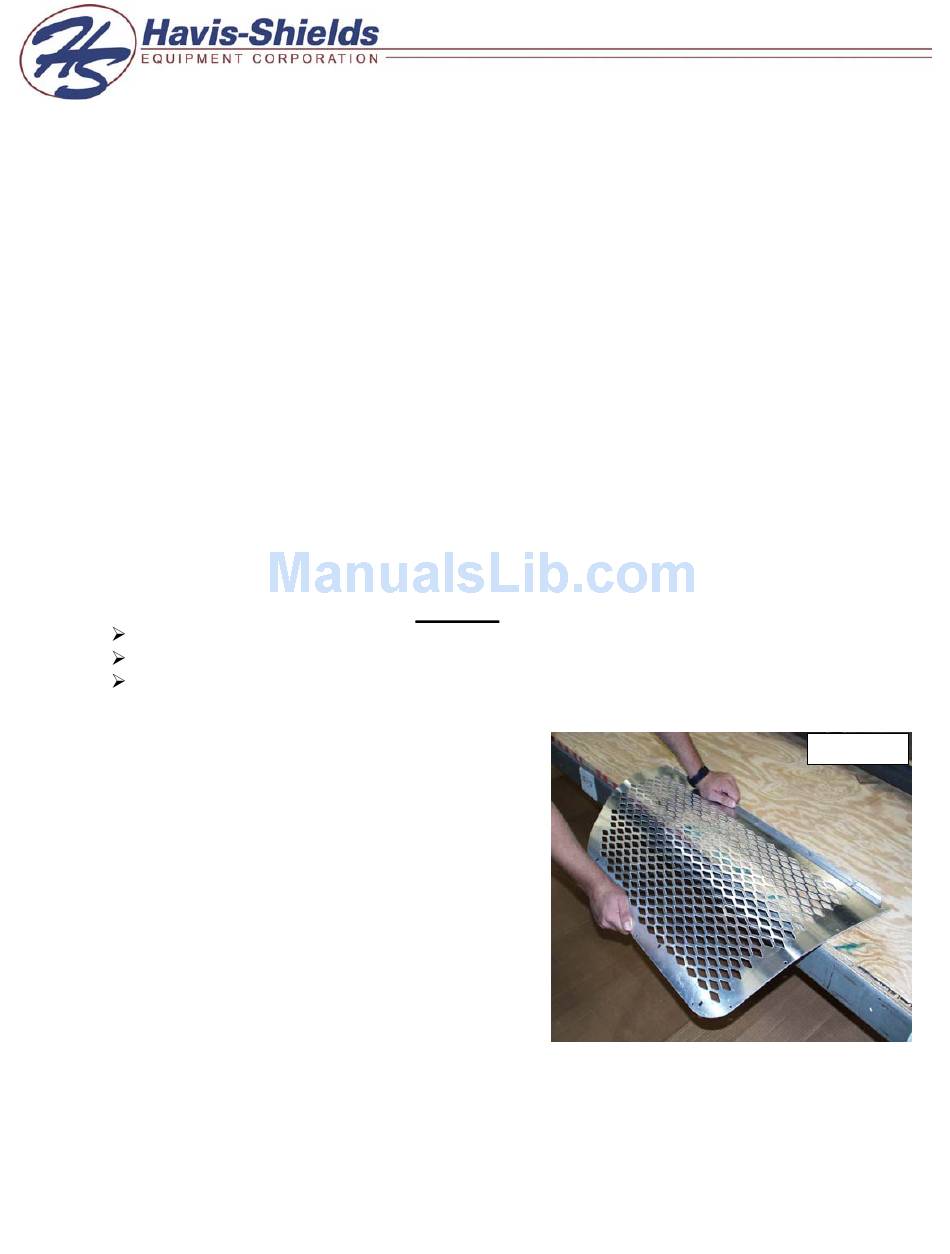

Photo 1
WGI-D22-INST-10-06
