INSTALL INSTRUCTIONS KK-F-ST-SS
FORD FULL SIZE VAN SIDE SLIDE-OUT STEP
TOOLS REQUIRED:
Powered drill
Ratcheting wrench
Tape measure
HARDWARE:
QTY DESCRIPTION
4
¼-20 x ¾" Hex Head Bolt
4
¼" Flat Washer
4
¼-20 Serrated Nut
2
5/16-18 Hex Head Bolt
4
5/16" Flat Washer
2
5/16-18 Nylock Nut
SUB ASSEMBLY:
1. Determine and mark center of door opening to help aid in positioning of step.
2. Mark center of step and position step.
INSTALLATION:

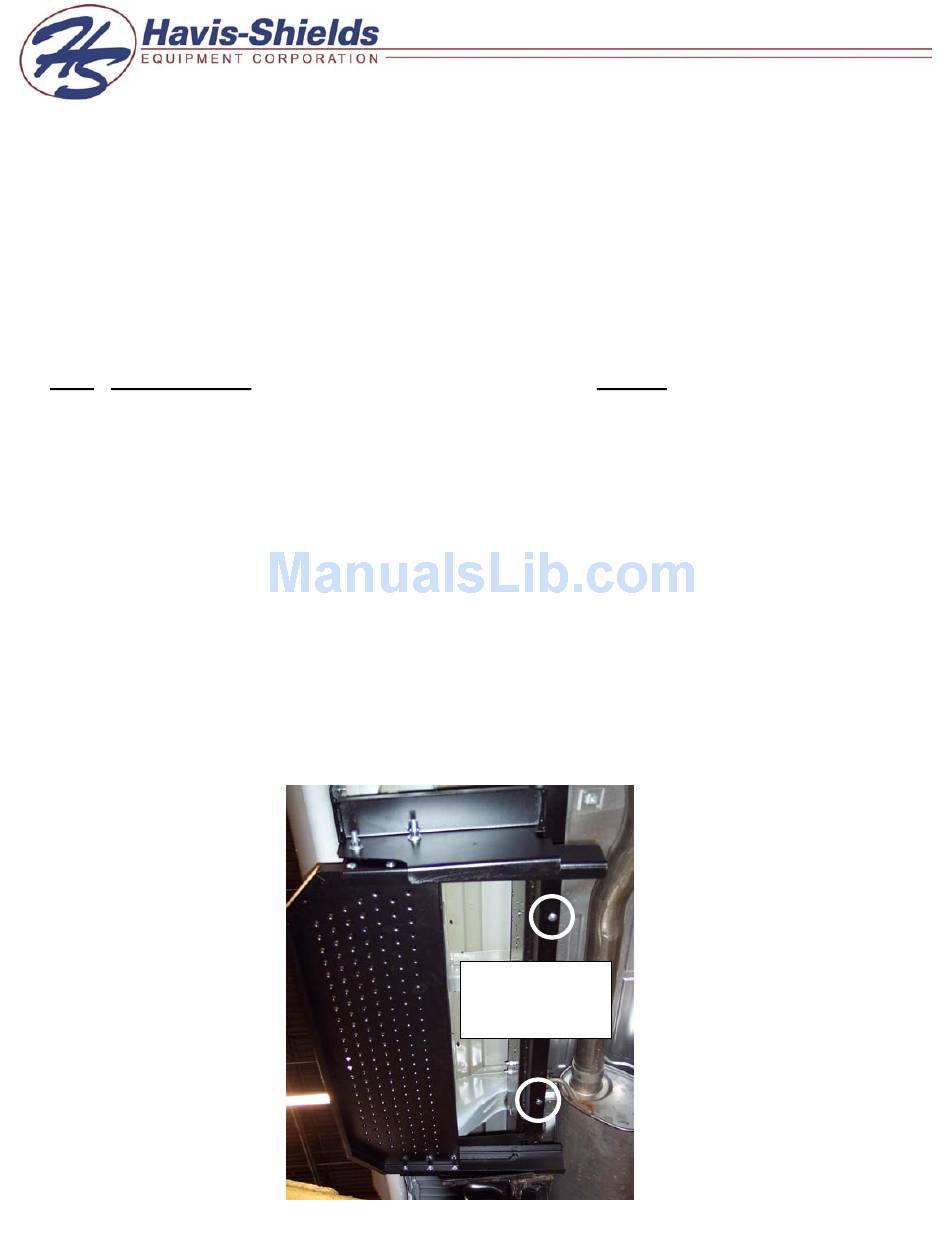

1. ATTACH STEP TO VAN FRAME:
• Position step assembly under van on center mark made in sub-assembly.
• (2) Holes on step will line up with (2) holes in frame rail.
Attach using (2) 5/16-18 x 1" Hex head bolts, washers and Nylock nuts.
•
1997-2007 FORD VAN (GAS & DIESEL)
Drill bit set
Socket Set
PART #
GSM33001
GSM31005
GSM30023
GSM33012
GSM31006
GSM30017
5/16" Bolts,
washers &
Nylock nuts
KK-F-ST-SS-INST-9-06
Advertisement
Table of Contents
Related Manuals for Havis-Shields KK-F-ST-SS
Summary of Contents for Havis-Shields KK-F-ST-SS
- Page 1 INSTALL INSTRUCTIONS KK-F-ST-SS FORD FULL SIZE VAN SIDE SLIDE-OUT STEP 1997-2007 FORD VAN (GAS & DIESEL) TOOLS REQUIRED: Powered drill Ratcheting wrench Tape measure HARDWARE: QTY DESCRIPTION ¼-20 x ¾” Hex Head Bolt ¼” Flat Washer ¼-20 Serrated Nut 5/16-18 Hex Head Bolt 5/16”...
- Page 2 • Raise outer side holes and attach step to fender lip using ¼” of step until level. • Mark (4) mounting holes on fender lip. • Drill ¼” holes on these marks. • Attach using ¼-20 x ¾” Hex head bolts, washers and serrated nuts. Fender lip mounting Frame mounting holes Fender lip mounting KK-F-ST-SS-INST-9-06...
