Summary of Contents for SpeakerCraft BassX Dual 8

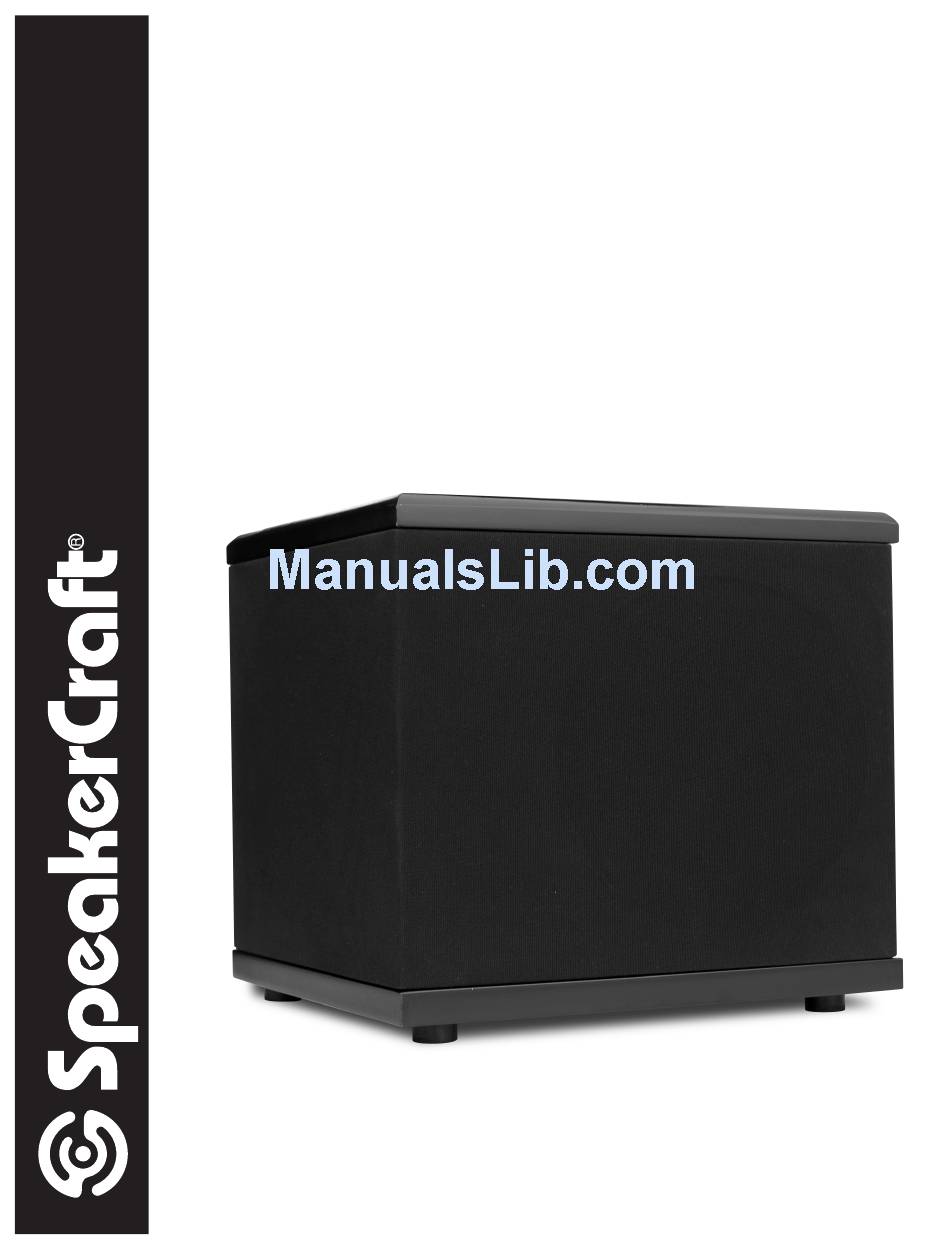

- Page 1 OWNER’S MANUAL BassX Series Floor Standing Powered Subwoofer BassX Dual 8...
-
Page 2: Safety Instructions
Page 2 BassX-Dual 8 Owner’ s Manual SAFETY INSTRUCTIONS APPLICABLE FOR USA, CANADA OR WHERE CAUTION: To reduce the risk of electric APPROVED FOR USAGE shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY. - Page 3 • Obstruct the driver of the BassX Dual 8 as that will hinder performance. • Place the BassX Dual 8 in any position other than horizontal with the feet down. Never place on its side or resting on the back where the terminals are located.
-
Page 4: Troubleshooting
TROUBLESHOOTING The BassX Dual 8 Powered Subwoofer is designed to function trouble-free. Most problems occur due to operating errors. If you have a prob- lem, please check the troubleshooting list first. If the problem persists, contact your authorized SpeakerCraft dealer or SpeakerCraft Technical Support at 800.448.0976... - Page 5 BassX-Dual 8 Owner’ s Manual Page 5 DIAGRAM 1: Receiver with Sub Out STANDBY CROSSOVER CROSSOVER VOLUME BYPASS PHASE 0˚ 30Hz 180Hz 180˚ LINE IN FROM RECEIVER TO SPEAKER BassX-Dual 8 8" Powered Subwoofer FUSE 120V 60Hz T4AL /250V PREOUT DIAGRAM 2: Receiver with Stereo Outputs STANDBY...
- Page 6 SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below. If this model is no longer available and can not be repaired effectively, SpeakerCraft, at its sole option may replace the unit with a cur- rent model of equal or greater value.
