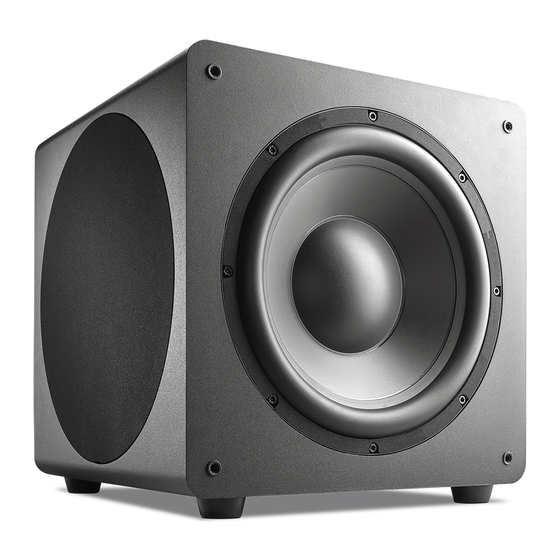

- Page 1 SDSi Subwoofer – Multivoltage Triple 8” / Triple 10” / Triple 12” / Triple 15" INSTALLATION GUIDE...
-
Page 2: Table Of Contents
SDSi-10 . . . . . . . . . . . . . . . . . . . . -
Page 3: Important Safety Information
mporTanT afeTy nformaTIon Read these instructions Keep these instructions CAUTION Heed all warnings RISK OF ELECTRIC SHOCK Follow all instructions DO NOT OPEN Do not use this apparatus near water Clean only with dry cloth. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, Do not block any ventilation openings. -
Page 4: Unpacking
npaCkIng Your subwoofer should reach you in perfect condition . If you notice any shipping damage, please contact your Dealer immediately . Gently lift the unit out, and remove all the packing material . It's important to save all the packing materials and the box in case your subwoofer ever needs to be moved or returned . - Page 5 Power Indicator. This light is illuminated blue when the subwoofer is turned on and playing, and it illuminates red when the subwoofer is in on, but in Standby mode . Volume Control. Volume control gives the ability to match the output level of the subwoofer to the level of your satellite/main speakers .
- Page 6 STATUS VOLUME CROSSOVER ➓ 50Hz 160Hz ❼ PHASE 180º 0º Level ❽ OPTIONAL WIRELESS RECEIVER ❾ 220-240V USB POWER 5V 500mA 100-120V POWER ON-AUTO-OFF AC 100-120V / AC 220-240V 50-60Hz 720W Flip the switch, and listen for the most bass at your listening position . As a final trim, adjust the crossover frequency and volume controls after the phase control has been set .
-
Page 7: Subwoofer Placement
USB Connector. The USB connector is used to power the optional subwoofer wireless receiver . Do not plug in other USB devices into this port, as it may damage the subwoofer or the device. Refer to the wireless receiver installation instructions for more details . 10. -
Page 8: Connecting Your Subwoofer (Lfe)
ON-AUTO-OFF AC 100-120V / AC 220-240V 50-60Hz 720W SDSi Subwoofer (back) If your processor or receiver has a subwoofer output (LFE/SUB), it should be connected to the subwoofer’s LFE input as shown . This is the simplest and recommended connection . -
Page 9: Connecting Your Subwoofer (Stereo)
ON-AUTO-OFF AC 100-120V / AC 220-240V 50-60Hz 720W SDSi Subwoofer (back) If your processor or receiver does not have a LFE/SUB output, but has a Stereo Output, you can connect a stereo RCA type cable from the stereo output to the Low Level red and white inputs on the back on the subwoofer . -
Page 10: Adjusting Your Subwoofer
djusTIng your ubwoofer Set the MODE switch to the ‘ON’ position . Plug the subwoofer into an electrical outlet using the included power cord . The status LED will illuminate solid blue when power is present and the subwoofer is ON . Set the controls and switches to their initial setup STATUS positions:... -
Page 11: Attention: To Our Valued Customers
.com or contact your authorized Dealer for more information . For technical inquiries, please call 1-800-448-0976 . In our attempt to constantly improve our products, features and specifications are subject to change without notice . peCIfICaTIons SDSi-8 Woofer 8” High-excursion Polypropylene Cone Passive Woofers Dual 8” High-excursion Polypropylene Cone Frequency Response (+/–... -
Page 12: Limited 2-Year Warranty
Please fill in your product information and retain for your records. Model ______________________________________________ Serial # _____________________________________________ Purchase Date ________________________________________ www.speakercraft.com ©2020 Nortek Security & Control LLC. All rights reserved. SpeakerCraft is a registered trademark of Nortek Security & Control LLC. 10030692 Rev-B Nortek Security & Control LLC...
