Summary of Contents for SpeakerCraft Boomtomb

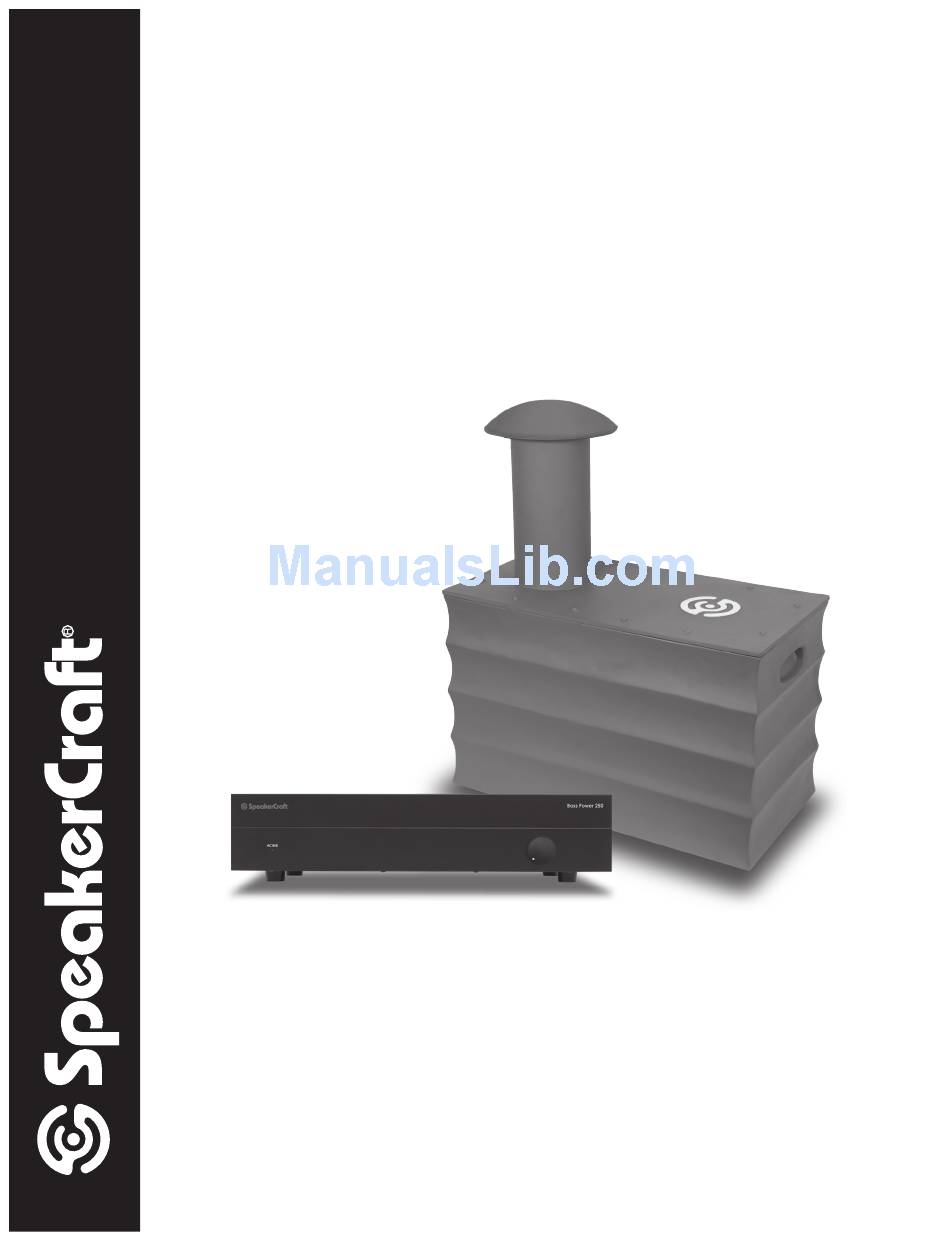

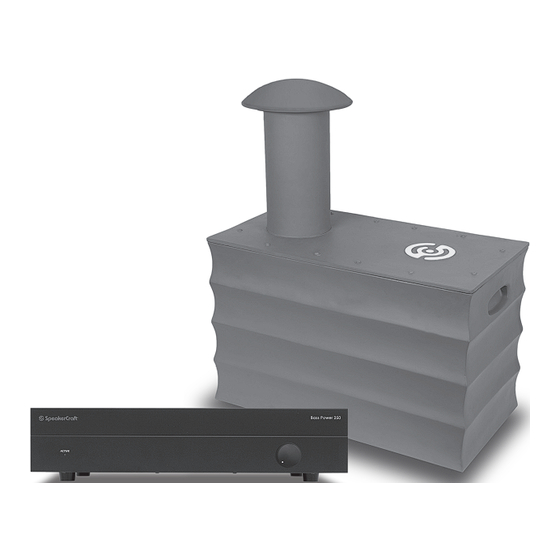

- Page 1 OWNER’S MANUAL Boomtomb 10" In-Ground Subwoofer System...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR USAGE CAUTION: To reduce the risk of electric CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH shock, do not remove cover (or back). No WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY. user-serviceable parts inside. -
Page 3: Speaker Placement
Boomtomb systems to achieve optimal effect. • If you desire music over a wide area, it is best to have a larger number of Boomtomb systems playing at low volume, rather than a few speakers playing at high volume. Keep this in mind when designing your outdoor system. - Page 4 Power 250 (part #AMPX67250), use one speaker lead for the left channel and the other for the right channel. • When attaching the wire to the Boomtomb, it is critical that a high quality connection is achieved. A poor connection may lead to corrosion and a decline in or loss of performance. For best results, use a set of weatherproof wirenuts.
-
Page 5: Connecting The Audio Inputs
INSTALLATION (continued) 1. Connecting the Subwoofer to the Amplifier CAUTION: Only make connections when the amplifier is turned off. There are 2 output terminals on the back of the amplifier, one positive and one negative. These 3-way binding post output terminals allow for a variety of ways to connect your subwoofer wiring to the amplifier, including stripped wire, spade con- nectors, etc. -
Page 6: Amplifier Operation
AMPLIFIER OPERATION Please use Diagrams 1 & 3 to familiarize yourself with the front and rear panels of the Bass Power 250. CAUTION: Please read all the following instructions to prevent causing damage to your system. Front Panel Controls • Volume Control Use this to match the output level of the subwoofer to that of the main speakers in the system. -
Page 7: Troubleshooting
The Bass Power Subwoofer System is designed to function trouble-free. Most problems occur because of operating errors. If you have a problem, please check the troubleshooting list first. If the problem persists, contact Tech Support at 1-800-448-0976 or e-mail us at techsupport@speakercraft.com. The Problem Possible Causes and Solutions No sound is heard. -
Page 8: Specifications
In any case, the risk of loss or damage in transit is to be borne by the purchaser. If, upon examination at the Factory or SpeakerCraft Authorized Dealer, it is determined that the unit was defective in materials or workmanship at any time during this warranty period, SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below.
