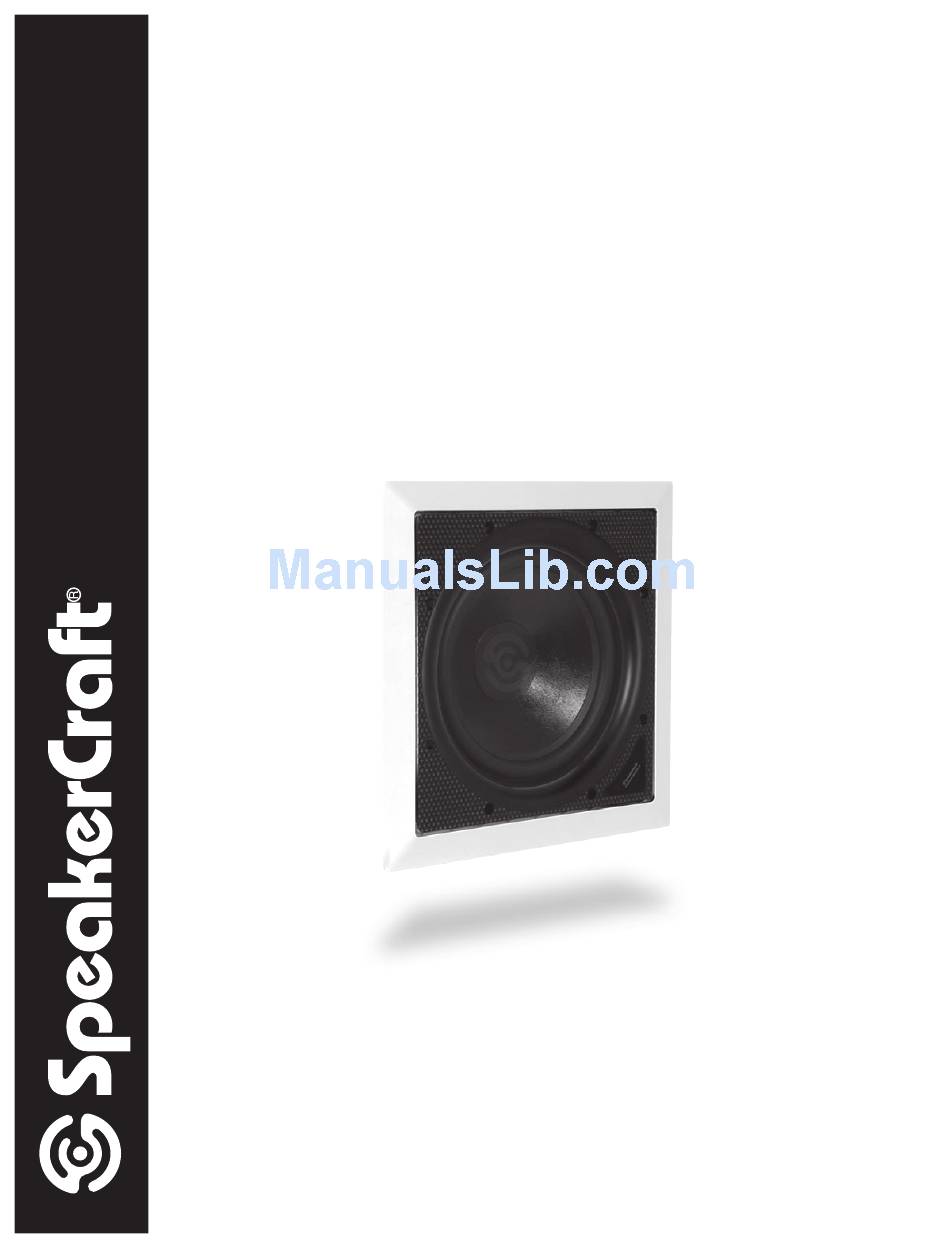

- Page 1 OWNER’S MANUAL Cinema In-Wall Sub In-Wall Subwoofer Cinema Sub 12 | Cinema Sub 10 | Cinema Sub 8...
-
Page 2: Safety Instructions
DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND. 10. Power Source - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. -
Page 3: System Components
In new construction, we highly recommend using the Accutune box that matches your subwoofer. It has been designed • to acoustically compliment the subwoofer and eliminate the acoustic problems caused by drywall, by providing a solid enclosure to which the subwoofer will be attached. Please contact your authorized SpeakerCraft dealer for further infor- mation. •... - Page 4 • Be sure there is enough clearance for the mounting feet. • Please follow the instructions below carefully. For technical inquires, please call 1-800-448-0976 or e-mail us at techsupport@speakercraft.com. STEP 1 Cut opening STEP 2...
-
Page 5: Installation
INSTALLATION Cinema Sub Installation – New Construction Mounting the Cinema Sub subwoofer requires that you first run speaker wire (minimum 14 gauge) to the Bass Power amplifier’s location. For greatest flexibility of connection, use four conductor, 14 gauge wiring. After pulling the speaker wire from the Bass Power amplifier location, you can now hang the drywall. -
Page 6: Specifications
" (292mm x 292mm) 10" x 10" (254mm x 254mm) 6 lbs. Cinema Sub 10 10" Long Throw Woofer, Treated PaperCone with Butyl Rubber Surround 4 ohms / per coil 89 dB 30Hz - 800Hz 200 watts (use the Bass Power 200 amp) White ⁄... -
Page 7: Limited Lifetime Warranty
It is preferable to ship this product in the original shipping container to lessen the chance of transit damage. In any case, the risk or loss or damage in transit is to be borne by the purchaser. If, upon examination at the Factory or SpeakerCraft Authorized Dealer, it is deter- mined that the unit was defective in materials or workmanship at any time during this warranty period, SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below. - Page 8 940 Columbia Avenue, Riverside CA, 92507 | USA (800) 448 0976 Fax (951) 787 8747 International +1 951 787 0543 | www.speakercraft.com LIT67000...
