Summary of Contents for SpeakerCraft BassX-W10

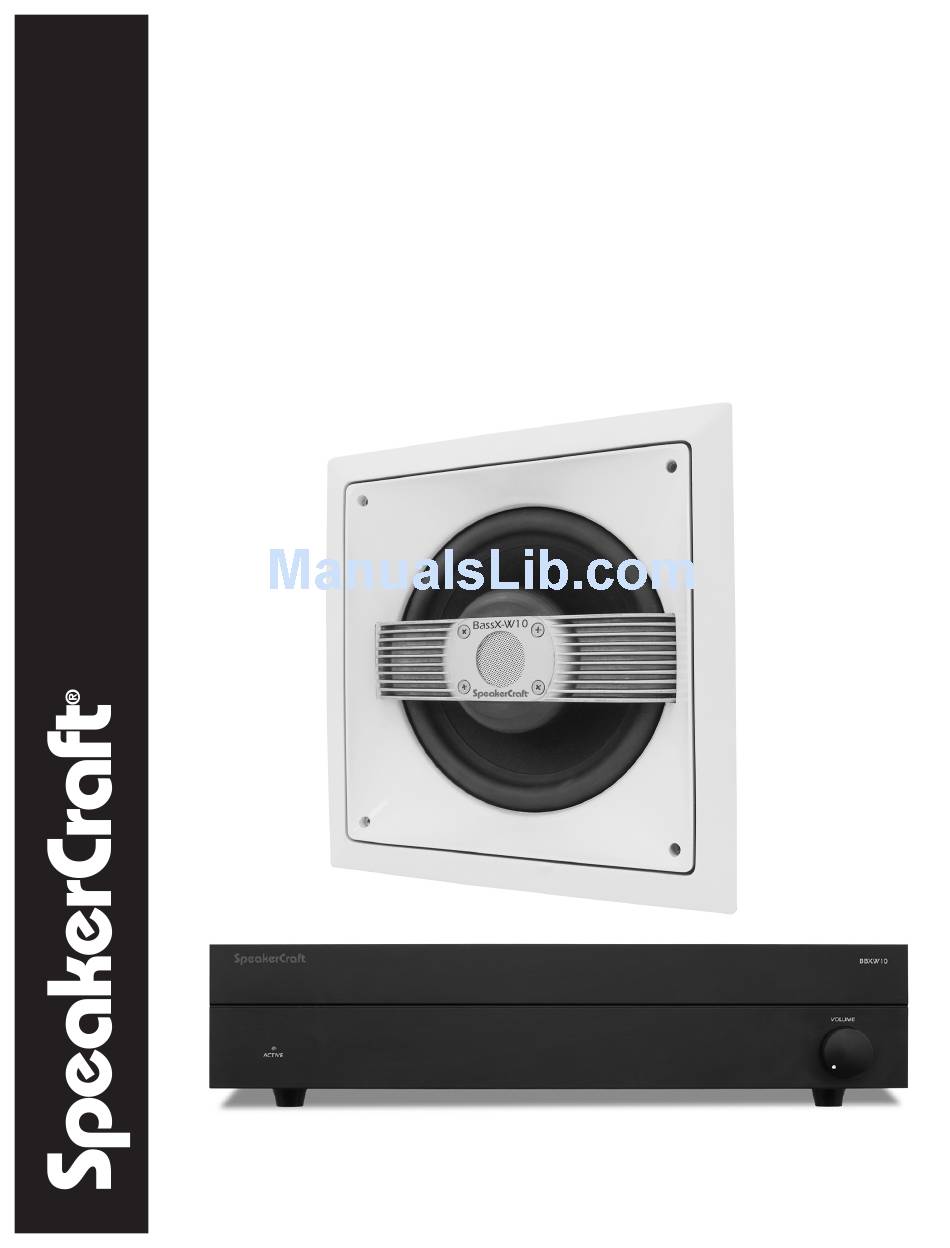

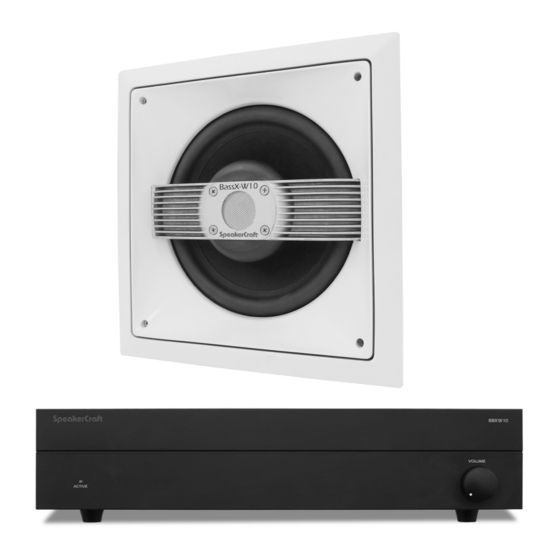

- Page 1 OWNER’S MANUAL BassX-W10 Powered In-Wall Subwoofer...
-
Page 2: Safety Instructions
Page 2 BassX-W10 Owner’ s Manual SAFETY INSTRUCTIONS APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR USAGE CAUTION: To reduce the risk of electric CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH shock, do not remove cover (or back). No WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY. -
Page 3: System Description
The BassX-W10 will provide the excellent performance and reliability that SpeakerCraft products have been recognized for. To receive the best performance from your BassX-W10 System, please carefully read the instructions in this manual. For technical inquires, please call 1-800-448-0976 or e-mail us at techsupport@speakercraft.com. - Page 4 CAUTION • The BassX-W10 is designed to work only with the BBXW10 amplifier. To insure maximum sound quality and performance, use only this amp. • The installation bracket must be aligned accurately in the center of the cut out hole in the drywall. This is to insure proper alignment with the woofer and baffle.
-
Page 5: System Components
SYSTEM DESIGN CONSIDERATIONS • The BassX-W10 System provides accurate bass to any audio system, and is designed so that it will work in conjunction with your other audio components. The BBXW10 amplifier can be connected to any preamplifier or receiver that has low level (line out), speaker (high level) or LFE outputs. -
Page 6: Installing The Subwoofer
Page 6 BassX-W10 Owner’ s Manual 2. Mounting Bracket Installation - Retrofit • Find the studs in the wall using a good stud finder. Locate the exact center between the studs by drilling a small hole as close to center as can be determined. Using a stiff wire (a coat hanger works well) bent to 90º feel for both studs through the hole. - Page 7 BassX-W10 Owner’ s Manual Page 7 Fuse Volume Limit Line Inputs Control AC Plug Cord...
- Page 8 Page 8 BassX-W10 Owner’ s Manual c. Connecting the Audio Inputs • CAUTION: Only make connections when the amplifier is turned off. • Line Level Inputs (Left & Right) - The line outputs from a preamplifier or receiver can be connected to the line level inputs of the BBXW10 with RCA cables.
-
Page 9: Amplifier Operation
(clipping) is audible through the subwoofer, it is being over driven, reduce the volume of the amplifier, or speaker damage may occur! c. Rear Panel Controls • The following controls allow you to blend the sound wave output of the BassX-W10 to the output of the main speak- ers in your system. i. Power Switch The switch marked “Power”... -
Page 10: Troubleshooting
BassX-W10 Owner’ s Manual TROUBLESHOOTING The BassX-W10 Subwoofer System is designed to function trouble-free. Most problems occur because of operating errors. If you have a problem, please check the troubleshooting list first. If the problem persists, contact Tech Support at 1-800-448-0976 or e-mail us at techsupport@speakercraft.com. - Page 11 If this model is no longer available and can not be repaired effective- ly, SpeakerCraft, at its sole option, may replace the unit with a current model of equal or greater value. In some cases where a new model is substituted, a modification to the mounting surface may be required.
- Page 12 Page 12 BassX-W10 Owner’ s Manual SpeakerCraft 940 Columbia Avenue, Riverside, CA 92507 ® (800) 448-0976 Fax (951) 787-8747 www.speakercraft.com LITX3100...
