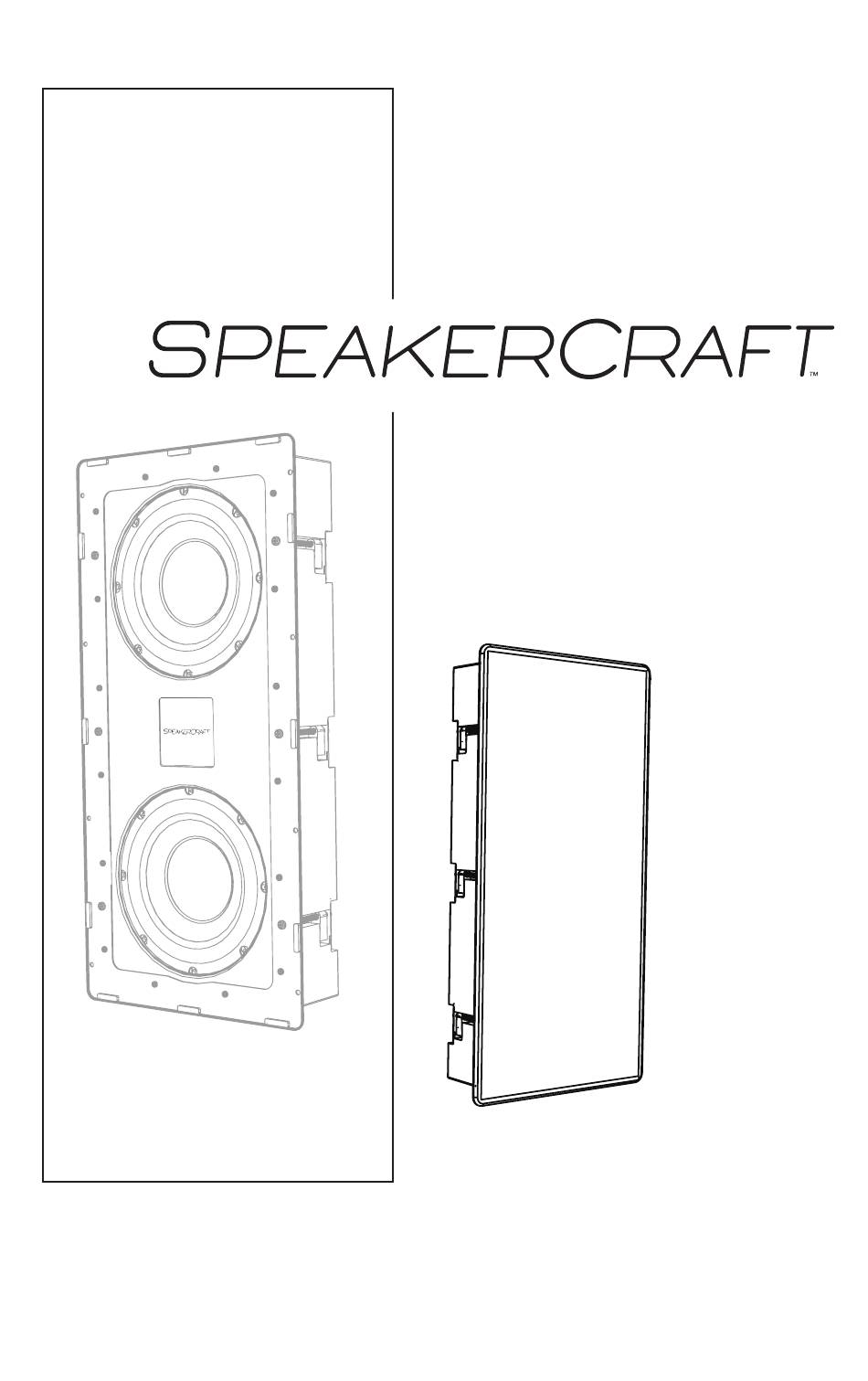

- Page 1 High Resolution Series In-Wall Subwoofer SC-HRSIW8-CAB User's Manual Nortek Security & Control LLC...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions. Keep these Instructions. Heed all Warnings. Follow all Instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 DIMENSIONS . -
Page 4: Introduction
HRSIW8AMP. UNPACKING Your SpeakerCraft subwoofer should reach you in perfect condition. If you do notice any shipping damage, please contact your SpeakerCraft Dealer immediately. Gently lift out the unit and remove all the packing material. It is important to save all the packing materials and the box in case your subwoofer ever needs to be moved or shipped for repair. -
Page 5: Features
To maintain the subwoofer’s finish, first turn off the amplifier and then use a soft dry cloth to clean the grille surface. The grille can be removed to clean it, if required. If your SpeakerCraft subwoofer ever needs servicing, please contact your nearest authorized SpeakerCraft Dealer. -
Page 6: Rear Panel Features
REAR PANEL FEATURES ➊ ➋ ➌ 1. Binding Posts The subwoofer has one pair of binding posts for connection with speaker wire to the output posts of the HRSIW8AMP. Always use high quality connections and speaker wires, and make sure there are no loose fittings or stray wire strands. -
Page 7: Front Panel Features

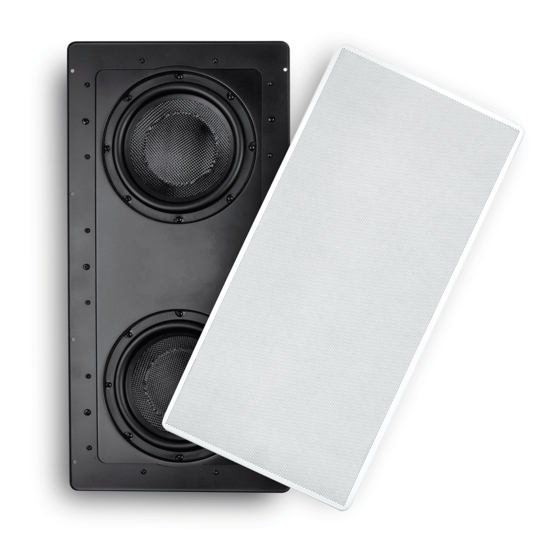

FRONT PANEL FEATURES ➍ ➎ ➍ ➏ ➐ ➑ 4. Woofers The HRSIW8 uses two identical 8 inch custom drivers. 5. Clamp Screws These six screws are used to clamp the loudspeaker in place once it has been pressed into the sheetrock opening of your wall. 6. -
Page 8: Location
Since your SpeakerCraft subwoofer is designed to be professionally installed into your wall, engineering services from your authorized SpeakerCraft dealer and/or outside acoustical resources should be considered to ensure optimum performance. -
Page 9: Center Location
Locating the subwoofers on the front wall, with one towards each corner will provide more flexibility in crossover points, without causing localization that can happen with subwoofers located on side and rear walls. SpeakerCraft pre-amplifiers and receivers feature multiple subwoofer outputs for these applications. If your preamplifier has a single sub/LFE output, use a Y cable to split it into two outputs, one for each amplifier. -
Page 10: Location
LOCATION Speaker Level connections The amplifier’s speaker level outputs can accept speaker wires with banana, dual- banana, bare wire, pins or spade terminals. If you have banana type connectors on your speaker wire, make sure that you tighten the binding posts before inserting. Make sure that the negative speaker wires never touch the positive wires as this will short out and possibly damage your amplifier. -
Page 11: System Configuration
SYSTEM CONFIGURATION HRSIW8AMP HRS iW 8AM P Connect balanced or unbalanced inputs to the SUB/LFE line-level output of your home theater preamplifier or receiver. HRSIW8 In-Wall Subwoofer Nortek Security & Control LLC... -
Page 12: Subwoofer Installation
SUBWOOFER INSTALLATION Read the details on page 8 to help determine the best position for your subwoofer in the room. The subwoofer can be wall mounted vertically, centered between vertical wall studs. This is the recommended (and easiest) orientation to install. Horizontal mounting into existing construction will most likely mean cutting a vertical stud. -
Page 13: Marking And Cutting The Opening
Marking and cutting the opening Choose the best location for your subwoofer, preferably centered between vertical wall studs. Use a stud finder to find where the studs are. Do not position the subwoofer closer than one inch from the cabinet sides to a stud. This allows for the clamps to swing out. -
Page 14: Wiring
Wiring The HRSIW8AMP has two binding posts for connection to the HRSIW8 subwoofer. Install the speaker wires following all local codes for low voltage electrical wiring installation. Use class 2 wiring, and 12 gauge is recommended, 16 gauge is the minimum. -
Page 15: Installing The Subwoofer
Secure the wiring to the loudspeaker’s spring-loaded binding posts, observing the correct polarity. Gently pull on them to make sure they are secure. It is a good idea to secure the wiring from vibration as much as possible. Do not have the weight of the cables hanging on the terminals. -
Page 16: Specifications
SPECIFICATIONS Sealed Cabinet, High Pressure Design. To be Design used with the dedicated HRSIW8 amplifier only. StillBass™ anti-shake technology. Drive Units Dual 8" Woofers with fiberglass cones Connections 1 pair gold plated spring terminals Nominal Impedance 6 ohms (Maximum dimensions, including grille) Height 24 5/8”... -
Page 17: Troubleshooting
TROUBLESHOOTING The HRSIW8 subwoofer is designed and built to provide years of trouble-free performance. Most problems that occur can usually be solved by checking your setup, or by making sure all components are fully operational. The following information will help you deal with common problems you may experience. If a problem persists, please contact your Dealer for assistance. -
Page 18: Limited 5-Year Warranty
LIMITED 5-YEAR WARRANTY Nortek Security & Control, LLC (“Nortek Security & Control”) warrants to the original retail purchaser only that this product will be free of manufacturing defects in material and workmanship for the following periods and subject to the limitations and exclusions set forth below: 5-Year Warranty This warranty is not transferable to subsequent purchasers of the product. - Page 19 5919 Sea Otter Place, Suite 100 Carlsbad, CA. 92010 USA & Canada Toll Free (800) 421-1587 or dial (760) 438-7000 www.SpeakerCraft.com Copyright © 2020 Nortek Security & Control LLC 10030922 Rev-A...
