RAIS Q-BIC User Manual

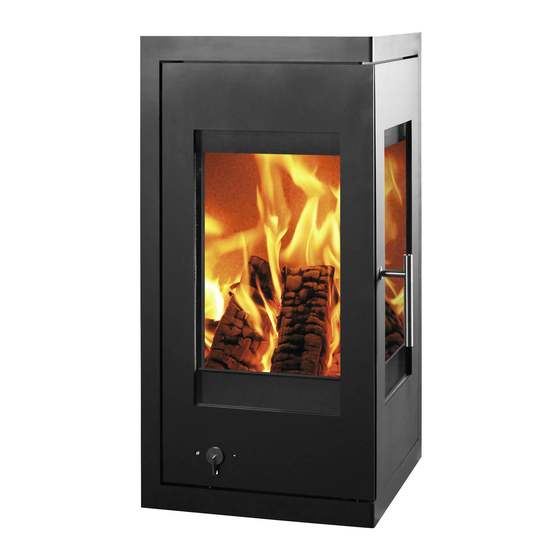

Rais q-bic; q-bic insert wood burning stove

Hide thumbs Also See for Q-BIC:

Instructions for installation, use and maintenance manual (38 pages)

Instructions manual (40 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Q-BIC and is the answer not in the manual?

Questions and answers

Mike kirkham

March 31, 2025

How can I get parts to fix the door on our Panorama BIC stove?

1 comments:

Mr. Anderson

March 31, 2025

You can obtain parts to fix the door on a RAIS Q-BIC stove by purchasing replacement spare parts from your RAIS distributor or stockist. Only use spare parts recommended by RAIS to maintain the warranty. Refer to the spare parts diagrams for the RAIS Q-BIC to identify the correct parts.

This answer is automatically generated

Summary of Contents for RAIS Q-BIC

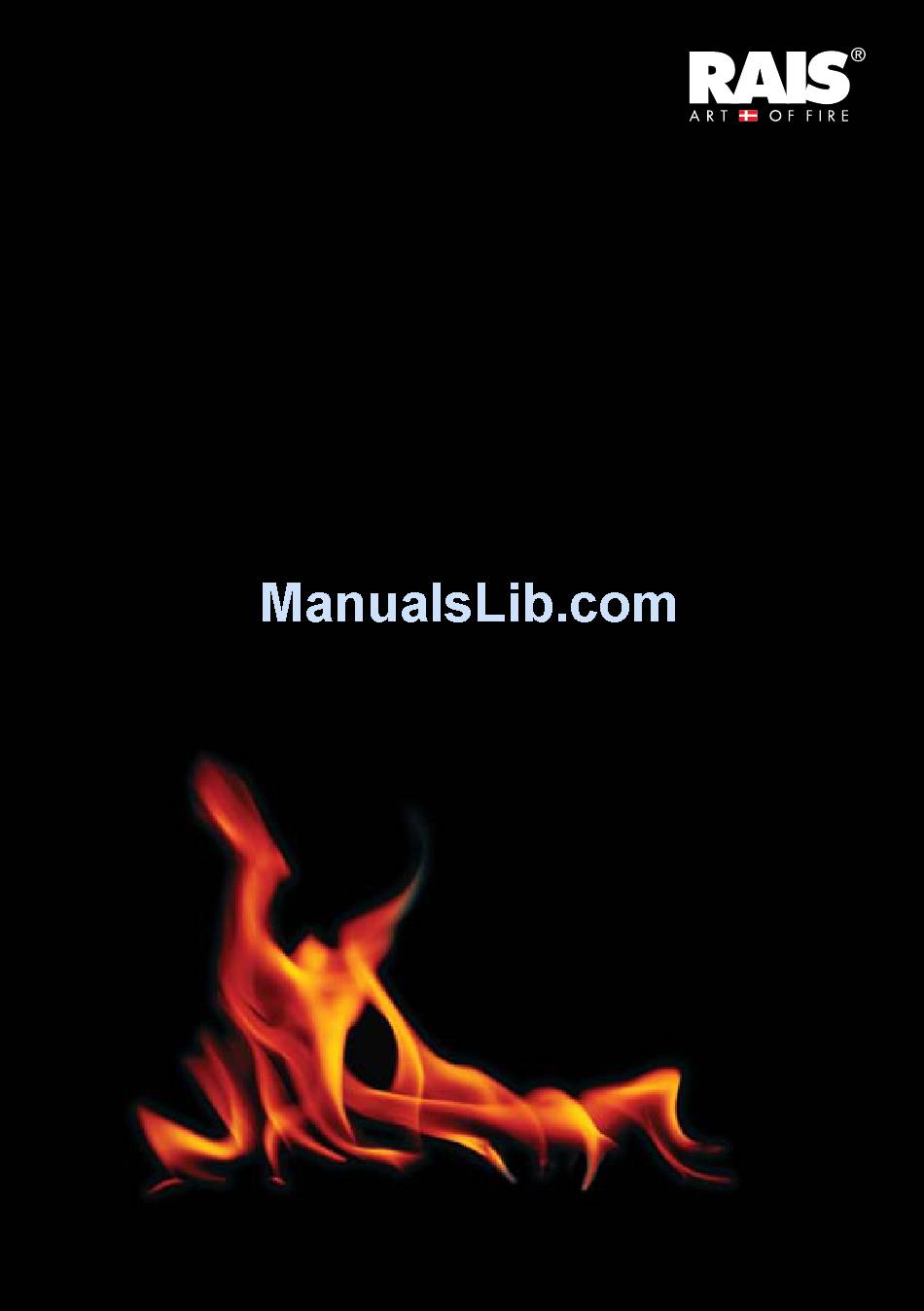

Page 1 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert U S E R M A N U A L RAIS Q-BIC & RAIS Q-BIC INSERT...
Page 3: Table Of Contents
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert RAIS Q-BIC RAIS Q-BIC insert Date: March 2008 Modified: C INTRODUCTION ..........................4 WARRANTY ............................4 SPECIFICATIONS ........................... 5 CONVECTION ............................6 INSTALLATION INSTRUCTIONS ......................7 CHIMNEY ............................8-9 INSTALLATION ............................ 10 INSTALLATION OF Q-BIC INSERT ....................
Page 4: Introduction
HETAS Ltd as an intermittent operating appliance for burning wood logs only. A RAIS wood burning stove is more than just a heat source: it also shows that you care about design and quality in your home. To make the most of your wood burning stove it is important that you read the manual thoroughly, before installing and using it.
Page 5: Specifications
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Specifications...
Page 6: Convection
The heated air pours out at the top of the stove, which ensures a circulation of warm air throughout the room. The stoves are equipped with a “cold” lever – RAIS special feature – which means you could almost do away with gloves. Be aware, however, that all exterior surfaces become...
Page 7: Installation Instructions
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Installation instructions The following pages give instructions for the safe and proper installation of this heating ap- pliance in the UK. These instructions cover the basic principles of installation, although detail may need slight modification to suit particular local site conditions.
Page 8: Chimney
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Chimney The chimney is the driving force which makes the stove function. In order for the stove to perform satisfactorily the chimney height must be sufficient to ensure the correct draught of 14 to 18 Pa so as to clear the products of combustion and prevent problems of smoke emanating into the room when firing.
Page 9: Chimney
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert If it is found that there is excessive draught in the chimney then either an adjustable flue damper or alternatively a draught stabiliser should be fitted. The adjustable flue damper should not close off the flue entirely but should in its closed position leave a minimum continuous opening free area of at least 20 % of the total cross sectional area of the flue or fluepipe.
Page 10: Installation
When you choose where to set up your RAIS wood burning stove, you should consider the heat distribution to the other rooms. This will enable you to get the best use out of your stove.
Page 11 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert...
Page 12: Installation Of Q-Bic Insert
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Installation instructions - Q-BIC insert First loosen the screw in upper right corner and the screw in lower left corner (both door side) - do not onscrew entirely - now it’s possible to remove the insert from the cassette.
Page 13 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Assembly the topplate with the following self-drilling screws. By a brick wall: The outermost part of the upper covering is broken off before it is assembled with the two screws. The top plate is not used NB!! A 30°...
Page 14 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Fitting hole for brick wall Fitting holes for angle brace for panelled wall. ATTENTION!! Important that the cassette is posotion in 90° angel and levelled both horizontal an vertical.
Page 15 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Assembly the stove in cassette Lift the stove up onto the base plate and place it as shown in the picture on the left. NB!! Basic settings on the adjusting bolts are approx. 32.5 mm (between the bottom of the stove's base and the base plate on the internal box).
Page 16 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Push the insert until the front is in level with the wall. Afterwards push the insert from the other side until it is in level with the other wall. The screws - in upper right corner and lover left corner - you started loosen (page 8), is fastened.
Page 17 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert...
Page 18 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Q-BIC insert Brick and panelled wall Mounting distance for panelled wall NB!! - combustible material OBS!!! Hullerne i bunden må (insulation ability such as Aqua panel Do not cover the ikke dækkes til.
Page 19 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Mounting distance for brick wall / firewall...
Page 20: Installation Distance In Case Of Non-Combustible Wall
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Installation distance in case of non-combustible wall We recommend a minimum distance to non-combustible material of 50 mm (F) for cleaning considerations. It should always be possible to access the accessdoor.
Page 21: General Installation
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Normal set-up (right-angle) secure base A. Distance to furniture 750 mm Distance to flammable materials: - in front (floor) 300 mm C. - to the side (floor) 150 mm D. - to the rear (floor)
Page 22: Corner Installation 45
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Corner set-up 45° fixed socket A. Distance to furniture 750 mm Distance to flammable materials: B. - in front (floor) 300 mm C. - to the side (floor) 150 mm D. - to the rear (wall) 200 mm E.
Page 23: For The Installer
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert For the Installer Finally before firing the stove for the first time a check should be made to ensure that the assembly and stove installation has been satisfactory and that there are no leaks in any seals in the appliance and appliance connections to the chimney.
Page 24: Operating Instructions
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Operating instructions Please note that HETAS Approval only covers the use of wood in the stove and approval does not cover the use of other fuels either alone or mixed with other fuels, nor does it cover instructions for the use of other fuels.
Page 25: Drying And Storage
2-3 days before you need it. Regulating the combustion air All RAIS stoves are equipped with a one-handed operating lever for regulating the damp- er. The stove-specific regulating mechanisms can be seen on the diagrams. Primary air is the combustion air added to the primary combustion zone, i.e. the bed of glowing embers.
Page 26: Using The Wood Burning Stove
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Using the wood burning stove Adjustment of the air damper. The damper has 3 settings. RAIS Q-BIC Position 1 The air damper is closed, which means no air supply. Position 2 Push the handle to the left, to wher the marking is.
Page 27: Control
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert RAIS Q-BIC insert Position 1 The air damper is closed, which means no air supply. Position 2 Push the handle to the left, to wher the marking is. This position gives full secondary air.
Page 28: First Usage
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert First usage A careful start pays off. Start with a small fire, so that the wood burning stove can get accus- tomed to the high temperature. This gives the best start and any damage is avoided.
Page 29: Lighting And Fuelling
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Lighting and fuelling To light the stove, use alcohol briquettes or similar, as well as approx. 2 kg of firewood, split into kindling sticks. Set the air damper to the fully open position.
Page 30 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert When the flames are clear - after approx. 5-10 min. - close the door. Damper - see adjustment of air damper. After approx. 10-20 min. - when you have a good bed of glowing embers - add 2-3 pieces of wood.
Page 31: Cleaning And Care
- Moisten a piece of paper or newspaper, dip it in the ash, and rub the sooty glass with - Now rub with a piece of paper and the glass will become clean. - As an alternative you can use glass polish, which you can buy from you RAIS distributor. Clean the exterior with a dry sponge.
Page 32: Cleaning Of The Flue Ways
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Cleaning of the flue ways The fixing clips are pushed up and removed from the ska- mol on the side. The fixing clips is placed in the top right corner of the firebox.
Page 33: Interruption Of Operation
- leaky chimney - leakage between chimney and flue If your stove continues to malfunction, we recommend that you contact your RAIS dis- tributor or chimney sweep. IMPORTANT!! To ensure safe burning there must be clear yellow flames or clear embers at all times.
Page 34: Accessories And Spare Parts
RAIS - manual for Q-BIC & Q-BIC insert Accessories and spare parts If spare parts other than those recommended by RAIS are used, the warranty is voided. All replaceable parts can be bought as spare parts from your RAIS distributor.
Page 35 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert...
Page 36: Spare Parts Diagrams Q-Bic 127
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Spare parts diagram - RAIS Q-BIC 127 Pos. Number Item no./description 706060290 / 95 Top plate 706010490 / 95 Steel back panel 706010590/95 Fixed window 706010190 / 95 Steel side panel...
Page 37 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert...
Page 38: Spare Parts Diagrams Q-Bic Insert
ENGLISH RAIS - manual for Q-BIC & Q-BIC insert Spare parts diagram - RAIS Q-BIC insert Pos. Number Item no. / description 707170190/95 Complete front 706010590/95 Fixed window 7061090/95 Door 7060905sv Handle for air control 7061301 Smoke connector 7062200 Set of skamol stones 7071301SV Complete smoke connector - 45°...
Page 39 ENGLISH RAIS - manual for Q-BIC & Q-BIC insert...
Page 40 RAIS A/S Industrivej 20 DK-9900 Frederikshavn www.rais.dk...

This manual is also suitable for:

Q-bic insert
