Rolls RM424 Quick Start Manual

OPERATION AND SET UP

REMOTE VOLUME

CH.2
WIPER
+15
The remote volume section on the rear panel of the RM424 allows the installer to place remote vol-
ume controls in any or all of the zones connected to the RM424. Wiring information is silk screened
above each remote volume connector.
Q: Does the remote volume wire carry audio signal?
A: No, the remote volume wire only carries a DC control voltage that varies according to the position
of the remote volume pot (10-100K Ohm linear potentiometer recommended) . Use of the remote
volume feature will not introduce any noise or cause any signal loss.
Q: What is the maximum length that I can run a remote volume wire?
A: Wire size can affect the maximum length. You can run up to 200 feet reliably, and with high quality
wire up to 1000 feet.

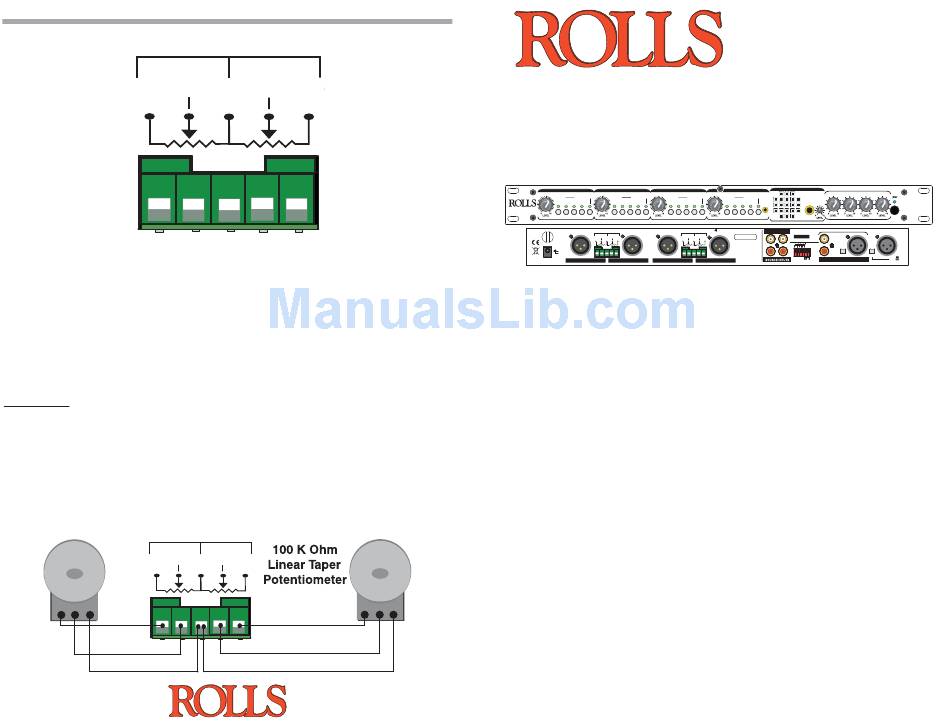

Below is a diagram of how to connect the pots to the remote volume Phoenix connectors.
REMOTE PAD: 5 pin Phoenix connector for connection to a remote potentiometer for remote volume
control. A 100K Ohm audio taper potentiometer is recommended (others will work).
+15: Connection to potentiometer.
WIPER: Connection to potentiometers wiper (middle pin).
COMM: Common Ground for connection to pots.
As a note: If the potentiometer pad is working opposite of what you intended just reverse the wires
going to that potentiometer.
REMOTE VOLUME
CH.4
WIPER
+15
CH.1
WIPER
COMM. +15
CH.3
WIPER
COMM. +15
ROLLS CORPORATION
SALT LAKE CITY, UTAH
MIC 1
ZONE
MONITOR
1 2 3 4
www.rolls.com
OUTPUT 4
+
- VDC
PS27s
ZONE FOUR
SPECIFICATIONS
Input Impedance:
Output Impedance:
Max Input Level:
Phantom Power:
Input Connectors:
Outputs:
Max Gain:
S/N Ratio:
THD:
IMD (SMPTE):
CMRR:
Frequency Response:
Power Adapter:
Weight:
Size:
NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWLEDGE OF
AUDIO ELECTRONICS, BALANCED AND UNBALANCED CONNECTIONS, AND
PROPER SIGNAL LEVEL SETTINGS. FOR PROPER SETUP AND USE CONTACT
YOUR DEALER.
ROLLS CORPORATION
5968 South 350 West
Salt Lake City, UT 84107
Phone (801) 263-9053
FAX (801) 263-9068
01/13
www.rolls.com

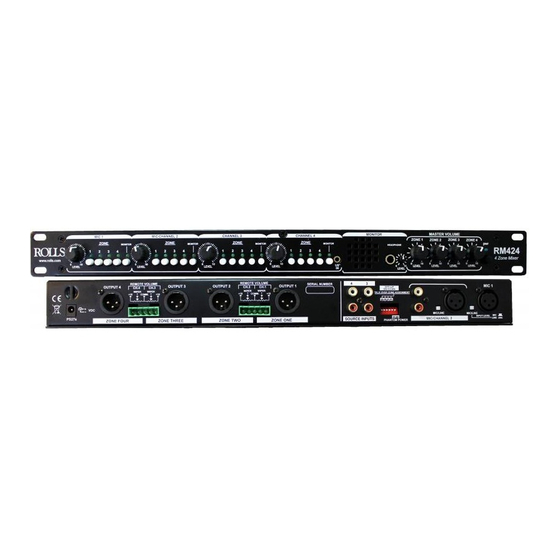

RM424
4 Zone Mixer
MIC/CHANNEL 2 CHANNEL 3 CHANNEL 4
ZONE ZONE
ZONE
MONITOR MONITOR MONITOR
1 2 3 4 1 2 3 4 1 2 3 4
1/8"
IN
REMOTE VOLUME REMOTE VOLUME 4
SERIAL NUMBER
OUTPUT 3 OUTPUT 2 OUTPUT 1
CH.4 CH.3 CH.2 CH.1
WIPER WIPER WIPER WIPER
+15 +15
COMM. +15 COMM. +15
ZONE THREE ZONE TWO ZONE ONE
10K Ohms balanced Line
600 Ohms balanced Mic
10K Ohms unbalanced RCA
50 Ohms balanced XLR
Mic: -30 dB
Source: +22 dB
+48 Volts DC
XLR and RCA
4 ea. XLR
60 dB mic
30 dB line
>75 dB
< .3%
< .3%
60 dB
20Hz to 20kHz +/- 0 dB
15VDC
7 lbs (3KG)
19" x 1.75" x 6.5"
(48cm x 4.5cm x 17cm)
MASTER VOLUME
MONITOR
ZONE 1 ZONE 2 ZONE 3 ZONE 4
HEADPHONE
RM424
4 Zone Mixer
3
MIC 1
OFF=UP
ON=DOWN
TALK OVER ZONE ASSIGNMENT
1 2 3 4
MIC/LINE MIC/LINE
MIC
INPUT LEVEL
MIC/CHANNEL 2 LINE
PHANTOM POWER

Quick Start Guide
