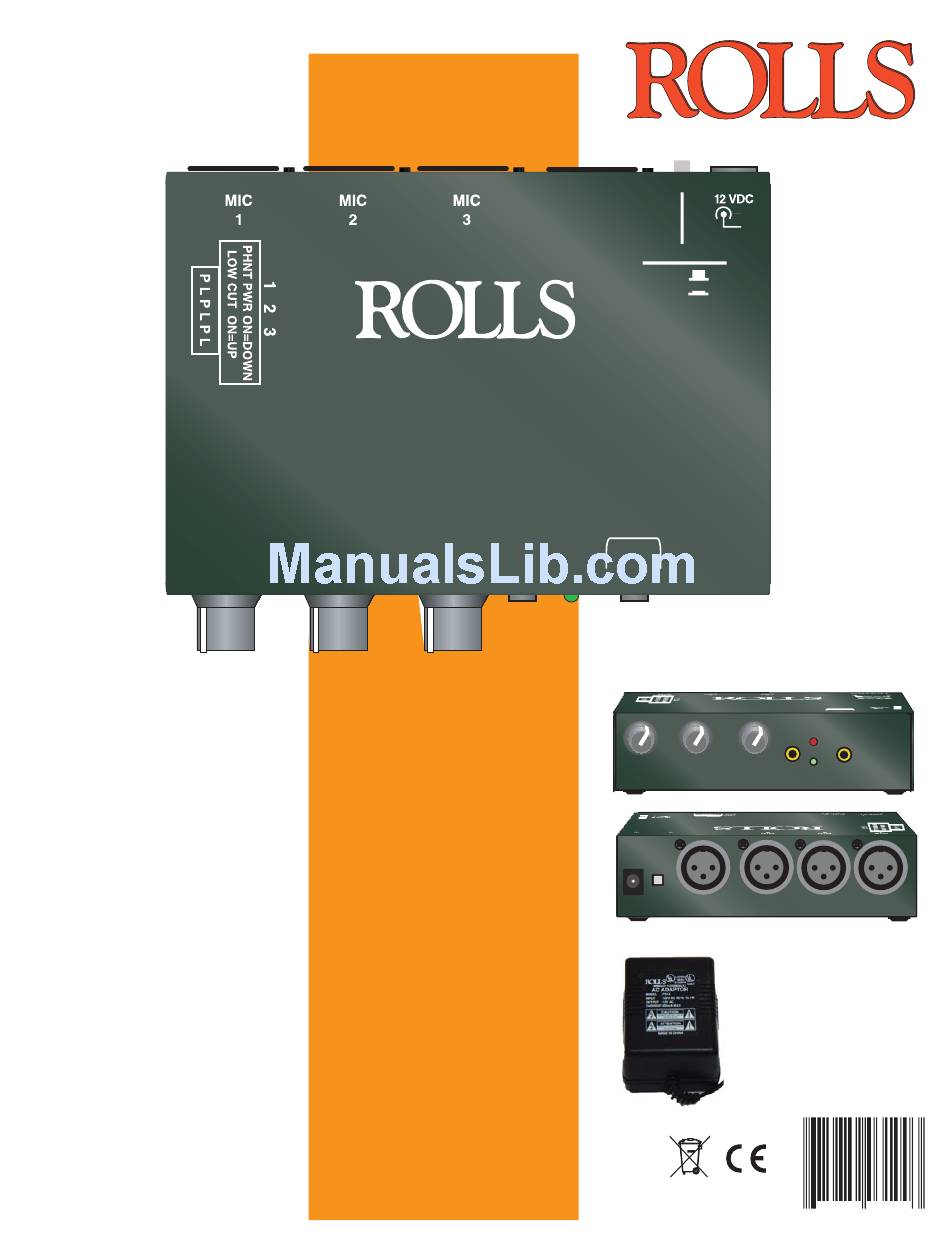

Rolls MX310 Datasheet

MSRP: $125.00 USD
3 Channel Mic Mixer with Phantom Power
The new MX310 is a 3 channel mono
microphone mixer. It has individualy
switchable phantom power for each
channel and individualy switchable low
cut filters for each channel. The MX310
also features a 3.5mm (1/8") headphone
output jack for monitoring. The MX310
is built in an all metal chassis and
weighs 1 pound. Overall dimension are
5.25" X 3.75" X 1.5". Bottom mounts are
provided for permanent installations.
The MX310 ships with an included 12
VDC external power supply. The output
XLR of the MX310 is switchable for mic
or line level output to make the MX310
match up to almost any appliction.
SPECIFICATIONS
Input Impedance: 600 Ohms
Output Impedance: 600 Ohms
Voltage Gain: 50 dB Line/10 dB Mic
Maximum Supply Voltage: 16 VDC
THD: .05% typical
Bandwidth: 20Hz - 20 kHz
Size: 5.25" x 3.75" x 1.5"
Weight: 1 lb.
MX310
www.rolls.com
MorMics
Three Channel Microphone Mixer
CH 1 CH 2
LEVEL LEVEL
ROLLS ROLLS
MorMics MorMics
3 Channel Mono Mic Mixer
Individual Phantom Power
Headphone Output
Mic/Line Output Switch
ROLLS
5968 SOUTH 350 WEST S.L.C.,UT 84107
PHONE: 801-263-9053
FAX: 801-236-9068
DATA SHEET FOR MX310
