Rolls RM169 Quick Start Operation Manual

USING THE MIC EFFECTS INSERT
In order to add effects to the microphone signal, an insert cable is needed. The Tip of the
plug acts as the Send, the Ring is the Return.
Connect the insert cable's TRS end to the Mic FX Insert jack on the rear of the RM169.
Connect the Tip connection to your effects processor's Input jack, and the Ring connec-
tion to the Output of the effects processor. The RM169 effects insert is mono, so if the
effects processor is stereo - choose a Mono output. You may need to refer to your effects
processor owners manual for more information about operating it in mono.
Make sure a microphone is properly connected to the RM169 and the unit is on. Speak
into the microphone and adjust the levels of your effects processor for the desired pro-
cess and level of effect.
www.rolls.com
Rolls Corporation
Salt Lake City, UT
MADE IN USA
www.rolls.com
ROLLS
15 VDC
MADE IN USA +
-
www.rolls.com
MODEL RM169
MADE IN USA
9/19
RM169

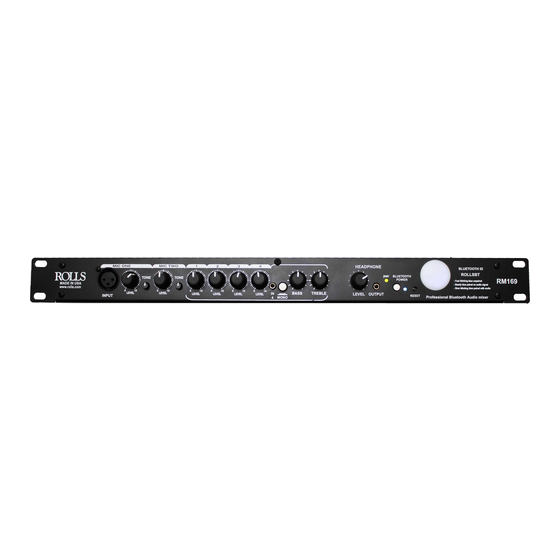

Professional Bluetooth Mixer
MADE IN USA
www.rolls.com
ROLLS
15 VDC
MADE IN USA +
-
www.rolls.com
MODEL RM169
MADE IN USA
IN LEVEL OUTPUT
4 MONO
MAIN OUTPUTS SPECIFICATIONS
Input Impedance:
Max Input Level:
Headphone Output Impedance:
Total - In/Out Connectors:
Phantom Power:
Output Level:
Output Impedance:
Max Gain:
Tone Controls:
Noise Floor:
S/N Ratio:
Size:
Weight:
QUICK START OPERATION GUIDE
IN
MONO
4
MAIN OUTPUTS
HEADPHONE
BLUETOOTH ID
ROLLSBT
BLUETOOTH
POWER
- Fast blinking blue unpaired
- Steady blue paired no audio signal
- Slow blinking blue paired with audio
RESET
Professional Bluetooth Audio mixer
PHANTOM POWER
Mic: 600 Ohms XLR balanced
ON=DOWN
OFF=UP
Source: 22K Ohms RCA
Mic Insert: 22K Ohms 1/4" TRS insert
Mic: -14 dBV Mic level
Source: 24 dBV
>8 Ohms
5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm
+15 VDC
+17 dBV max
100 Ohms Balanced
Mic: 60 dB
Source: 26 dB
+/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
- 80 dB, THD: <.025%,
96 dB
19" x 1.75" x 4" (48.3 x 4.5 x 10 cm)
5 lbs. (2.3 kg)
HEADP
LEVEL O
RM169
