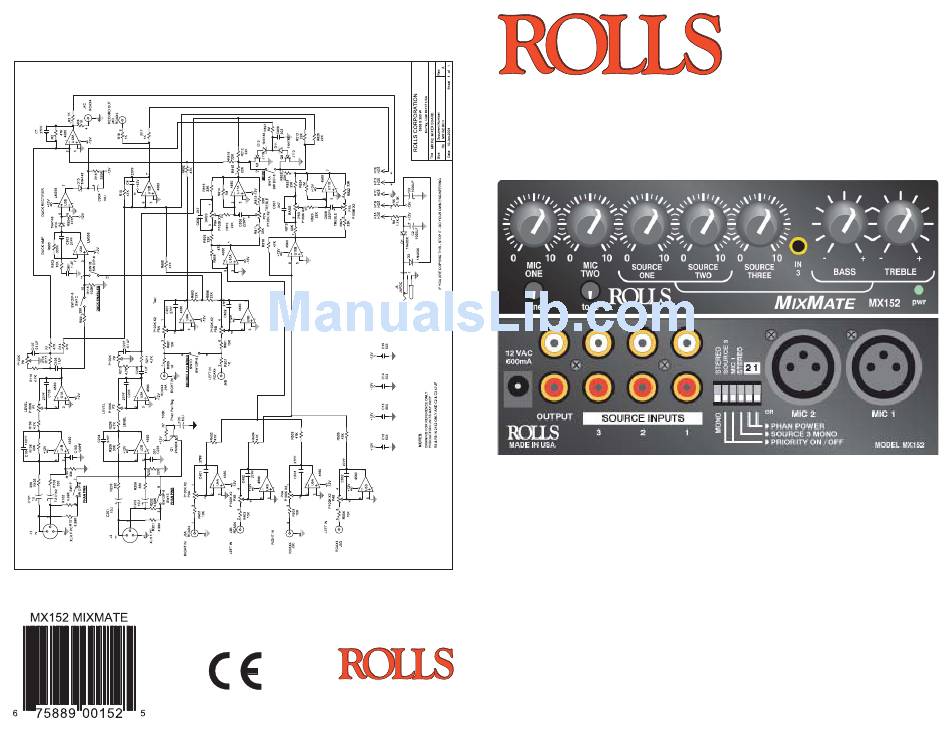

SCHEMATIC
SPECIFICATIONS
Input Impedance: Mic:
Max Input Level: Mic:
Connectors:
Phantom Power:
Max Gain:
Tone Controls:
Noise Floor:
S/N Ratio:
Priority Attenuation:
Power:
Size:
Weight:
ROLLS CORPORATION
SALT LAKE CITY, UTAH
6/04

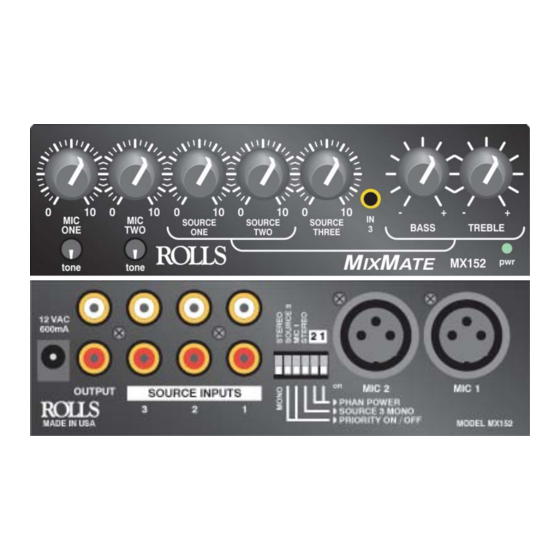

MX152 MixMate
Mic/Line Mixer
600 Ohms XLR balanced
Source:
22K Ohms RCA
-14 dBV Mic level Max
Source:
24 dBV
2: XLR, 8: Stereo RCA
+12 VDC
Mic:
60 dBV
Source:
26 dBV
+/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
- 80 dB
96 dB
60 dB
12VAC / 600 mA
5.4" x 1.7" x 5.5"
2 lbs
Owners Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rolls MixMate MX152
Summary of Contents for Rolls MixMate MX152
- Page 1 Noise Floor: S/N Ratio: Priority Attenuation: Power: Size: Weight: ROLLS CORPORATION SALT LAKE CITY, UTAH 6/04 MX152 MixMate Mic/Line Mixer 600 Ohms XLR balanced Source: 22K Ohms RCA -14 dBV Mic level Max Source: 24 dBV 2: XLR, 8: Stereo RCA...
- Page 2 INTRODUCTION Thank your for your purchase of the Rolls MX152 MixMate. The MX152 is a two micro- phone, three source stereo mixer designed for restaurants, schools, churches, clubs etc. The unit provides a compact and effi cient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones.
