Rolls RM67 Quick Start Manual

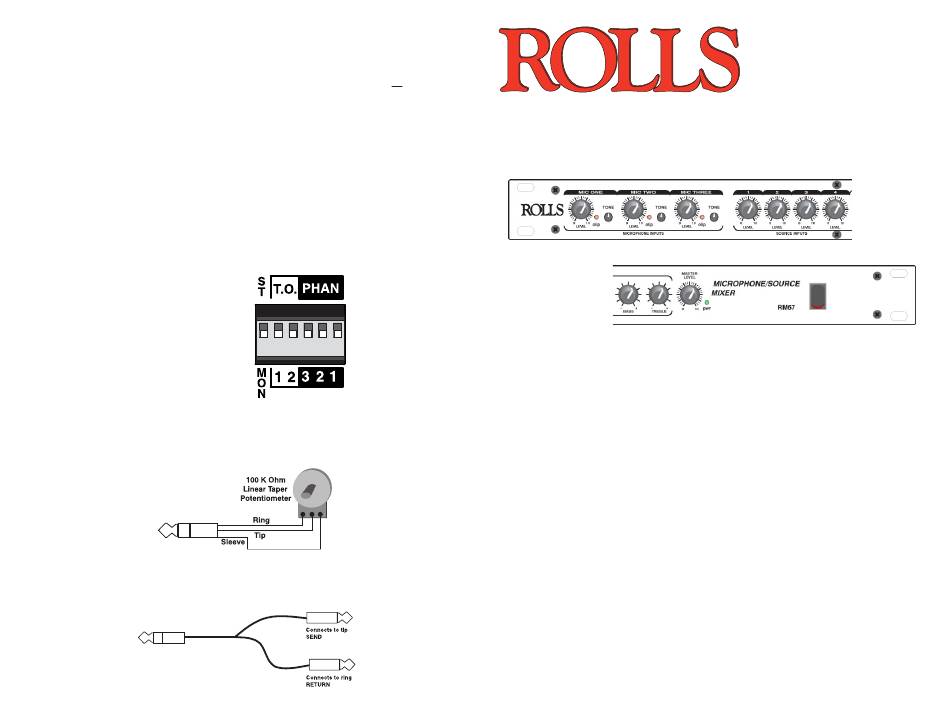

DIP SWITCH SETTINGS
- If a microphone requires phantom power, move the Mic channel's corresponding
PHAN DIP switch to the down position. This applies 12 volts dc phantom power to the
indicated microphone.
- Talkover switch 1 (T.O. 1), when in the down position, all program material on all
source inputs will be "ducked" or muted when a signal is present at Mic 1. NOTE: MIC
ONE WILL NOT TALK OVER MIC2 OR MIC3. ONLY THE SOURCE INPUTS WILL BE TALKED
OVER. This function is used for paging.
- Talkover switch 2 (T.O. 2), when in the down position, Source 1,2, and 3 will be
"ducked" or muted by the signals at Source 4.
This function is for jukebox priority. With a jukebox connected to Source input 4, and
the Talkover switch 2 on (down), the other Source input signals such as background
music, will be muted and only the jukebox will be heard.
- The Mono/Stereo switch selects the
output mode. When the switch is up,
the unit is in stereo mode. When the
switch is down, the stereo signals
are mixed to mono and sent to both
the Right and Left Main output jacks.
Either jack can be used as a mono
output.
Remote Volume Control
To control the overall volume of the RM67 in a remote location, wire a 100K ohm Linear
Taper potentiometer to a 1/4" Tip-Ring-Sleeve plug as shown here.
Mic Insert
To connect a signal processor to the RM67 microphone signal(s), use an insert plug, or
cable wired as shown here.
To Mic Insert
ROLLS CORPORATION SALT LAKE CITY, UTAH 03/20
TO #1 - MIC
TO #2 - PRIOTIRY #4
RM67

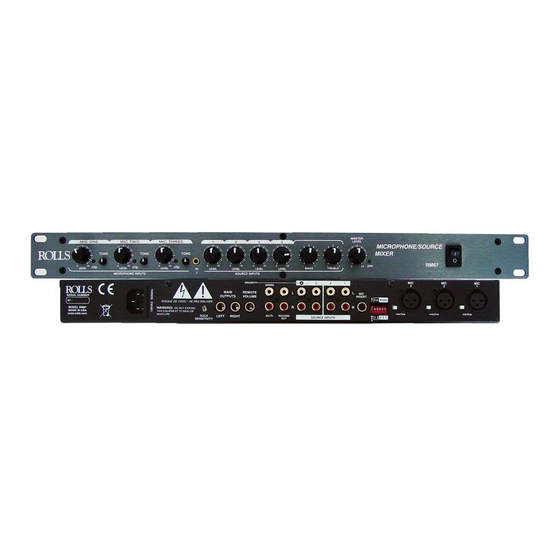

Mic/Source Mixer
SPECIFICATIONS
Input Impedance:
Max Input Level:
Connectors:
Phantom Power:
Output Level:
Output Impedance:
Max Gain:
Tone Controls:
Nose Floor:
Size:
Weight:
NOTE: THIS GUIDE ASSUMES THE USER HAS A WORKING
KNOWLEDGE OF AUDIO ELECTRONICS, BALANCED AND
UNBALANCED CONNECTIONS, AND PROPER SIGNAL LEVEL
SETTING.
Mic: 600 Ohms XLR balanced
Line: 22K Ohms
Source: 22K Ohms gold plated RCA
Mic Insert: 22K Ohms 1/4" TS unbal.
Mic: -14 dBV Mic level
+20 dB Line levl
Source: 24 dBV
3: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4" TS, 1: 3.5mm
+12 VDC
+17 dBV max
51 Ohms
Mic: 60 dB
Source: 26 dB
+/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
- 80 dB, THD: <.025%, S/N Ratio: 96 dB
19" x 1.75" x 6" (48.3 x 4.5 x 15 cm)
5 lbs. (2.3 kg)
Quick Start Guide
