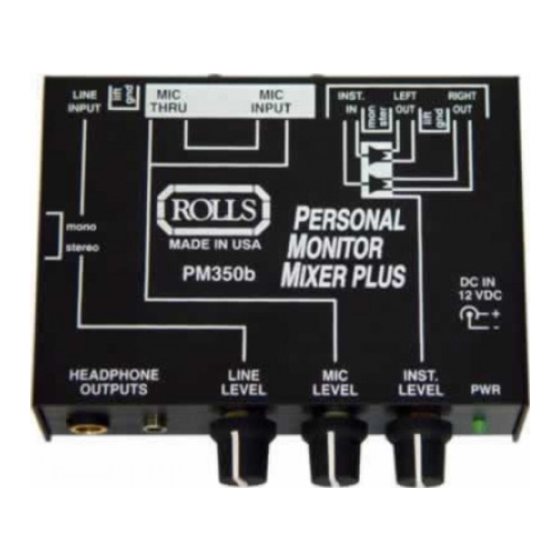

- Page 1 PM350b Personal Monitor Mixer Plus LINE INST. LEFT RIGHT THRU INPUT INPUT ERSONAL mono ONITOR stereo IXER PLUS PM350b DC IN 12 VDC HEADPHONE INST. LINE OUTPUTS LEVEL LEVEL LEVEL Owners Manual...
- Page 2 INTRODUCTION Max Input Level: -20 dB XLR, +40 dB Line, +15 dB Instrument Thank you for your purchase of the PM350b Personal Monitor Mixer Plus. Inst. Input Impedance: 50K ohms This unit mixes a microphone signal with a 1/4" Tip-Ring-Sleeve stereo or Inst.
- Page 3 "phantom power" the PM350. See the OPERATION section for details. DC IN 12 VDC: For connection to the external Rolls PS27 power adapter. HEADPHONE OUTPUTS:1/4" Stereo jack, and 1/8" stereo jack for connection to stereo headphones or earphones.
- Page 4 INPUT INPUT powered by standard 48 Volt Phantom Power supplied by mixers, phantom power adapters etc. The current (amperes) is insufficient to power the PM350b. Also, any voltage greater than 16 VDC will damage the unit. ERSONAL mono ONITOR stereo...
