LIMITED WARRANTY
This product is warranted to the original consumer purchaser to be free
from defects in materials and workmanship under normal installation, use and
service for a period of one (1) year from the date of purchase as shown on the
purchaser's receipt.
The obligation of Rolls Corporation under this warranty shall be limited
to repair or replacement (at our option), during the warranty period of any part
which proves defective in material or workmanship under normal installation,
use and service, provided the product is returned to Rolls Corporation, TRANS-
PORTATION CHARGES PREPAID. Products returned to us or to an authorized
Service Center must be accompanied by a copy of the purchase receipt. In the
absence of such purchase receipt, the warranty period shall be one (1) year from
the date of manufacture.
This warranty shall be invalid if the product is damaged as a result of
defacement, misuse, abuse, neglect, accident, destruction or alteration of the se-
rial number, improper electrical voltages or currents, repair, alteration or mainte-
nance by any person or party other than our own service facility or an authorized
Service Center, or any use violative of instructions furnished by us.
This one-year warranty is in lieu of all expressed warranties, obligations
or liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILI-
TIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED IN DURATION TO THE ONE YEAR DURATION OF
THIS WRITTEN LIMITED WARRANTY. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to
you.
IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL, INCI-
DENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, WHATSOEVER.
Some states do not allow the exclusion or limitation of special, incidental or con-
sequential damages so the above limitation or exclusion may not apply to you.
This warranty gives you specifi c legal rights, and you may also have other rights
which vary from state to state.
ROLLS CORPORATION
SALT LAKE CITY, UTAH
02/08
MA2152

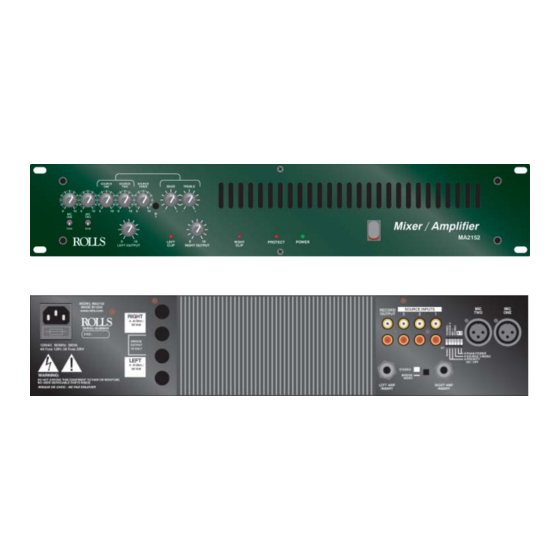

Mixer / Amplifi er
OWNERS MANUAL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rolls MA2152 - MANUAL 2
Summary of Contents for Rolls MA2152 - MANUAL 2
- Page 1 (at our option), during the warranty period of any part MA2152 which proves defective in material or workmanship under normal installation, use and service, provided the product is returned to Rolls Corporation, TRANS- Mixer / Amplifi er PORTATION CHARGES PREPAID. Products returned to us or to an authorized Service Center must be accompanied by a copy of the purchase receipt.
- Page 2 INTRODUCTION MIXER SECTION Thank your for your purchase of the Rolls MA2152 Mixer / Amplifi er. The MA2152 is a two rack space mixer amplifi er designed for restaurants, schools, churches, clubs etc. The unit provides a compact and effi cient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones.
- Page 3 SPECIFICATIONS DESCRIPTION MIXER FRONT PANEL Input Impedance: Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Insert: 22K Ohms 1/4” TS unbal. Max Input Level: Mic: -14 dBV Mic level Max Source: 24 dBV Insert: 24 dBV Connectors: 2: XLR, 8: Stereo RCA, 3: 1/4” TRS, 1: Stereo 3.5 mm 4: Binding posts Phantom Power: +12 VDC...
- Page 4 CONNECTION OPERATION Inputs DIP SWITCH SETTINGS (From left to right) Connect low impedance microphones to the Mic inputs. If a paging microphone • If a microphone requires phantom power, move the Mic channel’s correspond- is being used, connect it to Mic Input 1 so it may be used with the Talk Over ing PHANTOM POWER switch to the on position.
