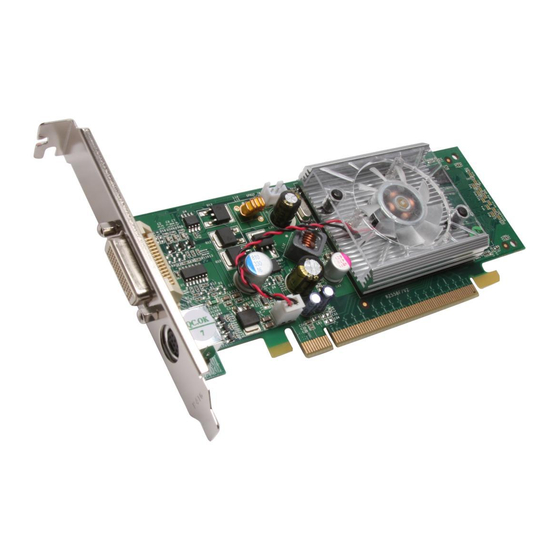

Jaton NVIDIA GeForce PX8000 User Manual

Jaton NVIDIA GeForce PX8000 User Manual

Video-px8000/px558/558pci series nvidia geforce 8000 series
Table of Contents

Advertisement

Video-PX8000/PX558/558PCI series
NVIDIA GeForce™ 8000 series
User's Manual
Version 13.00
1
C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVIDIA GeForce PX8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jaton NVIDIA GeForce PX8000

  • Page 1 Video-PX8000/PX558/558PCI series NVIDIA GeForce™ 8000 series User’s Manual Version 13.00 C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 2: Table Of Contents

    Video-PX8000/PX558/558PCI series Contents INTRODUCTION ................. 5 FEATURES AND SPECIFICATIONS ......... 6 NVIDIA® : ..........6 UNIFIED ARCHITECTURE ™ T :............6 HREAD ECHNOLOGY ® D X® 10 S :........6 ICROSOFT IRECT UPPORT NVIDIA® SLI™ T 1: ............ 6 ECHNOLOGY NVIDIA®...
  • Page 3 Video-PX8000/PX558/558PCI series ..............9 PERATING YSTEMS ................9 OMPATIBILITY SYSTEM REQUIREMENT ............10 CHECK LIST ................10 HARDWARE DESCRIPTION............ 12 -PX8400GS-EX ..............12 IDEO -PX558-TWIN / V -PX628-T ........12 IDEO IDEO -PX558-DT / V -PX628-DT ......... 13 IDEO IDEO -PX558-DLP ..............
  • Page 4 Video-PX8000/PX558/558PCI series ® 7 ....... 25 INDOWS ISTA RIVER NSTALLATION ® XP D ........28 INDOWS RIVER NSTALLATION TECHNICAL ASSISTANCE............31 ..............33 ECHNICAL UPPORT .......... 33 OW TO BTAIN ARRANTY ERVICE LIMITED WARRANTY .............. 36 : ............37 RADEMARK AND OPYRIGHT ................
  • Page 5: Introduction

    Video-PX8000/PX558/558PCI series Introduction The GeForce® 8000 series graphics processing units (GPUs). Offering unprecedented processing power and unparalleled levels of graphics realism and special effects, the only other “un” that comes to mind is “unbelievable”! Based on the revolutionary new NVIDIA® GeForce® 8 graphics architecture, the GeForce®...
  • Page 6: Features And Specifications

    Video-PX8000/PX558/558PCI series Features and Specifications Video- PX8000/PX558/558PCI series NVIDIA® unified architecture: Fully unified shader core dynamically allocates processing power to geometry, vertex, physics, or pixel shading operations, delivering up to 2x the gaming performance of prior generation GPUs. GigaThread™ Technology: Massively multi-threaded architecture supports thousands of independent, simultaneous threads, providing extreme processing efficiency in advanced, next generation shader...
  • Page 7: 128-Bit Floating Point High Dynamic-Range (Hdr) Lighting

    Video-PX8000/PX558/558PCI series 128-bit Floating Point High Dynamic-Range (HDR) Lighting: Twice the precision of prior generations for incredibly realistic lighting effects-now with support for anti-aliasing. NVIDIA® Quantum Effects™ Technology: Advanced shader processors architected for physics computation enable a new level of physics effects to be simulated and rendered on the GPU-all the while freeing the CPU to run the game engine and AI.
  • Page 8: Dual-Link Dvi Support

    Video-PX8000/PX558/558PCI series Dual-link DVI Support: Able to drive the industry's largest and highest resolution flat- panel displays up to 2560x1600. Built for Microsoft® Windows Vista™: NVIDIA's fourth-generation GPU architecture built for Windows Vista gives users the best possible experience with the Windows Aero 3D graphical user interface, included in the upcoming operating system (OS) from Microsoft.
  • Page 9: Inverse Telecine (3:2 & 2:2 Pulldown Correction)

    Video-PX8000/PX558/558PCI series Inverse Telecine (3:2 & 2:2 Pulldown Correction): Recovers original film images from films-converted-to-video, providing more accurate movie playback and superior picture quality. Bad Edit Correction: When videos are edited after they have been converted from 24 to 25 or 30 frames, the edits can disrupt the normal 3:2 or 2:2 pulldown cadence.
  • Page 10: System Requirement

    Video-PX8000/PX558/558PCI series System Requirement • Intel Pentium® P4 or compatible system with PCI Express Bus (x16) Extension Slot / PCI slot • CD-ROM drive, Quad speed or faster • Hard Drive with at least 200MB Free space • MS Windows® Vista/XP operating system •...
  • Page 11 Video-PX8000/PX558/558PCI series • Quick Start Guide (Printed) C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 12: Hardware Description

    Video-PX8000/PX558/558PCI series Hardware Description Video-PX8400GS-EX Video-PX558-TWIN / Video-PX628-Twin C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 13: Video-Px558-Dt / Video-Px628-Dt

    Video-PX8000/PX558/558PCI series Video-PX558-DT / Video-PX628-DT Video-PX558-DLP C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 14: Video-Px8400Gs-Ehx

    Video-PX8000/PX558/558PCI series Video-PX8400GS-EHX Video-558PCI-DLP C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 15: Video-558Pci-Quad

    Video-PX8000/PX558/558PCI series Video-558PCI-Quad Video-558PCI-QLP / Video-558PCI-QDLP C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 16 Video-PX8000/PX558/558PCI series Product name / PCB version Core Chipset PCB Size Memory Size Video-PX8400GS-EX 82558A NVIDIA GeForce 8400GS W=6.600” X H=2.713” 64M X 16 DDR2 512MB Video-PX8400GS-EHX 82668B NVIDIA GeForce 8400GS W=5.700” X H=2.713” 64M X 16 DDR3 Video-PX628-TWIN 82628E NVIDIA GeForce 8400GS W=6.600”...
  • Page 17: Display Devices Output

    Video-PX8000/PX558/558PCI series Display Devices Output Video-PX8400GS-LX / Video-PX8400GS-EX DVI out - DVI connects to LCD display panel. DVI converts to RGB with DVI-RGB converter for VGA out. TV-Out – MD-9 pin connector for Component, S-Video or Composite Out. VGA out - connects to CRT monitor. C o p y r i g h t ©...
  • Page 18: Video-Px558-Twin / Video-Px628-Twin

    Video-PX8000/PX558/558PCI series Video-PX558-TWIN / Video-PX628-TWIN Converter Cable DIM-9Pin Monitor DB 15 VGA DB 15 VGA Connector Monitor VGA out - connects to CRT monitor. MD-9 Pin converts to DB-15 VGA to CRT monitor. Video-PX558-DT / Video-PX628-DT C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 19: Video-Px8400Gs-Ehx

    Video-PX8000/PX558/558PCI series Video-PX8400GS-EHX C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 20: Video-Px558-Dlp / Video-558Pci-Dlp

    Video-PX8000/PX558/558PCI series Video-PX558-DLP / Video-558PCI-DLP Video-558PCI-Quad C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 21: Video-558Pci-Qlp

    Video-PX8000/PX558/558PCI series Video-558PCI-QLP C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 22: Video-558Pci-Qdlp

    Video-PX8000/PX558/558PCI series Video-558PCI-QDLP C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 23: Hardware Installation

    Video-PX8000/PX558/558PCI series Hardware Installation Installation Procedures !! WARNING!! Discharge static electricity by touching the GROUND such as metal part of your case connected with good power ground before you handle the electronic circuit boards. The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper installation of any components by unauthorized service personnel.
  • Page 24: Upgrade Steps

    Video-PX8000/PX558/558PCI series Upgrade Steps: Add or change your video adapter to an existing system, you may precede a few steps before you install the new hardware and software (video display driver). The followings are some of the considerations: 1. To add a new adapter, ensure the mainboard has available IRQ for new devices, and there is no conflict between each other.
  • Page 25: Software Installation

    Video-PX8000/PX558/558PCI series Software Installation Windows® 7 and Vista Driver Installation InstallShield® Program: Microsoft Windows® 7 and Vista detects this new hardware and places appropriate display driver from its system folder automatically - it doesn’t matter if you have added a new driver or changed the existing one. To maximize the video board acceleration and increase its performance, you may install the manufacturer’s display driver as follows: Click Yes to continue...
  • Page 26 Video-PX8000/PX558/558PCI series 2. Click on “Next” to continue the process. Click on “Yes” to agree to license agreement and continue. C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 27 Video-PX8000/PX558/558PCI series 4. Click on “Finish” to complete the installation. C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 28: Windows® Xp Driver Installation

    Video-PX8000/PX558/558PCI series Windows® XP Driver Installation InstallShield® Program: Microsoft Windows® XP detects this new hardware and places appropriate display driver from its system folder automatically - it doesn’t matter if you have added a new driver or changed the existing one. To maximize the video board acceleration and increase its performance, you may install the manufacturer’s display driver as follows: Autorun feature brings-up the “Welcome Screen”, and you may point...
  • Page 29 Video-PX8000/PX558/558PCI series Click on “Next” to continue the process. Click on “Yes” to agree to license agreement and continue. C o p y r i g h t © 2 0 1 0 J a t o n C o r p o r a t i o n , U S A...
  • Page 30 Video-PX8000/PX558/558PCI series The Windows system will copy all driver files from source media to your local hard disk; please wait until the process has completed. Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up. Notice: We believe that the all the installation steps mentioned above are clear from manufacturer software’s CD to your operating...
  • Page 31: Technical Assistance

    Video-PX8000/PX558/558PCI series Technical Assistance Q: Why is the display shifted or changed sizes when I switch display modes? Explain and Suggestion: Some monitors lack auto-sizing features or just do not synchronize properly to the video board output. In some cases, horizontal and vertical display adjustments may be necessary.
  • Page 32 Video-PX8000/PX558/558PCI series Q: Multiple images or unreadable screen after loading video driver. Explain and Suggestion: There are a variety of reasons why the display might be distorted. One common reason is a monitor mis-match. Some older multi-frequency monitors are unable to switch video modes without being turned off, then turned on again.
  • Page 33: Technical Support

    In the event you have a technical problem with this product, please read the README files in the software CD_ROM. Updated drivers are available through Jaton Web site. Have following information handy when you contact technical support: Name of the product.
  • Page 34 Video-PX8000/PX558/558PCI series In Taiwan contact: Jaton Technology Co., Ltd. 10F, NO.194, SEC.3, TA TUNG RD., HIS-CHIH, TAIPEI, TAIWAN R.O.C. Tel : 886-2-8647-1899 Fax : 886-2-8647-2679 In Australia contact: Jaton Technology pty, Ltd. Unit 8, 41-49 Norcal Road, Nunawading, Vic 3131 Australia...
  • Page 35 Video-PX8000/PX558/558PCI series The information in this document is subject to change without notice. FCC SHIELDED CABLE WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation,...
  • Page 36: Limited Warranty

    For Users that register product within 60 days of purchase Jaton will provide Two years warranty from manufacturing date or from date of purchase.
  • Page 37: Trademark And Copyright

    Jaton Corp. reserves the right to claim for shipping fees along with a service charge from the customer for any incomplete or modified product that is returned and requires repair or replacement, or when the customer is not entitled to any coverage under this warranty.
  • Page 38: Other Limits

    Video-PX8000/PX558/558PCI series Other Limits The forgoing is in lieu of all other warranties, expressed or implied. Including but not limited to the implied warranties of merchantability and fitness for a particular purpose. Manufacturer does not warrant against damages or defects arising out of improper or abnormal use of handling of the products;...
  • Page 39: Terms And Conditions

    Terms and Conditions Direct Jaton Customer: This warranty applies only for a period of two (2) years from purchase date of Jaton original invoice. Reseller/ Vendor: This warranty applies only for a period of two (2) years from manufacturing date.
  • Page 40: Entire Obligation

    Video-PX8000/PX558/558PCI series Entire Obligation This Limited Warranty states the entire obligation of Manufacturer with respect to the Products. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in force and effect. Some states do not allow limitation of implied warranties, or exclusive or limitation on product incidental or consequential damages, so above limitation may not apply to you.
  • Page 41: Reducing Warranty Claim Rejections

    Video-PX8000/PX558/558PCI series Reducing Warranty Claim Rejections To reduce the potential of incurring damages not covered by Manufacturers warranties, we strongly recommend the following: • Read your manuals before installing peripherals and/or before making changes to the machine’s configuration; • Ask your dealer if there are any known problems with the system requirements or installation procedures for any add-on products that your are purchasing;...
  • Page 42 Video-PX8000/PX558/558PCI series Warranty Service Use Only Serial Number - ten or eleven digit code, the serial number consists of the following parts: Packaging Type Manufactured Date Code Production Numerical Code 00 8 000015 Year Month XXXXX-XXX-XX S/N: A008000015 xxxx/xxxx 00.0 XXXX XX XXXXXX Product Label and Manufactured Date Code C o p y r i g h t ©...
