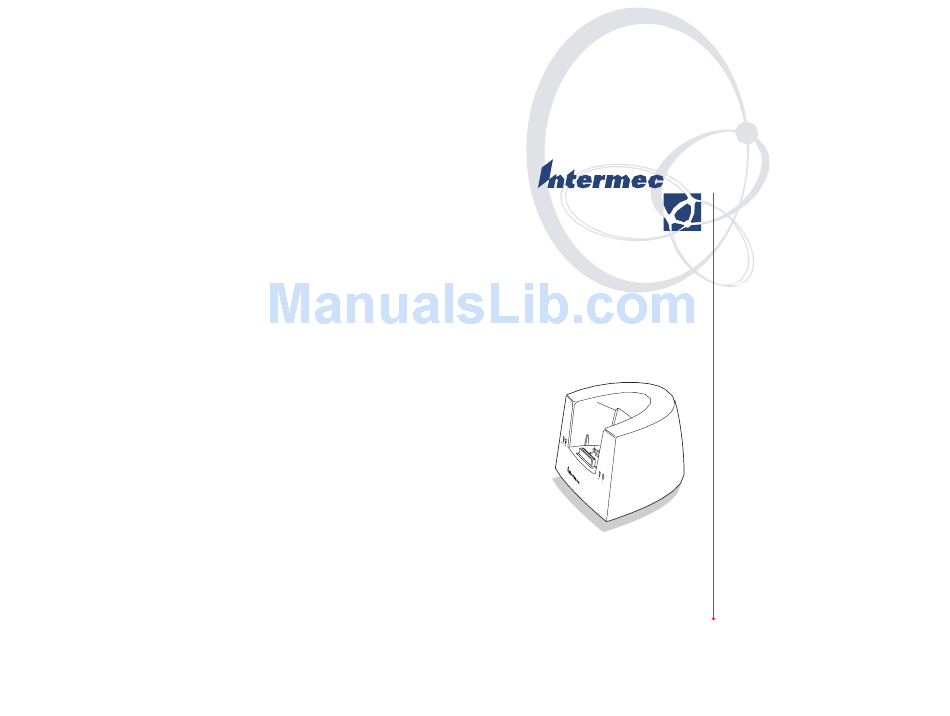

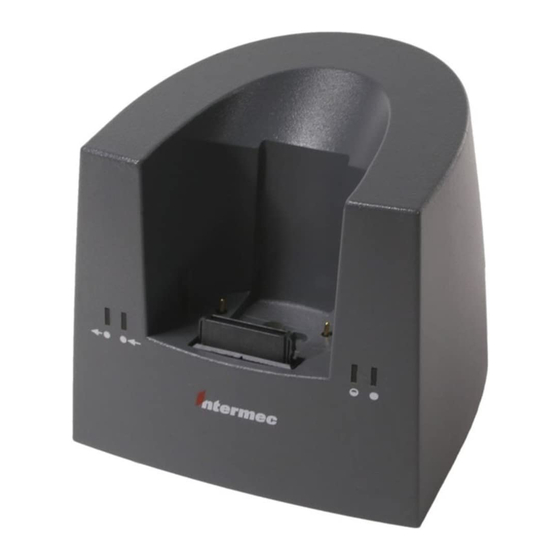

  • Page 1 Quick Reference Guide ® Trakker Antares Communications Dock (TD2410)
  • Page 2 Use this illustration to locate the important parts of the communications dock. without written permission of Intermec. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Terminal/ Technologies Corporation.
  • Page 3 RS-232 null-modem cable (P/N 059167) Two #8 Phillips head machine screws (provided) • Each of these accessories is ordered or purchased separately. For help, contact Two #8 screws (not provided) your Intermec sales representative. • Phillips screwdriver (not provided) • Drill (not provided) To set up the dock for RS-232 communications 1.

  • Page 4: Understanding The Status Leds

    Inserting the Terminal Into the Communications Dock Attaching the Communications Dock to Your Desk (continued) After you have connected a power cord and RS-232 cable and mounted the dock to your desk, you are ready to insert the terminal into the dock and start using it.

  • Page 5: Charging The Battery Pack

    The battery pack takes longer to charge if the battery pack is inside the terminal Warning and you are using the terminal. It also takes longer to charge the battery pack at To prevent fire or electric shock, do not expose the TD2410 to more extreme temperatures. rain or moisture.
  • Page 6 RS-232 DTE Connector Pinout RXD (Receive data) TXD (Transmit data) GND (Signal ground) RTS (Request to send) CTS (Clear to send) 241XQ03.eps...
  • Page 7 6001 36th Avenue West Everett, WA 98203 U.S.A. www.intermec.com © 2004 Intermec Technologies Corp. All Rights Reserved Trakker Antares TD2410 Communications Dock Quick Reference Guide *069552-002* P/N 069552-002...
