Intermec 6640 Installation Instructions Manual
Intermec 6640: install guide
Hide thumbs
Also See for 6640:
- Technical reference (258 pages) ,
- User manual (70 pages) ,
- Quick start instructions (2 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Installation Instructions
P/N 962-040-003
Revision A
November 1999
6640 Dock
P/N 962-040-003 Revision A
Advertisement
Related Manuals for Intermec 6640
Summary of Contents for Intermec 6640

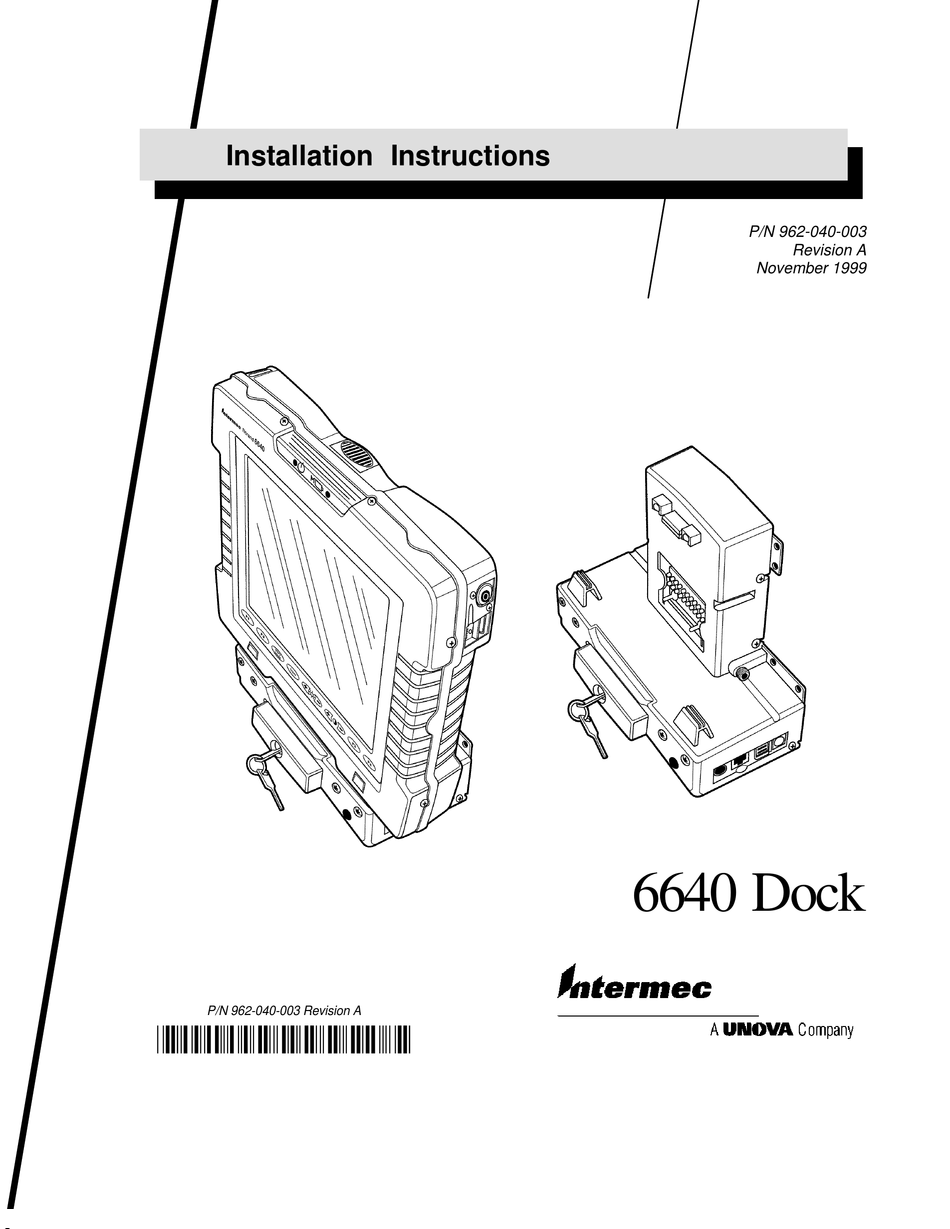

- Page 1 Installation Instructions P/N 962-040-003 Revision A November 1999 6640 Dock P/N 962-040-003 Revision A...
-
Page 2: Available Mounts
" The basic mounts available from Intermec Technologies Corporation " Connector locations on the 6640 docks " How to dock and undock a 6640 computer " Various mounting hole dimensions, spacing, and specifications Available Mounts RAM Mount various base, adapter... -
Page 3: Bottom View
Connectors Bottom View 1. Parallel port, LPT1 (25-pin, printer) 2. COM port, RS-232 (9-pin) 3. General purpose I/O port, (15-pin) 4. DC power input (vehicle dock only) 5. Remote radio antenna jacks Oblique View 1. Gripper 2. Surface connector 3. DC power input (in-premise dock only) 4. - Page 4 Docking Procedures 1. Alignment recesses (bottom of computer) 2. Alignment wedges 3. Gripper 4. Dock latch...
- Page 5 INFORMATION...
- Page 8 Thru-hole Pattern *allows mounting to wall, plywood, or metal bulkhead *8 holes, 0.188” diameter " 4.585” " 2.293” 2.659” .750” " " 1.262”...
- Page 9 Three-hole Pattern *1/4-20 threads, 3 holes Maximum screw penetration is 1/4 inch in from outside surface to prevent damage to internal components. 1.191” " CAUTION 2.063”...
- Page 10 Four-hole Pattern (see next page) *1/4-20 threads, 4 holes (rear) *#10-32 threads, 2 holes (bottom) 1.283” " 2.567” 4.0” CAUTION Maximum screw penetration is 1/4 inch in from outside surface to prevent damage to internal components.
- Page 11 Four-Hole Adapter Bracket...
- Page 12 Six-hole Pattern #6-32 threads, 6 holes Maximum screw penetration is 3/8ths inch in from out- side surface to prevent damage to internal components. 1.458” " 1.458” " CAUTION 1.0” 1.0”...
- Page 13 Bottom Pattern #6-32 threads, 4 holes 1.372” 2.981” 1.372” 2.981” CAUTION Maximum screw penetration is 3/8ths inch in from out- side surface to prevent damage to internal components.
- Page 14 Keyboard Mounting Tray...
