Summary of Contents for Intermec FlexDock
- Page 1 FlexDock DX1, DX2, DX4 User’s Guide...
- Page 2 Intermec Technologies Corporation. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation. © 2011 by Intermec Technologies Corporation. All rights reserved.
- Page 3 This page records changes to this document. The document was originally released as Revision 001. Version Number Date Description of Change 7/2011 Added support for the CK3, CN3, and CN4 computers. 4/2011 Added additional troubleshooting information, specifications, and support for the CN50 and CS40 computers. FlexDock User’s Guide...
- Page 4 FlexDock User’s Guide...
-
Page 5: Table Of Contents
Optional FlexDock Accessories ........ - Page 6 FlexDock User’s Guide...
-
Page 7: About The Flexdocks

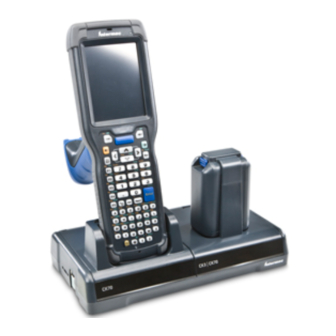

DX4 Quad Dock. DX1 Desktop Dock and DX2 Dual Dock: DX2 is also available with two computer cups or two battery cups. DX4 Quad Dock: DX4 is also available with other combinations of computer and battery cups. FlexDock User’s Guide... -
Page 8: What You Need
AC power cord for your region (except North America) • Ethernet cable (except charge-only docks) • Micro-USB cable (DX1 only) For information on these and other accessories, contact your local Intermec representative. Connecting the DX1 USB host USB client port port To power supply FlexDock User’s Guide... - Page 9 For the DX1 and DX2, you can use the optional retaining clip to secure the power supply cord to the dock as shown in the next illustration. Optional Power Cord Retaining Clip for DX1 and DX2: DX1 shown here. FlexDock User’s Guide...
-
Page 10: Connecting The Dx2
Connecting the DX2 To Ethernet devices To power To Ethernet supply network Note: To install the optional retaining clip for the power cord, see the previous section. Connecting the DX4 To power supply To Ethernet To Ethernet devices network FlexDock User’s Guide... -
Page 11: Charging Batteries
Note: If you place a battery in the cup and the Charge LED does not flash or stay on, the FlexDock may not be connected to power. Make sure the power supply is properly connected to the FlexDock and to a powered AC outlet. -
Page 12: Charging Computers
Ethernet LED Descriptions (DX2 and DX4 Only) LED Color Description Steady Green Computer is communicating with the dock. Flashing Green Computer is communicating with the Ethernet network. None Computer is not communicating with the dock, or the dock is not connected to power. FlexDock User’s Guide... -
Page 13: Using The Ck3, Cn3, And Cn4 With The Dx4 Ethernet Dock
Computer, or CN4 Mobile Computer, and then click Submit. The Downloads page for the computer appears. 5 In the OS/Firmware/Drivers list: • For the CK3, click CK3 FlexDock Ethernet Support ver. 1.xx. For the CN3 or CN4, click CN3/CN4 FlexDock Ethernet • support ver. 1.xx. -
Page 14: About Custom Configurations
About Custom Configurations If you need a custom configuration for your FlexDock, you can order a Desktop, Dual, or Quad Base without computer or battery cups, and then order cups for your specific combination of Intermec computers and batteries. You can also order blank covers for bays you are not using. -
Page 15: Optional Flexdock Accessories
Connects the DX1 to your wired phone network. Computer and Additional computer and battery cups mount in the Battery Cups FlexDock for custom configurations. Rack Mount Kit Mounts DX2 or DX4 to a standard 19-inch IT equipment rack. For information on these accessories, contact your local Intermec sales representative. - Page 16 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2011 Intermec Technologies Corporation. All rights reserved. FlexDock User’s Guide *934-058-003* P/N 934-058-003...
