Summary of Contents for Chauvet Hurricane Haze 2

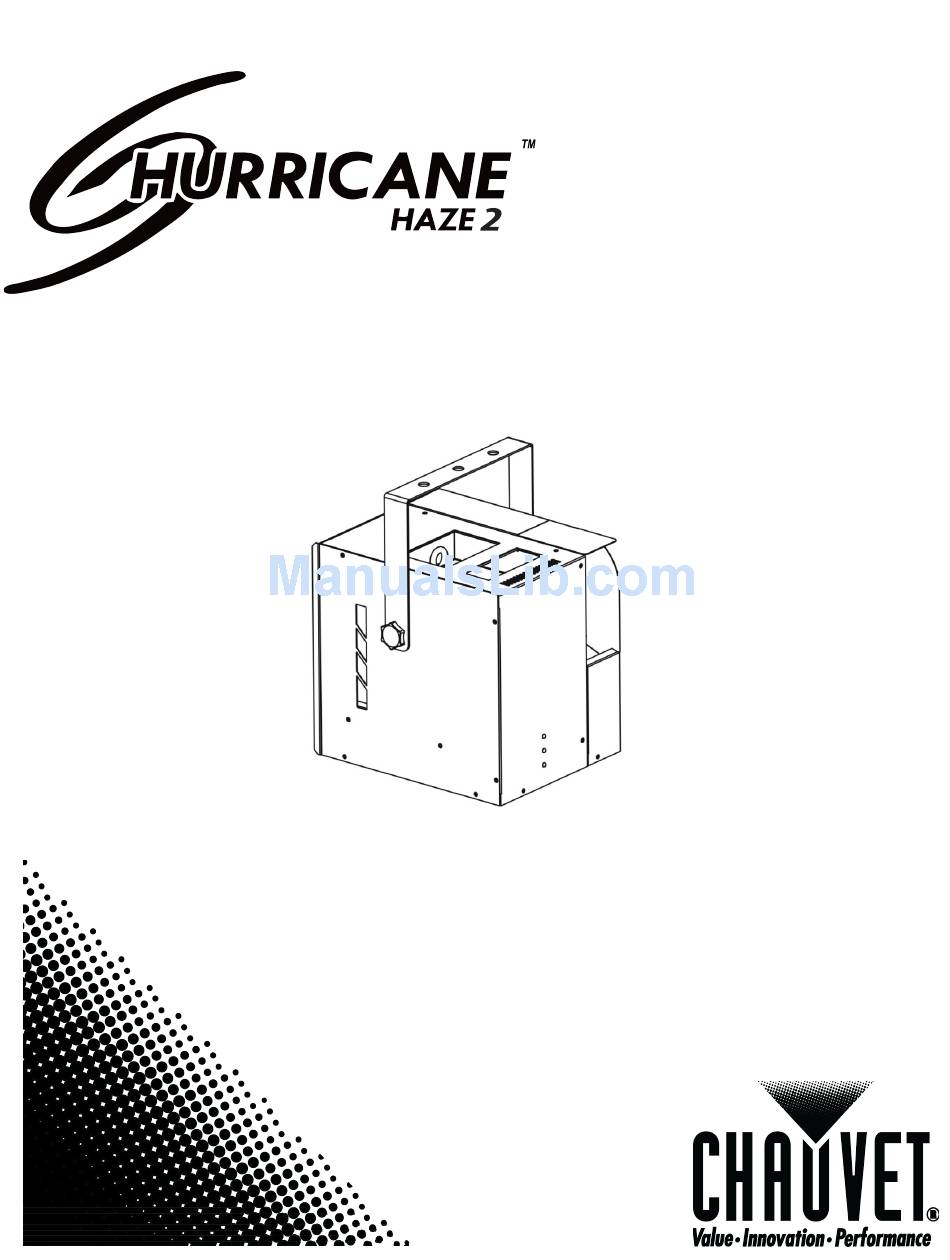

- Page 1 User Manual...
-
Page 2: Table Of Contents
PECIFICATIONS CHAUVET®, 2010, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Author: Anthony Chiappone Revision: 01 Release Date: 10-01-2010 Hurricane™... -
Page 3: Before You Begin
1. B EFORE EGIN What is included 1 x Hurricane™ Haze 2 1 x Wired Remote (HH1) 1 x Power Cord 1 x Warranty Card 1 x User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Safety Instructions
Make sure the power cord is never crimped or damaged. • Never disconnect the power cord by pulling or tugging on the cord. Use only CHAUVET® HFG fluid! Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. -
Page 5: Product Overview
DIP switches “Heating” No fluid LED indicator DMX out DMX in Remote control Power switch Fuse holder Power input Back door handle for fluid container & remote control storage Use only CHAUVET® HFG Hurricane™ Haze 2 User Manual 10/1/2010 5:13 PM... -
Page 6: Setup
Maximum recommended number of fixtures on a serial data link: 32 Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 7: Cable Connectors
Cable Connectors Cabling must have a male XLR connector on one end and a female XLR connector on the other end. Resistance 120 DMX connector configuration ohm 1/4w between pin 2 (DMX -) and pin 3 (DMX +) on COMMON the output of the last fixture. -
Page 8: Mounting
Mounting Orientation This fixture may be mounted in a hanging or sitting position, provided there is adequate room for ventilation. Rigging Hanging Clamp It is important never to obstruct the vents pathway. Mount the fixture using, a suitable “C” or “O” type clamp. •... -
Page 9: Wired Remote (Hh1) (Included)
Wired Remote (HH1) (Included) This is the controller that comes with the Hurricane™ Haze 2. There are three functions of this remote. Please see the below instructions for details on each of these operations. Timer Function Plug in the haze machine to power and turn the power switch to the fixture on. Plug in the timer remote to the Manual Controller socket on the rear of the haze machine. -
Page 10: Contact Us
Contact Us W o r l d W i d e General Information CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 (Press 4) fax: 954.929.5560 (Attention: Service) -
Page 11: Setting The Dmx Starting Address
Setting the DMX Starting Address This DMX mode enables the use of a universal DMX controller device. Each fixture requires a "start address" from 1 to 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. -
Page 12: Dmx Quick Reference Chart
DMX Quick Reference Chart DMX Address Quick Reference Chart DIP Switch Position DMX DIP #9 0 0 0 SWITCH SET 0=OFF #8 0 0 0 1=ON #7 0 0 1 X=OFF or ON #6 0 1 0 #1 #2 #3 #4 #5 0 0 0 0 0 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480 1 0 0 0 0... -
Page 13: General Troubleshooting
Stand alone mode require additional settings, simply power the fixture and it will automatically enter into this mode If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support at the location below. Technical Support Address: Service Dept. - Page 14 Warning! This Haze Machine must only be used with CHAUVET® HFG Haze Fluid! Failure to use the proper fluid with this product may cause damage to the product and may also void the CHAUVET® warranty. All haze machines are prone to clogging due to the thick consistency of the fog liquid and the high temperature at which it vaporizes.
-
Page 15: Returns Procedure
Package must be clearly labeled with a Return Merchandise Authorization Number (RMA #). Products returned without an RMA # will be refused. Call CHAUVET® and request RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 16: Technical Specifications
FUSE 115 VAC ......................F 5 A, 250 V (fast blow) 230 VAC ......................F 3 A, 250 V (fast blow) COMPATIBLE FLUID Haze Fluid ........................CHAUVET® HFG INDOOR/OUTDOOR Rating ........................For indoor use only THERMAL Maximum ambient temperature ..................104° F (40° C) CONTROL &...
