3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION

The AdvancedFrame Expedition™ Kayak has a rigid frame in the bow and stern that enhances its
performance.

3.1 Assembly

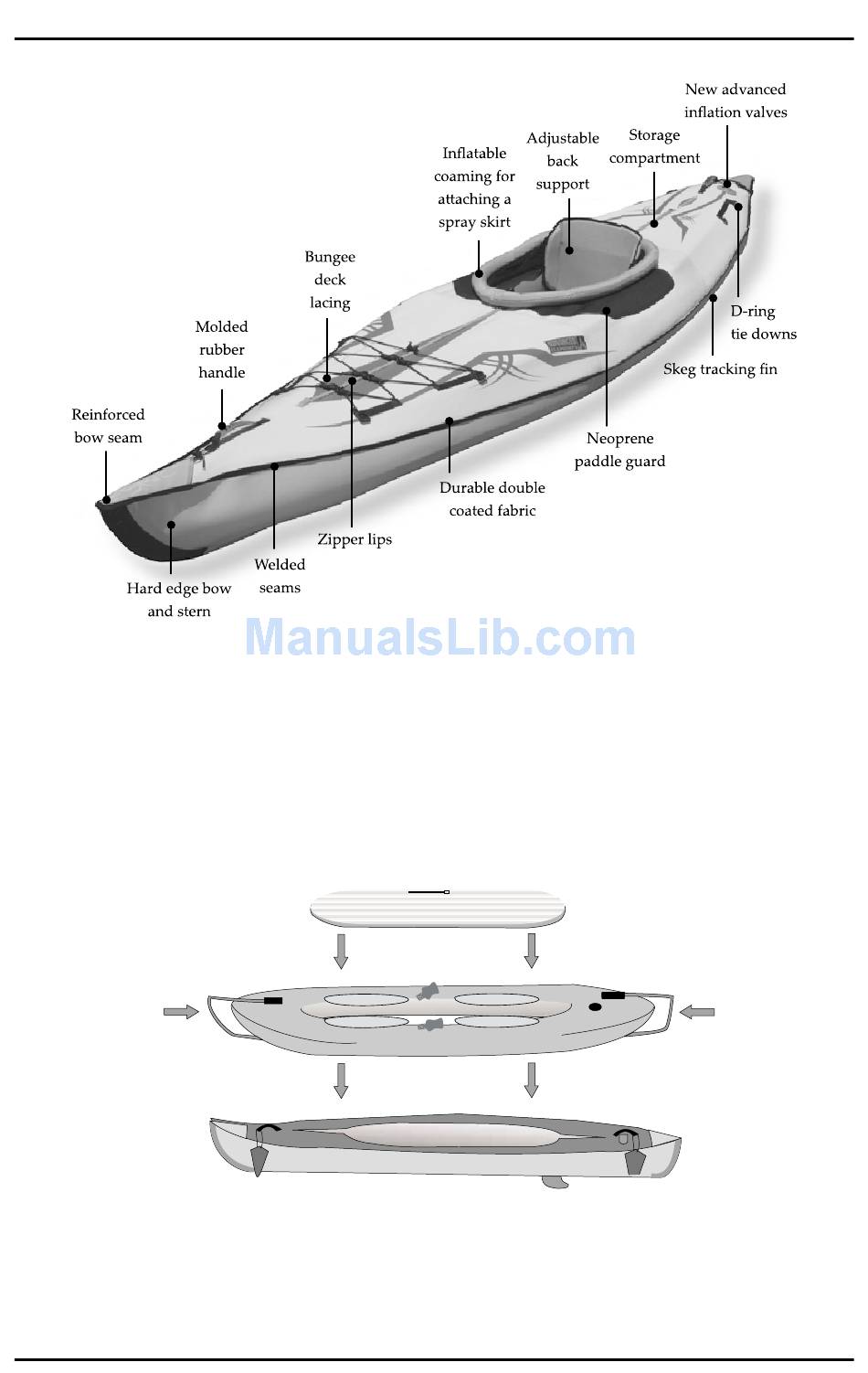

The illustration below shows the general assembly of the kayak. Your kayak comes from the
factory pre-assembled. The only assembly you should need to do is attach the adjustable seat.
Step 1
1. Your AdvancedFrame Expedition™ kayak comes from the factory pre-assembled however
should you take it apart you will need to insert the aluminum Bow Rib and the Stern Rib into
the webbing slots on the cover of the AdvancedFrame™ tube (while deflated).
AdvancedFrame Expedition™ Inflatable Kayak Owner's Manual
BOW RIB
INFLATABLE FLOOR
ADVANCEDFRAME
OUTER COVER
Step 3
STERN RIB
Step 2
Step 1
