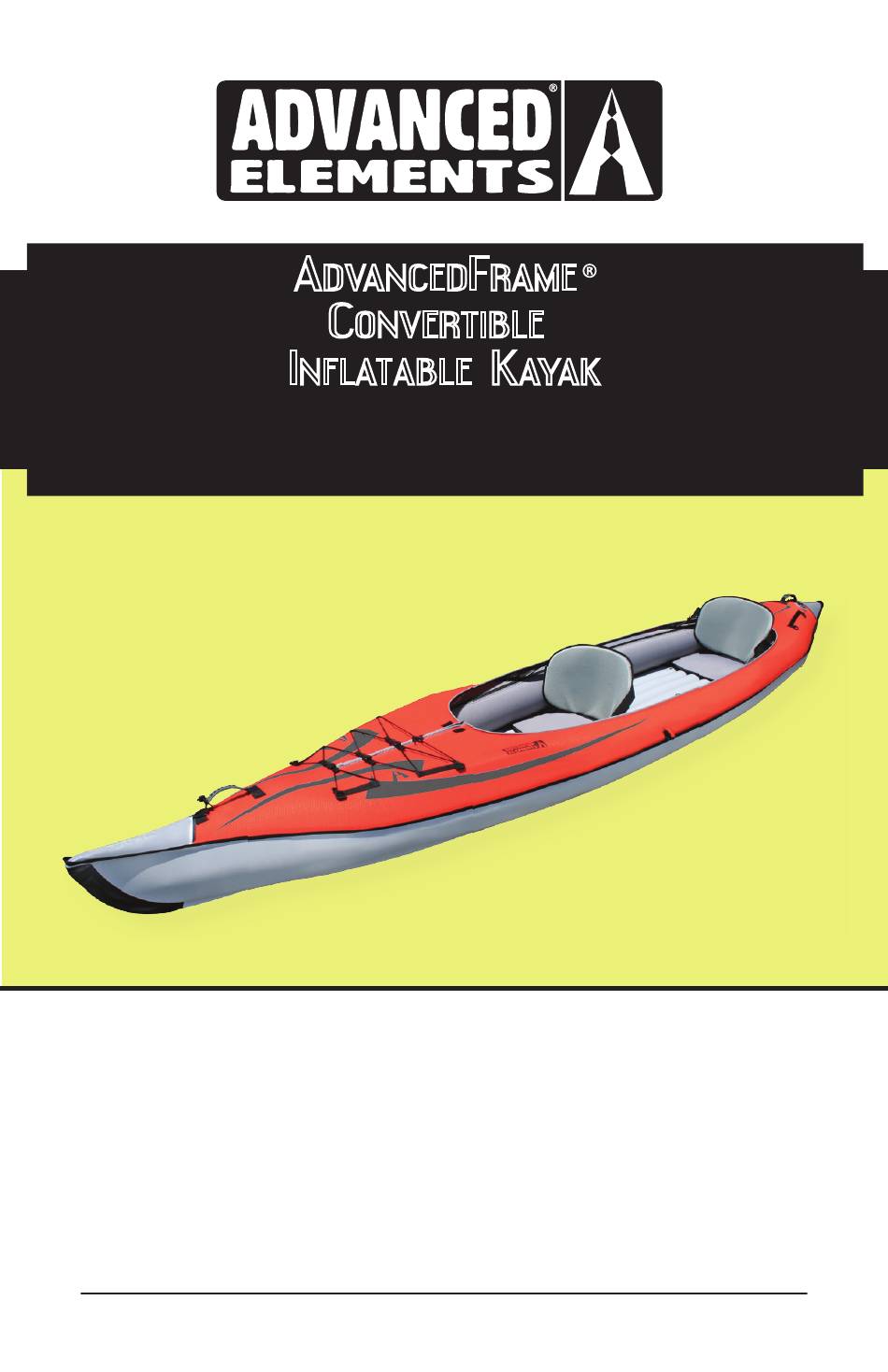

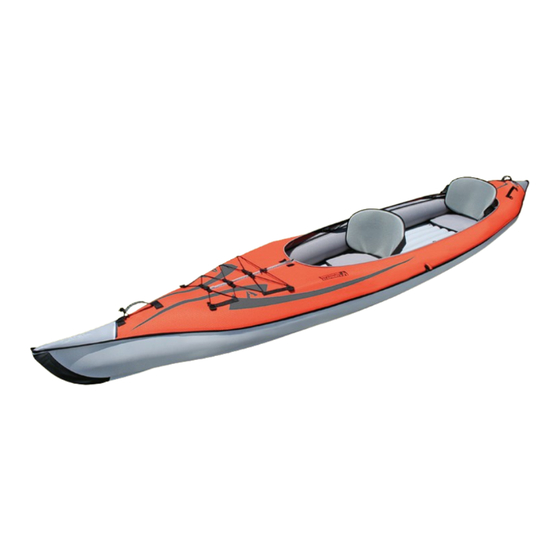

- Page 1 AdvancedFrame Convertible Inflatable Kayak Owner’s Manual MODEL AE1007 PATENTED 1 OR 2 PERSON KAYAK IMPORTANT! PLEASE READ THIS MANUAL CAREFULLY BEFORE PROCEEDING. AFTER READING THIS MANUAL, SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. ADVANCED ELEMENTS, INC. 2016 REV 12-2015...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Caution/Safety ..............4 1.1 Boating Safety ............5 2. Specification ..............6 2.1 Capacity ..............6 2.2 Features ..............6 3. Assembly/Inflating/Deflation Instruction ....7 3.1 Assembly ............... 7 3.2 Understanding Your Valves........ 8 3.3 Inflating ..............10 3.4 Over Inflation ............ -
Page 4: Caution/Safety
· READ OWNER’S INFORMATION PACKET PRIOR TO USING THIS PRODUCT. THE USER OF THIS PRODUCT ACKNOWLEDGES BOTH AN UNDERSTANDING AND AN ASSUMPTION OF THE RISK INVOLVED IN PADDLESPORTS. ADVANCED ELEMENTS, INC. TOLL FREE 866-262-9076 Please read this entire manual for additional safety information. Please pay close attention to items... -
Page 5: Boating Safety
AdvancedFrame™ Convertible Inflatable Kayak Owner’s Manual 1.1 Boating Safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates an imminently hazardous situation which, if not avoided, will DANGER... -
Page 6: Specification
PERSON OR 500 LBS. 550 LBS PERSON, GEAR PRESSURE = 2.0 psi (main chambers) MANUFACTURER: ADVANCED ELEMENTS, INC. CONCORD, CA USA 94524 MODEL AE1007 - ADVANCEDFRAME™ CONVERTIBLE KAYAK THIS BOAT COMPLIES WITH NMMA STANDARDS OF EFFECT ON THE DATE OF CERTIFICATION NATIONAL MARINE MANUFACTURES ASSN. -
Page 7: Assembly/Inflating/Deflation Instruction
AdvancedFrame™ Convertible Inflatable Kayak Owner’s Manual OPTIONAL DECKS: Attach the optional Single Deck or Double Deck kit (sold separately) to create a closed deck kayak with the option for using a spray skirt. Three seating positions allow for maximum versatility. Single Double 3. -
Page 8: Understanding Your Valves
Advanced Elements AdvancedFrame™ Convertible kayak uses the following valves. The Advanced Elements spring valve has the function and durability of other military type valves and is compatible with most standard pumps. The lock nut holds the valve in place with the cover for easy inflation. - Page 9 Special Note: The Spring Valve Adaptor comes with all current Advanced Elements pumps, with the exception of the 12v inflator, and will attach to any Advanced Elements pump that does not have the adaptor already included, with the exception of the 12v inflator. The Spring Valve Adaptor will also attach to some other manufacturer’s pumps, but you must check the...
-
Page 10: Inflating
IMPORTANT your kayak in the following order. Failure to follow these instructions may cause damage to Starting with Chamber 1, check to be sure that the valve plunger is UP or in the INFLATE position (See Figure 1 on previous page). Inflate until the kayak begins to lift off of the ground and take shape, then close cap. -
Page 11: Over Inflation
AdvancedFrame™ Convertible Inflatable Kayak Owner’s Manual Figure 3. Plastic Bow and Stern Insert INFLATION TIPS Use either a bellows style foot pump or two-way hand pump to inflate to your kayak. Be sure that the fitting on the pump hose fits snug in the valve on the kayak. NEVER USE COMPRESSORS, CO2, OR COMPRESSED AIR AS THEY MAY DAMAGE YOUR KAYAK. -
Page 12: Guidelines For Usage
2. Remove plastic Bow and Stern forms and seats then lay kayak out flat. Remove optional single or double deck if attached. 3. Fold in half, down the center. 4. Fold into 5 equal sections. 4. Place into duffel bag. 4. -
Page 13: Proper Care And Storage
AdvancedFrame™ Convertible Inflatable Kayak Owner’s Manual Most areas have local laws and regulations about the use and equipment of small boats. Usually a phone call to the local authorities will provide you with the needed information. Some areas may require that you register and display a registration number on the front of your kayak. Once you have been issued a number, it is best to affix it to the kayak by printing it on the material with a permanent ink marker. -
Page 14: Repairs
5. If there is sand or gravel in the kayak, you can hose out the cover, and then wipe it down with a towel. 6. Most of the time you can just pull out the inflatable floor and wipe out the inside of the kayak absorbing most of the water, then pack it up. - Page 15 AdvancedFrame™ Convertible Inflatable Kayak Owner’s Manual SOLUTION PROBLEM If you have checked all the previous possible reasons for the kayak Kayak still loses air. losing air, then there may be a pinhole or a puncture somewhere on the tube. Pull tube from outer covers. Inflate. If you cannot see or hear where a leak may be, take a clean rag with soapy water and begin rub- bing the tube.
- Page 16 PADDLING NOTES: It is alway a good idea to keep nots of your paddling experiences. Your notes can serve as a reminder of what to look out for, as well as what gear to bring along, and what conditions are like. DATE TIME LOCATION...
-
Page 17: Statement Of Origin
Note: If your state requires the licensing of this boat, please use the form below. If you need any assistance filling out this form, please contact Advanced Elements Customer Service Department. MANUFACTURER’S STATEMENT OF ORIGIN FOR A VESSEL SOLD IN THE STATE OF_____________________________________... -
Page 18: Declaration Of Conformity
Declaration of Conformity (according to ISO/IEC Guide 22 and EN 45014) s ’ Name: Advanced Elements, Inc. s ’ Address: P.O. Box 5128 Concord, CA 94524 that the product: Name: AdvancedFrame® Convertible Kayak Number (s): AE1007 to which this declaration relates, meets the essential health and safety... -
Page 19: Limited Warranty
For warranty service, contact Advanced Elements, Inc. Advanced Elements, Inc shall inspect all warranty claims and in the event of a defect, repair or replace the defective part or entire item, at its option. The purchaser must, before return of a defective product, obtain from Advanced Elements, Inc, a return authorization number and return center address.
