Connection to the amplifier
Connect the tonearm cables to the Phono input (sometimes labelled gram, disc or RIAA) on your amplifier.
Make sure that the phono input offers correct matching and amplification for the type of cartridge used. Line
inputs (such as CD, Tuner, Tape or Video) are not suitable.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the left
channel black or white. Check the manual supplied with your amplifier for relevant information. An earthing
wire may be connected to the screw terminal between the sockets if you encounter hum problems when using
the record player.
If your amplifier does not have an input suitable for phono cartridges you will require a separate phono
amplifier stage for MM or MC cartridges such as the PRO-JECT PHONO BOX or the PRO-JECT TUBE BOX
which is then connected between the record player and a free line level input of the amplifier.
For detailed product information please refer to the Pro-Ject web site www.project-audio.com.
Mains power connection
The turntable is supplied with a power supply suitable for your country's mains supply. Check the label before
connecting to ensure compliance with the mains rating in your house.
Connect the low voltage plug from the power supply to the socket (1) on the rear of the record player before
connecting the power supply to the mains.
Fitting the lid
Fit the lid (dust cover 9) carefully over the hinge prongs and adjust the screws (8) until the lid stays open
where you want it to without being too stiff to open or close.
Starting the motor, Stand By
Pressing the button Speed Change will switch on the player from stand by. Press and hold the button Speed
Change to put the unit into stand by.
Changing replay speed
The belt must be on the smaller (50Hz models) larger (60Hz models) diameter part of the motor pulley.
Press the button Speed Change to switch between 33 and 45 r.p.m.. The selected speed will be displayed
digitally.
To replay records at 78 r.p.m. perform the following steps: Remove the pulley cover. Using the tool (3a), fit
the belt (3) around the larger (50Hz models, for 60Hz models the smaller diameter has to be used) diameter
step of the pulley (2). Start the turntable by pressing the button Speed Change and switch the speed to
45 r.p.m., the platter will then revolve at 78 r.p.m.. The display still shows 45 r.p.m..

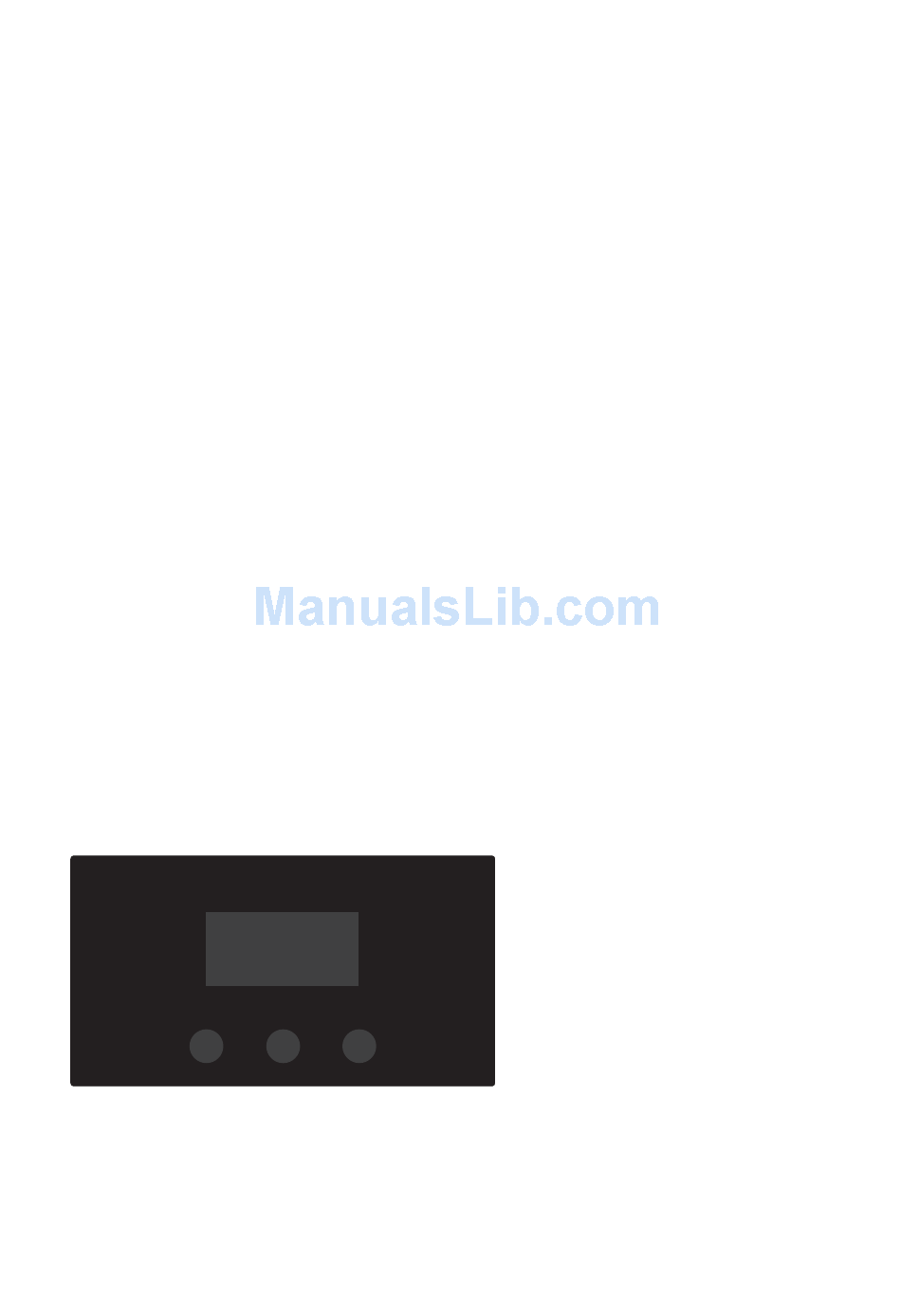

45.0
-
Speed Change +
Pitch control
Repeatedly pressing the + or - buttons increases or decreases the replay speed in twenty steps of 0,1 r.p.m.
respectively. The adjusted speed is displayed digitally.
