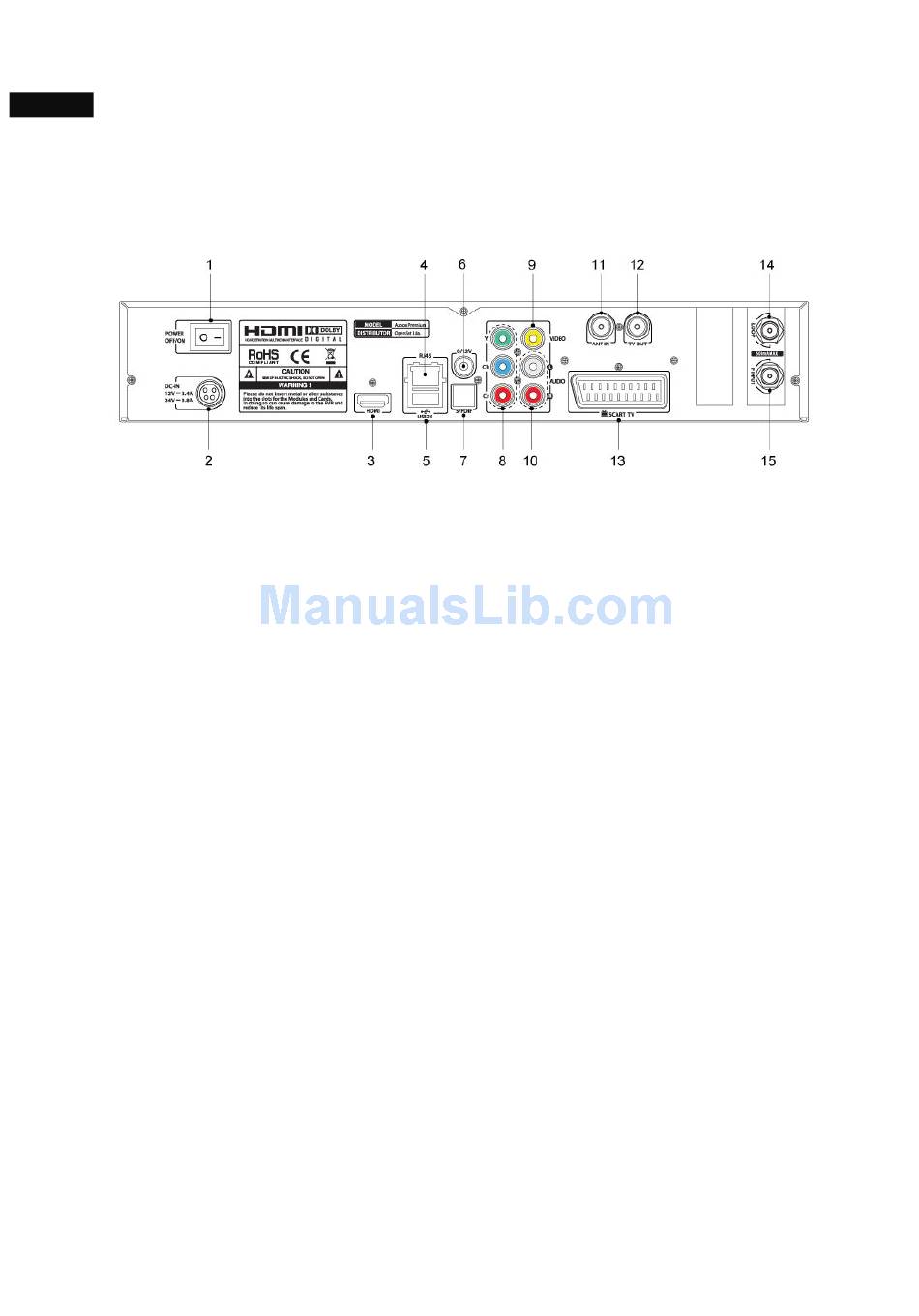

1.4.2 Azbox Premium
① POWER SWITCH: Turn the digital receiver On and OFF.
② AC POWER INPUT: Connect AC power cord to deliver power to the
digital receiver.
③ HDMI: Audio and video output socket for the high definition
television set.
④ LAN: Local area network port.
⑤ USB Slot: Connect to support devices.
⑥ 0/12V: 0V or 12V output
⑦ S/PDIF: Dolby digital output socket for the audio system.
⑧ Y/Cb/Cr: Component video output socket for the television set.
(green/blue/red)
⑨ VIDEO: Composite video output socket for the television set.
(yellow)
⑩ AUDIO L/R: Stereo audio output socket for the television set or the
audio system. (white/red)
