Introduction

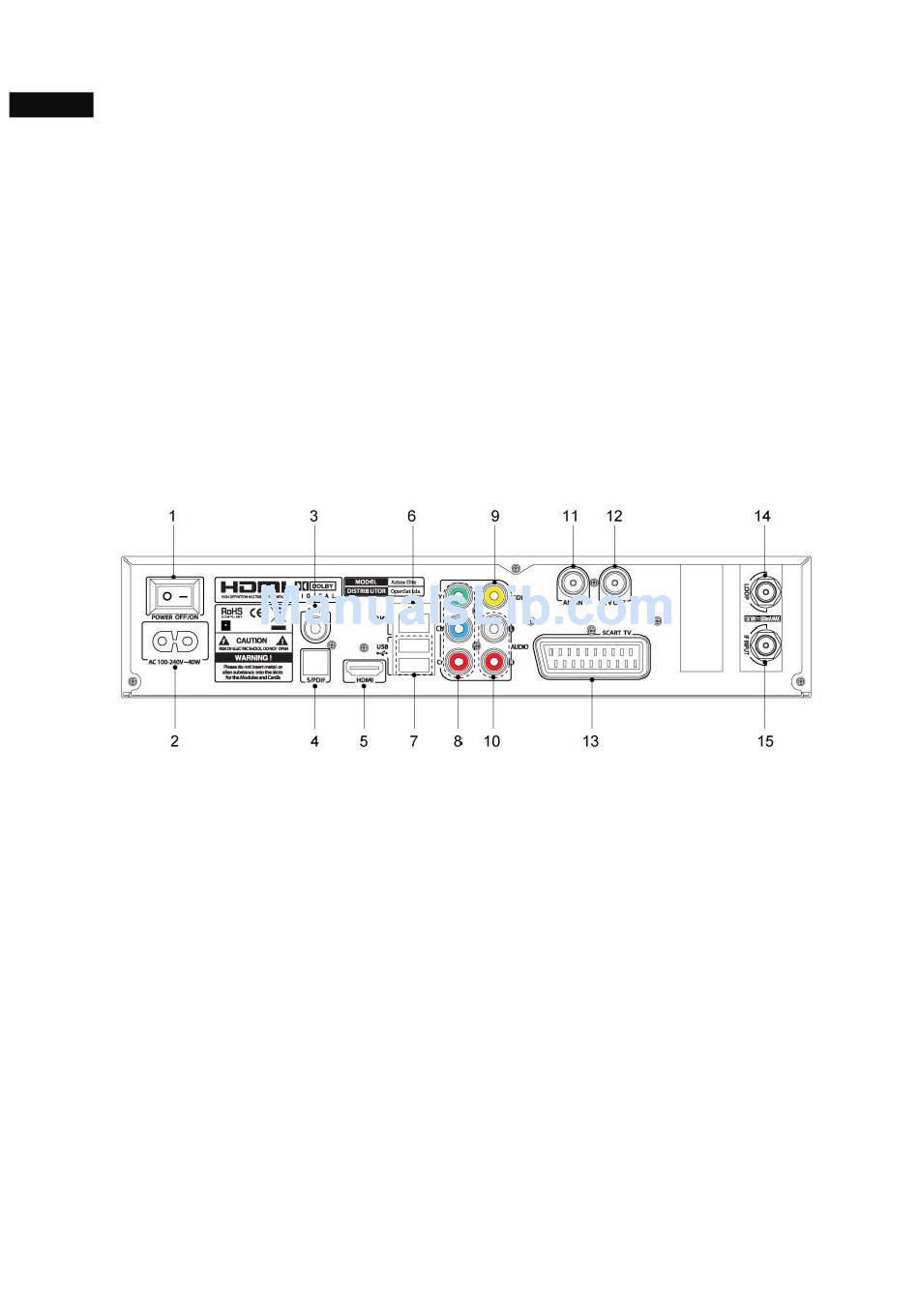

1.4 The Rear panel

The Azbox Elite/Premium has a wide range of connections on the back.
Check what connections your television set has in comparison with the
digital receiver. The following indicates what they mean.

1.4.1 Azbox Elite

① POWER SWITCH: Turn the digital receiver On and OFF.
② AC POWER INPUT: Connect AC power cord to deliver power to the
digital receiver.
③ 0/12V: 0V or 12V output
④ S/PDIF: Dolby digital output socket for the audio system.
⑤ HDMI: Audio and video output socket for the high definition
television set.
⑥ LAN: Local area network port.
⑦ Two USB Slots: Connect to support devices.
