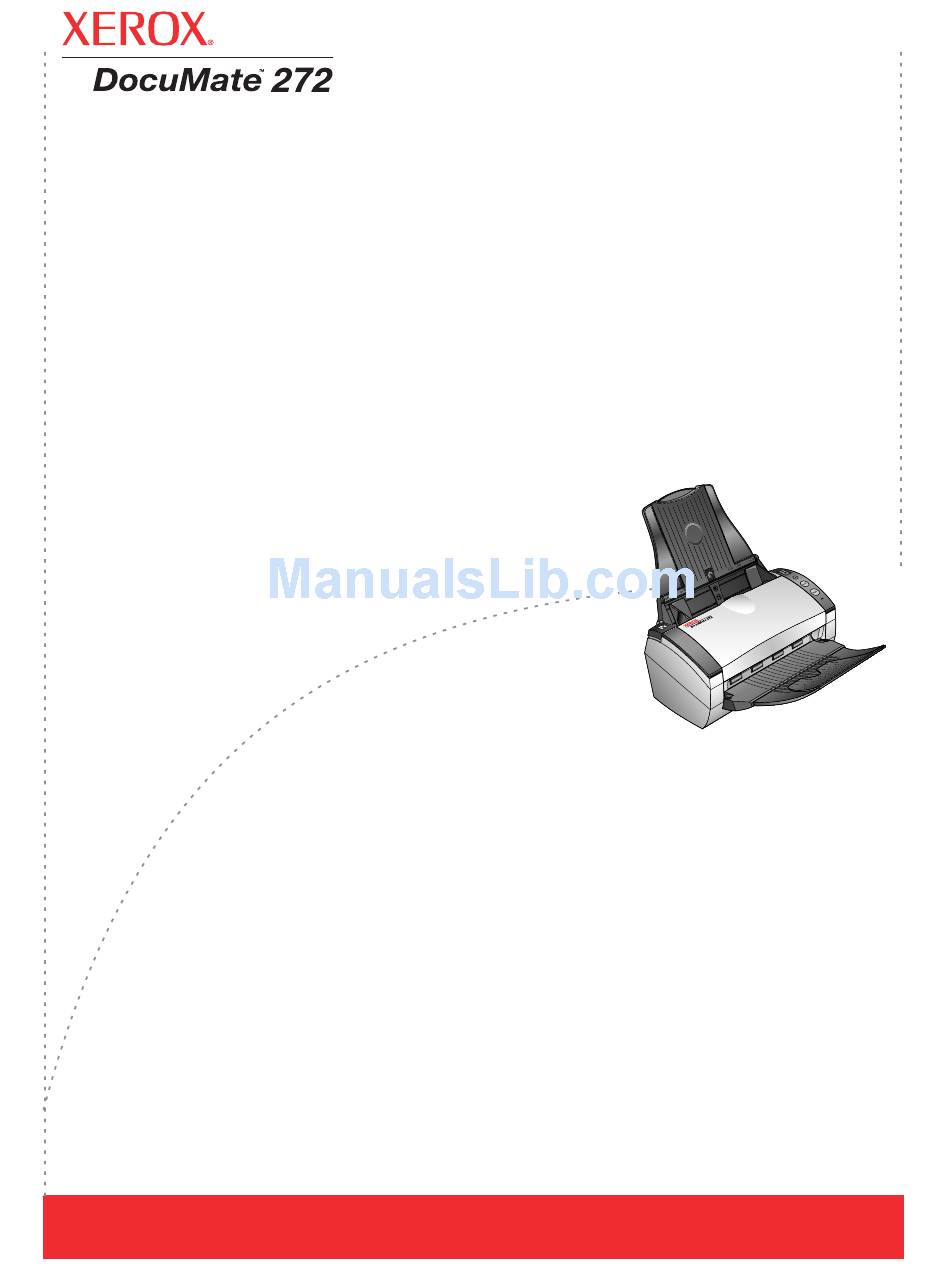

  • Page 1 DocuMate 272 scanner user’s guide...
  • Page 2 DocuMate 272 scanner user’s guide...
  • Page 3 XEROX ® is a trademark of Xerox Corporation in the United States and/or other countries and is used under license. DocuMate is a trademark of Xerox Corporation used under license. All other Xerox product names and product numbers mentioned in this publication are trademarks of Xerox Corporation.

  • Page 4: Table Of Contents

    The Xerox DocuMate 272 Scanner ........
  • Page 5 Xerox DocuMate 272 Scanner Specifications ........

  • Page 6: Welcome

    Welcome Your new Xerox DocuMate 272 scanner can quickly scan single- sided or double-sided stacks of color and black-and-white documents and place their images on your computer. In addition, your scanner includes a Card Reader that can scan either or both sides of credit cards, driver’s licenses, medical cards, and other...

  • Page 7: The Xerox Documate 272 Scanner

    Welcome The Xerox DocuMate 272 Scanner Paper guide LED Number Destination Selector button Simplex button Duplex button Status light Output tray ADF cover release Card Reader Power switch USB port Power jack Paper guide—Holds documents to scan through the Document Feeder.

  • Page 8: What You Need

    Documentation Your scanner is delivered with the following documentation: • Quick Install Guide—Abbreviated installation instructions. • DocuMate 272 Scanner User’s Guide—On the Installation CD; contains detailed installation, scanning, configuration, and maintenance information. • ScanSoft PaperPort User’s Guide—On the Installation CD;...

  • Page 9: Installation

    3. Carefully remove any foam particles that may have gotten inside the document feeder, and close the cover. NOTE: The Card Reader on the back of the scanner is not detachable. Please do not attempt to remove it. DocuMate 272 Scanner User’s Guide...
  • Page 10 2. Insert the pins on each side of the output tray into the holes on the scanner. 3. Flip open the extension on the output tray so it is fully extended. 4. Proceed to “Step 2: Install the Software.” DocuMate 272 Scanner User’s Guide...

  • Page 11: Step 2: Install The Software

    Make sure the CD drive’s door is completely shut. • Open Windows Explorer and double-click the icon for your CD-ROM drive. From the list of files on the CD, double-click the file named START32.EXE. 3. On the installation menu, select Install Products. DocuMate 272 Scanner User’s Guide...
  • Page 12 PaperPort and install PaperPort 9.0 while retaining all of your PaperPort files. 7. On the License Agreement window, read the ScanSoft license agreement. If you accept the terms, select I accept the terms in the license agreement, and then click Next. DocuMate 272 Scanner User’s Guide...
  • Page 13 13. Choose the option you want. Full Feature Install—This is the recommended installation. It installs the Xerox One Touch 4.0 software that provides the necessary driver software for the scanner’s buttons. It also installs scanning interfaces for Twain, Microsoft’s Windows Image Acquisition, and the ISIS driver.
  • Page 14 Installation 15. On the Welcome to the One Touch 4.0 Setup Wizard window, click Next. 16. On the Xerox License Agreement window, read the license agreement. If you accept the terms, select I Agree, and click Next. During installation of the Full Feature Install you will see this window asking you to select one of the images for your Color Space setting.

  • Page 15: Custom Installation

    If you select a custom installation and later decide to upgrade to a Full Feature Installation or one of the other Custom Installations, you must first uninstall the scanner and the custom installation. See the steps on page 12. DocuMate 272 Scanner User’s Guide...
  • Page 16 TWAIN only—The TWAIN driver is installed, but the ISIS driver is not. One Touch 4.0 Service will not run and you can only use the “Xerox DocuMate 272” TWAIN driver. You will not be able to use the Kofax TWAIN driver, or use WIA.
  • Page 17 Control Panel, double-click the System icon, select the Hardware tab, and click the Device Manager button. In the list of devices, select Imaging Devices, and select your Xerox DocuMate 272. Choose Uninstall from the Action menu. 2. Unplug the USB cable.

  • Page 18: Step 3: Connect And Power On The Scanner

    Step 3: Connect and Power On the Scanner Connect the power supply and power cord, and then turn the power on. To connect your Xerox DocuMate 272 scanner: 1. Plug the power supply into the power port on the scanner. NOTE: Only use the power supply (SA60-24 made by Sino- American) included with your scanner.

  • Page 19: Step 4: Connect The Usb Cable

    Installation Step 4: Connect the USB Cable The Xerox DocuMate 272 scanner connects to any available USB port. Check your computer’s manual for USB port locations. NOTE: You can connect the scanner to your computer while the computer is running.
  • Page 20 You can also click More to see a quick overview about accessing and navigating the One Touch Button Panel. When you’re finished reading the additional information, click OK. The scanner’s status light is green when the scanner and computer are communicating properly. DocuMate 272 Scanner User’s Guide...
  • Page 21 If you removed the CD from the CD drive and want to install other software, reinsert the CD Disc 1 into the drive. In addition to installing the other software from the CD, you can also view and print the User Guides. DocuMate 272 Scanner User’s Guide...

  • Page 22: Additional Applications Available With Your Scanner

    2. See the following table to decide which software you would like to install. 3. Then click in the boxes of the other software you want to install, and click Install Now. Follow the instructions on the screen to install each of the additional products. DocuMate 272 Scanner User’s Guide...
  • Page 23 Main Menu window and click User Guides. 5. Click the links of the Guides you want. 6. When you’re finished, click Exit on the Main Menu window and save your CD in a safe place. DocuMate 272 Scanner User’s Guide...

  • Page 24: Register Your Scanner

    Your RegID is very important because you will need it when accessing free telephone support, or checking for online updates. 4. Write down your RegID below so you will always know where to find it. RegID:_________________________________ DocuMate 272 Scanner User’s Guide...

  • Page 25: Scanning

    Scanning Scanning Your Xerox DocuMate 272 scanner scans paper documents placed in the Document Feeder, as well as medical cards and credit cards placed in the Card Reader. To scan documents, photos, magazine articles, business cards, and other paper items, use the Document Feeder.

  • Page 26: Load And Scan Documents

    NOTE: If a card is in the Card Reader, the automatic document feeder will not scan the page. The Card Reader must be empty when scanning from the automatic document feeder. DocuMate 272 Scanner User’s Guide...
  • Page 27 To Cancel scanning, click the Cancel button. To pause the scanning, click the Pause button. It will change to a Continue button. Put the page back into the scanner and click Continue to resume scanning. DocuMate 272 Scanner User’s Guide...

  • Page 28: Check The Scan Settings Before Scanning

    See “Configuring the One Touch Buttons” on page 28 to reset the settings. 2. Click the close boxes on the One Touch Button Panel and the Properties window to close them. DocuMate 272 Scanner User’s Guide...

  • Page 29: Scan From The One Touch Button Panel

    You can reconfigure and rename the buttons for your specific scanning requirements. The scanner begins scanning. When the process finishes, the scanned images appear in the Destination Application, just as if you scanned with the Simplex or Duplex scanner buttons. DocuMate 272 Scanner User’s Guide...

  • Page 30: Using The One Touch Button Panel

    Clicking the icon in either view starts the scanner scanning using the button’s settings. 4. To cycle through the nine buttons, click the arrows on the right side of the panel. Click these arrows to cycle through the 9 buttons. DocuMate 272 Scanner User’s Guide...
  • Page 31 Sketches, and the Destination Application to Microsoft Paint, or some other drawing program. See “Configuring the One Touch Buttons” on page 28 to change the settings of the buttons on the One Touch Button Panel. DocuMate 272 Scanner User’s Guide...

  • Page 32: The Default One Touch Settings On Your Scanner

    In addition to scanning from the scanner buttons and the One Touch Button Panel, you can scan directly from PaperPort and other software applications. See the sections “Scanning from PaperPort,” and “Scanning with the Windows Image Acquisition,” for details. DocuMate 272 Scanner User’s Guide...

  • Page 33: Configuring The One Touch Buttons

    CD, scanning and converting text directly into an HTML web page, and scanning with optical character recognition (OCR) that turns a scanned image into text that you can edit. DocuMate 272 Scanner User’s Guide...
  • Page 34 Xerox DocuMate 272 scanner. For example, on the figure below, the option “Use Document Feeder” is selected and “grayed out” because the Xerox DocuMate 272 is an ADF scanner and always uses the document feeder, so there’s no reason for you to select it. If you use the One Touch application with other Xerox scanners, grayed out options become active, if appropriate.
  • Page 35 The button names indicate their file types. See “Selecting Page Format Options” on page 39 for more about the formats. Options tab—Displays a window for selecting options related to the selected destination application for the scanned image. DocuMate 272 Scanner User’s Guide...

  • Page 36: Selecting New Settings For A Button

    OCR (such as Text, RTF, Word, sPDF, or nPDF), the text in scanned images is automatically converted to word processing text. See “Scanning with Optical Character Recognition (OCR)” on page 55 for details. 3. From the Select Configuration list, select a scan configuration. DocuMate 272 Scanner User’s Guide...

  • Page 37: Setting Destination Application Properties

    Click a Destination Application. Click the Properties button A One Touch 4.0 Link Properties dialog box appears for the type of Destination Application you selected, and the available options are for that type of application. DocuMate 272 Scanner User’s Guide...
  • Page 38 2. Click OK. 3. Click OK or Apply on the One Touch Properties window. When PaperPort opens after you finish scanning, the thumbnails of your scanned documents are on the Desktop in that folder. DocuMate 272 Scanner User’s Guide...

  • Page 39: Text Documents Properties

    This could occur if you scanned a photograph with a One Touch button set for text applications. Show message if text recognition failed—A message will appear on the screen if the OCR reader does not detect text in the image. DocuMate 272 Scanner User’s Guide...
  • Page 40 The boxes you select here determine the Page Format icons that appear on the One Touch Properties window for that group of applications. 5. Click the Add button. 6. Click OK or Apply on the One Touch Properties window. DocuMate 272 Scanner User’s Guide...

  • Page 41: Image Documents Properties

    2. To add another application to the list, click the Add Application button. See the steps on page 35 to add an application to the list. 3. Click OK. 4. Click OK or Apply on the One Touch Properties window. DocuMate 272 Scanner User’s Guide...

  • Page 42: Storage Properties

    Show message when ready to burn 5" CD (700MB), should be selected. You’ll see a message when it’s time to click the Burn to CD button. 4. Click OK. 5. Click OK or Apply on the One Touch Properties window. DocuMate 272 Scanner User’s Guide...

  • Page 43: Email Properties

    4. If you need to set or change any internet options for AOL click the Internet Options button. The Windows Internet Options Control Panel appears. See your Windows documentation and AOL user manual for the settings on the Windows Control Panel. DocuMate 272 Scanner User’s Guide...

  • Page 44: Selecting Page Format Options

    BMP and TIFF are standard image file formats generally used if you want to do additional image processing, such as photo touch-up or color correction. Both of those file formats tend to be larger than the JPEG format. DocuMate 272 Scanner User’s Guide...
  • Page 45 JPG or PDF selected as the Page Format are not affected, so you can set the JPEG or PDF file size/image quality independently for each button. 4. Click OK or Apply on the One Touch Properties window. DocuMate 272 Scanner User’s Guide...

  • Page 46: Text Formats

    1. Select the Destination Application. 2. Right-click on the text format icon. A menu appears. The following figure shows samples for different formats. Example menu for the Example menu for the DOC text format. nPDF text format. DocuMate 272 Scanner User’s Guide...
  • Page 47 Searching for Text” on page 62 for details. 4. To change the OmniPage OCR settings, choose OCR Options. This menu selection is not available when the Destination Application is NotePad or Microsoft Internet Explorer. DocuMate 272 Scanner User’s Guide...

  • Page 48: Renaming A One Touch Button

    The button is now renamed. Selecting Options for a Button The One Touch Options determine the types of Destination Applications available for a button, as well as the location of the files of your scanned items. DocuMate 272 Scanner User’s Guide...
  • Page 49 Select this option if you want OCR processing to convert your scanned documents to text that you can edit. See “Scanning with Optical Character Recognition (OCR)” on page 55 for more about OCR. DocuMate 272 Scanner User’s Guide...
  • Page 50 .doc or .jpg. If you also want to group them by date you can choose the week and month options. 5. Click OK to save the options for the selected button. DocuMate 272 Scanner User’s Guide...

  • Page 51: Creating A New Scan Configuration

    If you want to start from the settings of another configuration, select the configuration, then click the Copy button. If the Scan Settings tab is not selected, click it. 4. On the Scan Configuration Properties dialog box, type a name. DocuMate 272 Scanner User’s Guide...
  • Page 52 Brightness and Contrast—Sometimes an item is scanned with the brightness and contrast set too light or too dark. For example, a note written with a light pencil may need to be scanned darker to improve legibility. DocuMate 272 Scanner User’s Guide...
  • Page 53 For single-sided scans, the scan area is the size of the image. For double-sided scans, the scan area is the size of the larger of the two areas on the front and back of the page. DocuMate 272 Scanner User’s Guide...
  • Page 54 Skip Blank Originals—Skips pages that are completely blank. Typically you use this option when you will scan a stack of two-sided pages which have a number of blank sides. This option is only available for Duplex scanning. DocuMate 272 Scanner User’s Guide...
  • Page 55 As you do, the image changes to show the effects of the new settings. 10. Click OK to save the new configuration. It will now appear in the list of Scan Configurations on the One Touch Properties window for the appropriate Destination applications. DocuMate 272 Scanner User’s Guide...
  • Page 56 Advanced—Click to see additional settings for the device. The dialog that appears is specific to the device. For example, if the device is your printer, the dialog box is your printer’s setup settings. 2. Click OK or Apply. DocuMate 272 Scanner User’s Guide...
  • Page 57 3. Click the Browse button to specify the location to store the scanned documents, or type a location directly into the box. 4. Click OK or Apply. DocuMate 272 Scanner User’s Guide...

  • Page 58: Editing Or Deleting Scan Configurations

    Lock icon to unlock the configuration. Clicking it toggles between locking and unlocking the configuration. Click the Lock icon to toggle between locked and unlocked. 5. Edit the settings and click OK. 6. Click OK to close the dialog box. DocuMate 272 Scanner User’s Guide...

  • Page 59: Configuring Before Scanning

    Windows Image Acquisition” on page 95. NOTE: The WIA option is only available if your computer is running Microsoft Windows XP or Me. 5. Click OK or Apply on the One Touch Properties window. DocuMate 272 Scanner User’s Guide...

  • Page 60: Scanning With Optical Character Recognition (Ocr)

    You must have installed the OmniPage Pro 12 software on your computer in order to use the OCR options with the One Touch 4.0 software and your Xerox DocuMate 272 scanner. One Touch 4.0 and OmniPage Pro 12 work together to combine scanning with OCR processing into one integrated step.
  • Page 61 Applications that use the text format as their file type. 3. Select the Destination Application to get one of the text format file types as the page format. 4. Right-click on the page format icon to see the menu. DocuMate 272 Scanner User’s Guide...
  • Page 62 OCR proofreading process to recognize as legitimate words. For example, if you scan documents with highly technical terms not found in typical dictionaries, you can add them to your personal dictionary. You DocuMate 272 Scanner User’s Guide...
  • Page 63 OCR process to use to recognize text. However, not all of the fonts may be selected for the OCR process. Using Font Matching you can select the fonts on your computer that match the fonts in your documents. DocuMate 272 Scanner User’s Guide...
  • Page 64 The choices are After last page, After current page, Before current page, and Before first page. Automatically prompt for more pages—Select this option if the document is too big to fit into the scanner’s paper guide. DocuMate 272 Scanner User’s Guide...
  • Page 65 8. Click the Format tab and choose the options you want from the Format window. Note that as you select formats, the image changes to represent the selection so you can see, at a glance, what the layout will look like. DocuMate 272 Scanner User’s Guide...
  • Page 66 This is done wherever possible with column and indent settings, but not with text boxes or frames. Text will then flow from one column to the other, which does not happen when text boxes are present. DocuMate 272 Scanner User’s Guide...

  • Page 67: Scanning With Spdf Or Npdf And Searching For Text

    3. Select a Destination Application that uses a text format as the page format. 4. Right-click on the text format icon. 5. Choose the Searchable PDF or Normal PDF option for the page format. DocuMate 272 Scanner User’s Guide...
  • Page 68 9. To search for the text, open Adobe Acrobat Reader or Adobe Acrobat. 10. From the Adobe Acrobat File menu choose Open, and open the file you just scanned. 11. From the Adobe Acrobat Edit menu choose Find. The Find dialog box appears. DocuMate 272 Scanner User’s Guide...

  • Page 69: Scan And Burn To A Cd

    Scan and Burn to a CD If you have a CD burner attached to your computer, you can scan directly from your Xerox DocuMate 272 scanner onto a CD. This feature is available only on computers running Windows XP. To scan and burn to a CD: 1.

  • Page 70: Scanning With Event Forwarding

    To scan with event forwarding: 1. Open the One Touch Properties window. 2. Using the arrows, choose a button to use for the event forwarding. DocuMate 272 Scanner User’s Guide...
  • Page 71 A dialog box appears for you to select the application to use for scanning. 7. Select the application in the box and click OK. Now the application you selected opens and you can continue the scanning from that application’s TWAIN interface. DocuMate 272 Scanner User’s Guide...

  • Page 72: Creating An Html Web Page From Your Scanned Documents

    Microsoft Explorer as one of its Destination Applications. 3. Select Microsoft Explorer as the Destination Application. 4. Choose HTML as the Page Format. Choose HTML 5. Choose a Scan Configuration. 6. Click Apply or OK. DocuMate 272 Scanner User’s Guide...
  • Page 73 If you want to see what the page will look like on your web site, click on it. 9. You can now use Microsoft Internet Explorer or other application to post the document to your web page as you would any other HTML page. DocuMate 272 Scanner User’s Guide...

  • Page 74: Transferring Scanned Documents To Storage

    Button 7 is on the panel, then click Button 7. Your scanned pages are stored in the location that you specified on the One Touch 4.0 Link Properties window. Your scanned documents will be stored at this location. DocuMate 272 Scanner User’s Guide...
  • Page 75 6. Click Apply or OK. 7. Now start scanning using Button 7 (or other button you set up for archiving). When scanning is finished, the documents are saved in the text file format and in the location you specified. DocuMate 272 Scanner User’s Guide...

  • Page 76: Checking The Hardware And Setting The Lamp Power Saving

    The Hardware icon If the Hardware View of the panel is open you can also right- click on the DM272 icon. The Hardware Properties dialog box appears and shows information about your Xerox DocuMate 272 scanner. DocuMate 272 Scanner User’s Guide...
  • Page 77 To turn the lamp on and off manually without turning off power to the scanner, click the Lamp On or Lamp Off buttons. To return the scanner to its factory settings, click Reset Device. 4. Click OK to save the changes and close the dialog box. DocuMate 272 Scanner User’s Guide...

  • Page 78: Scanning From Paperport

    NOTE: When scanning, the Basic Interface or Advanced Interface opens right away (without opening PaperPort first) if the button you’re using to scan is set to Configure Before Scan, and the selected option is TWAIN. DocuMate 272 Scanner User’s Guide...

  • Page 79: Scanning From The Basic Interface Or Advanced Interface

    2. Click the Scan icon on the PaperPort command bar. The Folders pane (which shows folders for organizing your scanned images) is replaced by the Scan pane. Scan pane Choose Xerox DocuMate 272 from here DocuMate 272 Scanner User’s Guide...

  • Page 80: Selecting Settings

    Scanning from PaperPort 3. From the Scanner list, choose TWAIN: Xerox DocuMate 272. 4. In the “Scan what?” section, choose to scan a Document or Photograph. If you want to change the format of the scanned item’s file name or file type before you start scanning, click Settings. The default file type for documents is .pdf and the default for...
  • Page 81 For example, to name your scanned items Photograph, type the word Photograph in the box. From then on, each scanned item is named Photograph and is numbered sequentially, Photograph (1), Photograph (2), and so on. DocuMate 272 Scanner User’s Guide...
  • Page 82 The Good Quality and Lower Quality options produce reasonably good images. To select your own option, click Custom and drag the slider. Click OK. DocuMate 272 Scanner User’s Guide...

  • Page 83: Scanning From The Basic Interface

    Then just click the Scan button. 4. Adjust the brightness, contrast, and resolution until the picture is what you want. You can also change the picture type again, for example, from color to grayscale. DocuMate 272 Scanner User’s Guide...
  • Page 84 The page counter underneath the thumbnail name shows which page you’re viewing. • The small icon at the bottom right corner of the thumbnail image indicates the file format of the scanned item. DocuMate 272 Scanner User’s Guide...
  • Page 85 To open the Help Topics window, press the F1 key or choose PaperPort Help from the Help menu. You can also refer also to the PaperPort Getting Started Guide and PaperPort User’s Guide on the CD. DocuMate 272 Scanner User’s Guide...

  • Page 86: Scanning From The Advanced Interface

    Click the - (minus) sign to collapse the list. • Black&White is for letters, memos, pen and ink drawings, and other black and white material. This setting produces the smallest file size for scanned items. DocuMate 272 Scanner User’s Guide...
  • Page 87 Preview button again. Readjust the settings if necessary. 9. When you’re satisfied with the image, load all the documents into the paper guide and click the Scan button. DocuMate 272 Scanner User’s Guide...
  • Page 88 If the Single page items check box is not selected, thumbnails do not appear until you indicate the scanning job is finished. See “The Single Page Items Check Box” on page 80. 12. Use the PaperPort software to work with the image. DocuMate 272 Scanner User’s Guide...

  • Page 89: Load And Scan Credit Cards And Identification Cards

    For Duplex (two-sided) scans, the card can be face up or down because both sides are scanned. NOTE: Do not use the Card Reader to scan business cards. They can jam the Reader’s mechanism. Use the Document Feeder to scan business cards. DocuMate 272 Scanner User’s Guide...
  • Page 90 9. When you’re finished scanning cards, click Done to close the Advanced Interface. When scanning is finished, a thumbnail image of the scanned card appears on the PaperPort desktop. If you’re scanning multiple cards, they appear as PaperPort stacks. DocuMate 272 Scanner User’s Guide...

  • Page 91: Adjusting The Image With The Advanced Interface

    Saturation, and Hue) Scan Size NOTE: The list of scan settings for a configuration applies only to that type of configuration. For example, the Black&White Configuration does not have a setting for adjusting the Color Hue. DocuMate 272 Scanner User’s Guide...

  • Page 92: Adjusting The Resolution

    (dpi). The higher the resolution, the finer the details. However, higher dpi settings also take longer to scan and produce larger files sizes. Usually the higher resolution settings are used for precision work, such as photographs or fine artwork. DocuMate 272 Scanner User’s Guide...
  • Page 93 You can also type a number directly into the resolution setting box, or click the up and down arrows to increase or decrease the setting. The resolution settings on your DocuMate 272 scanner range from 50 dpi to 600 dpi.

  • Page 94: Adjusting The Brightness And Contrast

    You can also type a number directly into the brightness or contrast setting boxes, or click the up and down arrows next to the box to increase or decrease the setting. 3. Click Reset to return the settings to their original numbers DocuMate 272 Scanner User’s Guide...

  • Page 95: Adjusting Gamma, Saturation, And Color Hue

    You can also preview the item and use the Auto Trim option to automatically sense the edges of the page, and eliminate the sections outside of the edges. DocuMate 272 Scanner User’s Guide...
  • Page 96 The following figure shows an example of a manually selected area. This is the image that appears on the PaperPort desktop when scanning is finished. The Scan Info box shows the The selected scan area. size and position of the area. DocuMate 272 Scanner User’s Guide...

  • Page 97: The Ruler Units

    Preview window Size of the file of the scanned image Current location of the pointer as you drag it on the Preview window The space on your computer’s hard drive DocuMate 272 Scanner User’s Guide...

  • Page 98: Creating A New Advanced Interface Profile

    To change or delete a profile you created: 1. Select your profile from the configuration list. 2. Make changes to the profile as needed, and then click Save. 3. If you want to delete the selected profile, click Delete. DocuMate 272 Scanner User’s Guide...

  • Page 99: Display The Device Configuration

    1. Click the Device Configuration button. The Device configuration window shows the information about your scanner. See the section “Checking the Hardware and Setting the Lamp Power Saving” on page 71 for more information about the device settings. DocuMate 272 Scanner User’s Guide...

  • Page 100: Scanning With The Windows Image Acquisition

    2. Click the Scan icon on the PaperPort command bar. The Folders pane is replaced by the Scan pane. 3. From the Scanner list, select WIA: XEROX DocuMate 272. 4. In the “Scan what?” section, choose to scan a Document or Photograph.
  • Page 101 12. Preview the image again. When you are satisfied with the image, click the Scan button. If the Single page items check box is selected on the Scan pane, the scanned item appears as a thumbnail on the PaperPort desktop. DocuMate 272 Scanner User’s Guide...
  • Page 102 To select the scanner settings before you scan: 1. On the scan window, click Adjust the quality of the scanned picture. The Advanced Properties dialog box opens. DocuMate 272 Scanner User’s Guide...
  • Page 103 3. Click OK. The Custom Settings button is now set to scan with the options you selected. If you want to reset the settings and start over, click Reset. DocuMate 272 Scanner User’s Guide...

  • Page 104: Scanning With The Isis Interface

    ISIS is selected by right-clicking on the Configure Before Scan configuration and selecting it from the menu. Right-click on Configure Before Scan to get the menu, and choose ISIS to use it as the interface to configure before scan. DocuMate 272 Scanner User’s Guide...
  • Page 105 GrayScale in case you decide to scan with it instead. 4. When you’re ready to scan, replace the preview page in its original position in your document and then press Scan All. The document is scanned with the new scan settings. DocuMate 272 Scanner User’s Guide...

  • Page 106: Adjusting The Isis Scan Settings

    (dpi). Your Xerox DocuMate 272 scanner can scan at up to 600 dpi. Page—Click the menu arrow and choose a page size. Your Xerox DocuMate 272 scanner can scan a page up to 8.5" x 14". 2. Click OK. DocuMate 272 Scanner User’s Guide...
  • Page 107 Dither selection so you can see which one is best for scanning. Dots per inch—Click the menu arrow and choose a resolution (dpi). Your Xerox DocuMate 272 scanner can scan at up to 600 dpi. DocuMate 272 Scanner User’s Guide...
  • Page 108 Scanning from PaperPort Page Size—Click the menu arrow and choose a page size. Your Xerox DocuMate 272 scanner can scan a page up to 8.5" x 14". Brightness—Drag the sliders or click the arrows to the right or left to adjust the brightness in small increments. Click the buttons Darken, Normal, or Lighten to move the slide in larger steps.

  • Page 109: Scanning From Isis In Other Applications

    Xerox DocuMate 272 scanner. The Scanner Selection dialog box will then appear. 2. Select Xerox DocuMate 272 from the list of scanners and click Your scanner is then ready to work with the QuickScan 3.x ISIS driver.

  • Page 110: Maintenance

    3. Wipe the feed roller from side to side. Rotate the roller to clean its entire surface. 4. Wipe the pad from top to bottom. Be careful not to snag the swab on the springs on either side of the pad. 5. Close the cover when you’re finished. DocuMate 272 Scanner User’s Guide...

  • Page 111: Clearing Paper Jams

    2. Remove the jammed paper and close the cover. To reduce the number of paper jams, smooth and straighten the paper before scanning and adjust the guides to the paper size. DocuMate 272 Scanner User’s Guide...

  • Page 112: Replacing The Adf Pad Assembly

    Problems with documents feeding into the ADF is an indication that the pad spring may be wearing out. See the “Xerox DocuMate 272 Scanner Parts List” on page 114 for ordering information. To replace the ADF Pad assembly: 1.

  • Page 113: Troubleshooting

    Start the PaperPort software and click the Scan icon, and then make sure Xerox DocuMate 272 is selected as the scanner. Problem: During installation I got the error message: PaperPort Installation is not complete. What do I do? The installation procedure was not successful.

  • Page 114: Status Light Troubleshooting Codes

    The LED blinks back and forth between “E” and the error code number (such as 6). The red light flashes the number of times as the error code (6 in this example). The table below describes the error codes. DocuMate 272 Scanner User’s Guide...
  • Page 115 See the steps on page 71 to turn the lamp on and off. Re- boot your computer. If the problem persists, contact Xerox Technical Support. Paper jam See “Clearing Paper Jams” on page 106. DocuMate 272 Scanner User’s Guide...

  • Page 116: Uninstalling Your Scanner

    Maintenance Uninstalling Your Scanner To uninstall the DocuMate 272 scanner, remove the One Touch software first, and then remove PaperPort, or other scanner software. Step 1: Uninstalling the Scanner and One Touch Software 1. On the Windows taskbar, click Start, point to Settings, and then click Control Panel.

  • Page 117: Step 2: Uninstalling The Paperport Software

    4. A message window opens, asking if you are sure you want to remove PaperPort 9 from your computer. Click Yes. The PaperPort software is removed. 5. Close all open windows and restart your computer. DocuMate 272 Scanner User’s Guide...

  • Page 118: Xerox Documate 272 Scanner Specifications

    Maintenance Xerox DocuMate 272 Scanner Specifications Optical resolution 600 x 1200 dpi Bit depth 48-bit color (internal) Maximum item size 8.5” x 14” Minimum item size 3.5” x 2” (automatic document feeder) Scan method Automatic document feeder (ADF) ADF specifications Scanning Speed Up to 33 pages per minute.

  • Page 119: Xerox Documate 272 Scanner Parts List

    Maintenance Xerox DocuMate 272 Scanner Parts List Please use the following part names and numbers when ordering replacements for your scanner. Part Name Part Number Paper Guide 57-0104-000 Output Tray 57-0105-000 ADF Pad 57-0103-000 AC Power Cord 35-0071-000 Power Supply...

  • Page 120: Notices

    Stamps and other representatives of value, of whatever denomination, which have been or may be issued under any Act of Congress. 2. Adjusted Compensation Certificates for Veterans of the World Wars. 3. Obligations or Securities of any Foreign Government, Bank, or Corporation. DocuMate 272 Scanner User’s Guide...

  • Page 121: It's Illegal In Canada

    2. Obligations or securities of a government or bank. 3. Exchequer bill paper or revenue paper. 4. The public seal of Canada or of a province, or the seal of a public body or authority in Canada, or of a court of law. DocuMate 272 Scanner User’s Guide...

  • Page 122: Federal Communications Commission (Fcc) For Usa

    Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. DocuMate 272 Scanner User’s Guide...

  • Page 123: Energy Star For The Usa

    ASK-XEROX) to determine whether this Xerox product is part of the program. If your product is not part of the Xerox program and you are managing its disposal, please note that the product may contain lead and other materials whose disposal may be regulated due to environmental considerations.

  • Page 124: Index

    16 folder pane 74, 95 CD-ROM drive 3 Font Matching 58 Color 47, 82 Format and Page(s) 32 color hue 90 options 90 Color Document 32 gamma 50, 90 Color Document button 101 DocuMate 272 Scanner User’s Guide...
  • Page 125 PDF 40, 45 PDF file size 40 Picture type 98 power saving 72 Microsoft Internet Explorer 68 Preview button 78, 96 Microsoft Outlook 38 preview image 82, 85 Moire Patterns 49, 88 Preview One button 100 DocuMate 272 Scanner User’s Guide...
  • Page 126 7, 31, 40, 42, 62 spreadsheet 61 spreadsheets OCR 56 status light 2, 13, 15, 108 troubleshooting codes 109 Sti event forwarding 45 Storage and CD-R/W 45 Storage Properties 37 Straighten Image 49 system requirements 3 DocuMate 272 Scanner User’s Guide...
  • Page 127 Index DocuMate 272 Scanner User’s Guide...
  • Page 128 05-0671-000...

Table of Contents
