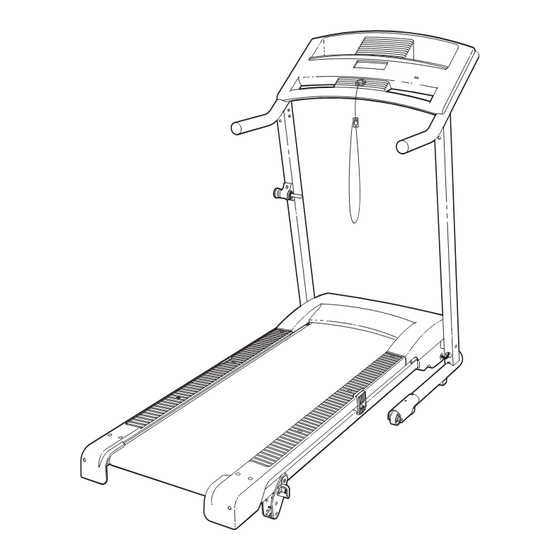

Model No. WLTL29606.1
Serial No.
Write the serial number in the space
above for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
www.proform.com
this equipment. Save this manual
new products, prizes,
for future reference.
fitness tips, and much more!
Visit our website at
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLTL29606.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weslo WLTL29606.1

  • Page 1 Model No. WLTL29606.1 USER'S MANUAL Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are...
  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decal is not shown at actual size. WESLO is a registered trademark of ICON IP, Inc.
  • Page 3: Important Precautions

    2. It is the responsibility of the owner to ensure page 12. To purchase a surge suppressor, see that all users of this treadmill are adequately your local WESLO dealer or call the telephone informed of all warnings and precautions. number on the front cover of this manual and order part number 146148, or see your local 3.
  • Page 4 20. Never leave the treadmill unattended while it is 25. Never drop or insert any object into any running. Always remove the key and unplug opening on the treadmill. the power cord when the treadmill is not in DANGER: use. Always unplug the power cord immediately after use, before cleaning 21.
  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the new WESLO ® CADENCE ual. To help us assist you, note the product model G-40 treadmill. The CADENCE G-40 treadmill combines number and serial number before contacting us. The advanced technology with innovative design to help you...
  • Page 6: Assembly

    2 1/2” Bolt (56)–4 ASSEMBLY Washer (29)–4 Star Washer (81)–4 2 3/4” Bolt (47)–4 Handrail Washer (11)– To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not 4”...
  • Page 7 2. Have a second person hold the Base (52) in the position shown. Identify the Left Upright (53) (the Right Upright Large [54] has a large hole near the lower end). Hole Hold the Left Upright (53) so that the two indi- cated small holes are on top.
  • Page 8 5. See the left inset drawing. Identify a Frame Spacer (11). Hold the Frame Spacer between the Right Upright (54) and the Frame (51). With the help of a second person, raise the front of the Frame until steps 5 and 6 are completed. Attach the Right Upright (54) to the Frame (51) with an M10 x 110mm Bolt (1), an M10 Flat Washer (14), and an M10 Star Washer (9);...
  • Page 9 7. Set the Console (91) face down on a soft sur- face to avoid scratching it. Hold the Right Handrail (33), which has a large hole in the loca- tion shown, near the Console. Console Wire Connector Bracket Next, insert the console wire into the large hole Large in the side of the Right Handrail (33).
  • Page 10 9. With the help of a second person, hold the Console (91) near the Right Upright (54). Remove the wire tie from the Wire Harness (39) and the console wire. Connect the Wire Harness to the console wire. See the inset drawing. The connectors should slide together easily and snap into place.
  • Page 11 12. See the lower drawing. Position the Uprights (53, 54) so that the treadmill Frame (51) is cen- tered between the Uprights. Firmly tighten the two M10 x 110mm Bolts (1) and the four M10 x 58mm Bolts (2). Be careful not to overtighten the M10 x 110mm Bolts.
  • Page 12: Operation And Adjustment

    Grounded Outlet Box drawing 1 at the right). To purchase a surge sup- Adapter pressor, see your local WESLO dealer or call the Surge Suppressor telephone number on the front cover of this man- ual and order part number 146148, or see your local electronics store.
  • Page 13 CONSOLE DIAGRAM Thumb Pulse Sensor Note: If there are sheets of clear plastic on the console, remove the plastic. Clip FEATURES OF THE CONSOLE HOW TO TURN ON THE POWER IMPORTANT: If the treadmill has been exposed to The treadmill console offers a selection of features designed to make your workouts more effective.
  • Page 14 HOW TO USE THE MANUAL MODE The lower left display— As you exercise, the 1. Insert the key into the console. lower left display can show the elapsed time See HOW TO TURN ON THE POWER on page 13. and the distance that you have walked or run.
  • Page 15 Measure your heart rate if desired. Each program consists of 30 one-minute periods. One speed setting is programmed for each period. To measure your heart rate, stand on the foot Note: The same speed setting may be pro- rails and place your thumb on the pulse sensor grammed for two or more consecutive periods.
  • Page 16 HOW TO CHANGE THE INCLINE OF THE TREADMILL To vary the intensity of your exercise, you can change the incline of the treadmill. There are three incline lev- Incline Incline els. Before changing the incline, remove the key and unplug the power cord. Next, fold the treadmill Incline to the storage position (see page 17).
  • Page 17: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill. Frame 1.
  • Page 18 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Next, lower the frame until it is past the latch pin.
  • Page 19: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
  • Page 20 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 12. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- 2–3 in.
  • Page 21: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 22 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 23: Part List

    PART LIST—Model No. WLTL29606.1 R0807A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description M10 x 110mm Bolt Rear Roller M10 x 58mm Bolt Motor Belt...
  • Page 24: Exploded Drawing

    EXPLODED DRAWING A—Model No. WLTL29606.1 R0807A...
  • Page 25 EXPLODED DRAWING B—Model No. WLTL29606.1 R0807A 42 21...
  • Page 26 EXPLODED DRAWING C—Model No. WLTL29606.1 R0807A 43 43...
  • Page 27 EXPLODED DRAWING D—Model No. WLTL29606.1 R0807A...
  • Page 28: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when calling: • the model number and serial number of the product (see the front cover of this manual) •...
