Weslo WLTL29606.0 User Manual

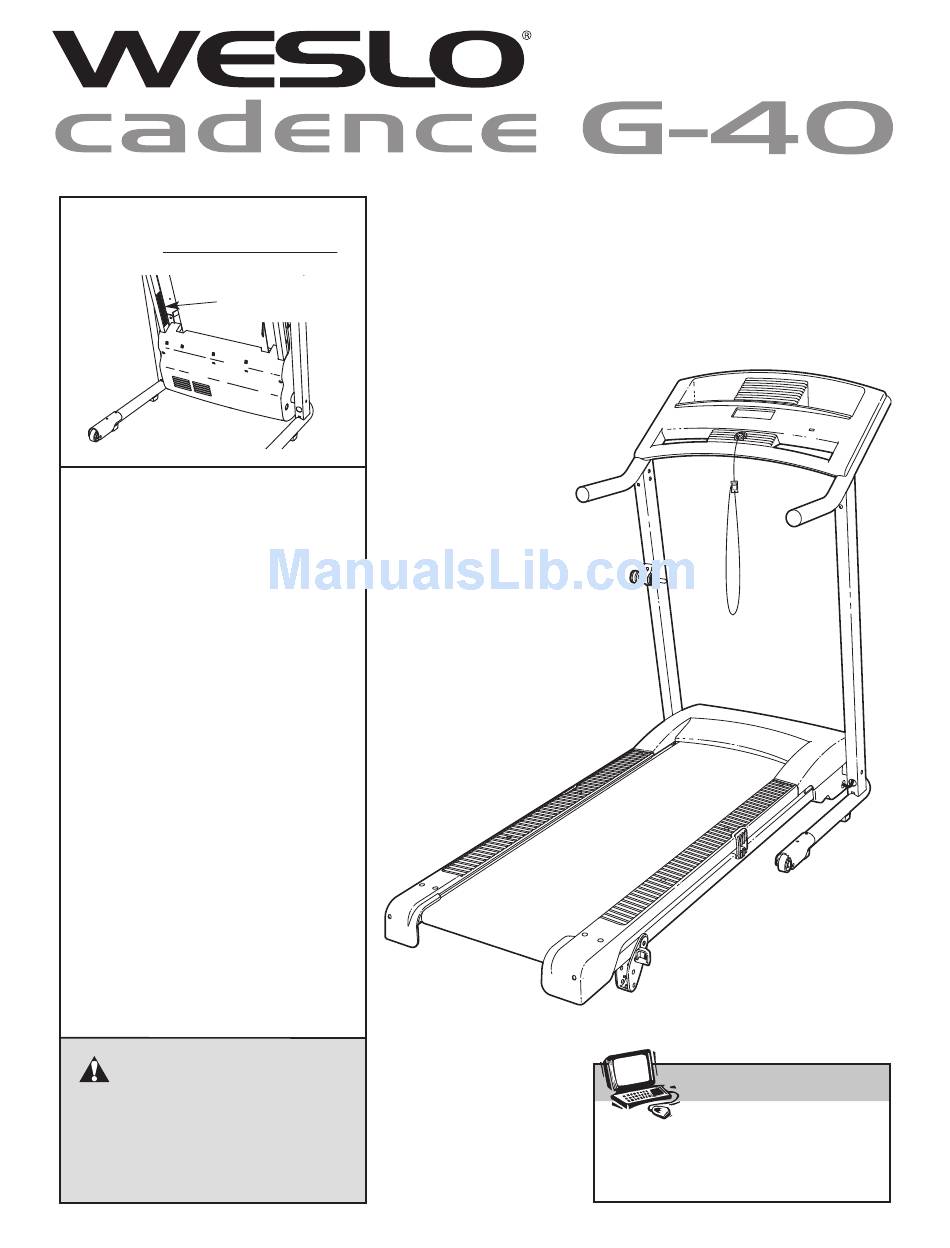

Cadence g-40
Hide thumbs

Advertisement

Table of Contents

Model No. WLTL29606.0
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Meijer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLTL29606.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Weslo WLTL29606.0

Summary of Contents for Weslo WLTL29606.0

  • Page 1 Meijer.com Model No. WLTL29606.0 Serial No. USER'S MANUAL Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.

  • Page 2: Table Of Contents

    LIMITED WARRANTY ............. . .Back Cover WESLO is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    12. To purchase a surge suppressor, see You must be able to safely lift 45 pounds (20 your local WESLO dealer or call the toll-free kg) to raise, lower, or move the treadmill. telephone number on the front cover of this...
  • Page 4 Meijer.com 21. When folding or moving the treadmill, make the treadmill, and before performing the main- sure that the storage latch is fully closed. tenance and adjustment procedures de- scribed in this manual. Never remove the 22. Do not change the incline of the treadmill by motor hood unless instructed to do so by an placing objects under the treadmill.

  • Page 5: Before You Begin

    The G-40 treadmill. The CADENCE G-40 treadmill combines model number of the treadmill is WLTL29606.0. The advanced technology with innovative design to help you serial number can be found on a decal attached to the...

  • Page 6: Assembly

    Meijer.com ASSEMBLY To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant.
  • Page 7 Meijer.com 2. Have a second person hold the Base (52) in the position shown. Identify the Left Upright (53) (the Right Upright [54] Large has a large hole near the lower end). Hole Hold the Left Upright (53) so the two small holes for the latch assembly are on top as shown.
  • Page 8 Meijer.com 5. See the left inset drawing and identify a Frame Spacer (11). Hold the Frame Spacer between the Right Upright (54) and the Frame (51). Attach the Right Upright to the Frame with an M10 x 110mm Bolt (1), an M10 Flat Washer (14), and an M10 Star Washer (9);...
  • Page 9 Meijer.com 7. Set the Console (91) face down on a soft sur- face to avoid scratching it. Hold the Right Handrail (33), which has a large hole in the loca- tion shown, near the Console. Connector Console Wire Bracket Next, insert the console wire into the large hole Large in the side of the Right Handrail (33).
  • Page 10 Meijer.com 9. With the help of a second person, hold the Console (91) near the Right Upright (54). Remove the wire tie from the Wire Harness (39) and the console wire. Connect the Wire Harness to the console wire. Make sure to connect the connectors properly (see drawing 9a).
  • Page 11 Meijer.com 12. See the lower drawing. Position the Uprights (53, 54) so that the treadmill Frame (51) is cen- tered between the Uprights. Firmly tighten the two M10 x 110mm Bolts (1) and the four M10 x 58mm Bolts (2). Be careful not to overtighten the M10 x 110mm Bolts.

  • Page 12: Operation And Adjustment

    Grounded Outlet Box drawing 1 at the right). To purchase a surge sup- Adapter pressor, see your local WESLO dealer or call the Surge Suppressor toll-free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store.
  • Page 13 Meijer.com CONSOLE DIAGRAM Thumb Pulse Sensor Note: If there are sheets of clear plastic Clip on the console, remove the plastic. FEATURES OF THE CONSOLE HOW TO TURN ON THE POWER The treadmill console offers a selection of features Plug in the power cord (see designed to make your workouts more effective.
  • Page 14 Meijer.com The lower left HOW TO USE THE MANUAL MODE display—As you exer- cise, the lower left dis- play can show the Insert the key into the console. elapsed time and the distance that you have See HOW TO TURN ON THE POWER on page 13. walked or run.
  • Page 15 Meijer.com The profiles on the console show how the speed Measure your heart rate if desired. of the walking belt will change during the pro- grams. To measure your heart rate, stand on the foot rails and place your thumb on the pulse sensor (see the drawing on page 13).
  • Page 16 Meijer.com HOW TO CHANGE THE INCLINE OF THE TREADMILL To vary the intensity of your exercise, you can change the incline of the treadmill. There are three incline lev- Incline Incline els. Before changing the incline, remove the key and unplug the power cord. Next, fold the treadmill Incline to the storage position (see page 17).

  • Page 17: How To Fold And Move The Treadmill

    Meijer.com HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill. Frame 1.
  • Page 18 Meijer.com HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Next, lower the frame until it is past the latch pin.

  • Page 19: Maintenance And Troubleshooting

    Meijer.com MAINTENANCE AND TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
  • Page 20 Meijer.com PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 12. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may be- 2–3"...

  • Page 21: Conditioning Guidelines

    Meijer.com CONDITIONING GUIDELINES uses easily accessible carbohydrate calories for en- WARNING: ergy. Only after the first few minutes does your body Before beginning this begin to use stored fat calories for energy. If your goal or any exercise program, consult your physi- is to burn fat, adjust the speed and incline of the tread- cian.
  • Page 22 Meijer.com SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 23: Part List

    Meijer.com PART LIST—Model No. WLTL29606.0 R0207B To locate the parts listed below, see the EXPLODED DRAWING on pages 24 to 27. Key No. Qty. Description Key No. Qty. Description M10 x 110mm Bolt Right Upright M10 x 58mm Bolt Rear Roller...

  • Page 24: Exploded Drawing

    Meijer.com EXPLODED DRAWING A—Model No. WLTL29606.0 R0207B...
  • Page 25 Meijer.com EXPLODED DRAWING B—Model No. WLTL29606.0 R0207B 42 21...
  • Page 26 Meijer.com EXPLODED DRAWING C—Model No. WLTL29606.0 R0207B...
  • Page 27 Meijer.com EXPLODED DRAWING D—Model No. WLTL29606.0 R0207B...

  • Page 28: Ordering Replacement Parts

    • the MODEL NUMBER of the product (WLTL29606.0) • the NAME of the product (WESLO CADENCE G-40 treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED...
