USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WLTL29816C.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weslo WLTL29816C.1

Summary of Contents for Weslo WLTL29816C.1

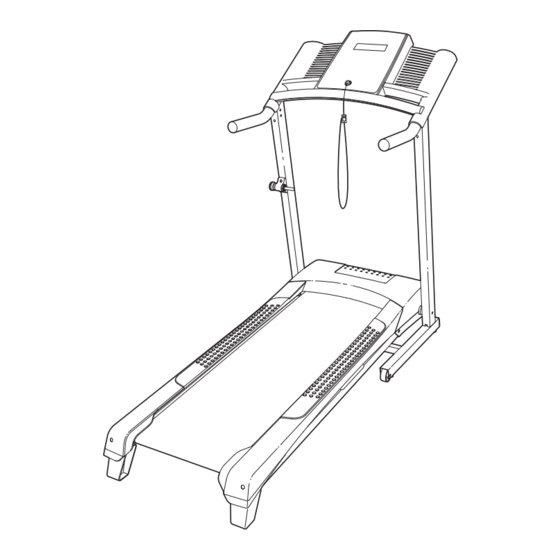

  • Page 1 USER’S MANUAL Model No. WLTL29816C.1 Serial No. Write the serial number in the space above for reference. Serial Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to www.iconservice.ca. CUSTOMER SERVICE Call toll-free 1-888-936-4266 Mon.–Fri.

  • Page 2: Table Of Contents

    305284 WESLO and IFIT are registered trademarks of ICON Health & Fitness, Inc. App store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH word mark and logos are registered trademarks of Bluetooth SIG, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 19. Always stand on the foot rails when starting able to safely lift 45 lbs. (20 kg) to move the or stopping the walking belt. Always hold the treadmill. handrails while using the treadmill. 26. When folding or moving the treadmill, make 20.

  • Page 6: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the new WESLO CADENCE reading this manual, please see the front cover of this ® R 5.2 treadmill. The CADENCE R 5.2 treadmill offers a manual. To help us assist you, note the product model selection of features designed to make your workouts number and serial number before contacting us.

  • Page 7: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 8: Assembly

    ASSEMBLY • Assembly requires two persons. • Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.” • Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing •...
  • Page 9 3. Set the console assembly (A) face down on a soft surface to avoid scratching the console assembly. Identify the Right Handrail (69), which has a large hole (B) in the location shown. Hold the Right Handrail near the console assembly (A). Next, insert the console wire (C) into the large hole (B) in the side of the Right Handrail (69).
  • Page 10 5. With the help of a second person, hold the con- sole assembly (A) near the Right Upright (74). Remove the tie (F) from the Upright Wire (71). See the inset drawing. Connect the Upright Wire (71) to the console wire (G). The connec- tors should slide together easily and snap into place.
  • Page 11 7. Start an M8 x 15mm Screw (2) with an M8 Star Washer (36) into each Upright (73, 74). Firmly tighten all six M8 x 15mm Screws (2). 8. Attach the Storage Latch (42) to the Left Upright (73) with two #10 x 1" Tek Screws (7); start both Tek Screws, and then tighten them.

  • Page 12: How To Use The Treadmill

    HOW TO USE THE TREADMILL HOW TO CONNECT THE POWER CORD more amps. To avoid overloading the circuit, do not plug other electrical devices, except for low- Use a Surge Suppressor power devices such as cell phone chargers, into the surge suppressor or into an outlet on the same Your treadmill, like other electronic equipment, can be circuit.
  • Page 13 CONSOLE DIAGRAM Thumb Heart Rate Monitor Clip FEATURES OF THE CONSOLE To turn on the power, see page 14. To use the man- ual mode, see page 14. To use a preset workout, see page 16. To connect your tablet to the console, The treadmill console offers a selection of features designed to make your workouts more effective and see page 17.
  • Page 14 HOW TO TURN ON THE POWER 3. Start the walking belt. IMPORTANT: If the treadmill has been exposed to To start the walking belt, press the Start button. cold temperatures, allow it to warm to room tem- The walking belt will begin to move at 1 mph. As perature before you turn on the power.
  • Page 15 The lower right 5. Measure your heart rate if desired. display—The lower right display can show You can measure your heart rate using either the the speed of the walking thumb heart rate monitor or a compatible heart rate monitor. For information about purchasing an belt and the approxi- mate number of calories optional chest heart rate monitor, see...
  • Page 16 HOW TO USE A PRESET WORKOUT At the end of each segment, a series of tones will sound. If a different speed setting is programmed 1. Insert the key into the console. for the next segment, the speed setting will flash in the display to alert you and the treadmill will See HOW TO TURN ON THE POWER on page 14.
  • Page 17 HOW TO CONNECT YOUR TABLET TO THE Note: All BLUETOOTH connections between CONSOLE the console and other devices (including any tablets, heart rate monitors, and so forth) will be The console supports BLUETOOTH connections to disconnected. tablets via the iFit Bluetooth Tablet app and to compat- ible heart rate monitors.

  • Page 18: Fcc Information

    HOW TO CHANGE THE INCLINE OF THE TREADMILL To vary the intensity of your exercise, you can change the incline of the treadmill. There are two incline levels. Before changing the incline, remove the key and Incline unplug the power cord. Next, fold the treadmill to the Feet storage position (see page 19).

  • Page 19: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL Before folding the treadmill, remove the key and Before moving the treadmill, fold it as described at unplug the power cord. CAUTION: You must be the left.

  • Page 20: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE b. After the power cord has been plugged in, make sure that the key is inserted into the console. Regular maintenance is important for optimal per- formance and to reduce wear. Inspect and properly c. Check the power switch located on the treadmill tighten all parts each time the treadmill is used.
  • Page 21 SYMPTOM: The walking belt slows when walked on SYMPTOM: The walking belt is off-center or slips when walked on a. Use only a surge suppressor that meets all of the a. If the walking belt is off-center, first remove the specifications described on page 12.

  • Page 22: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 23: Part List

    PART LIST Model No. WLTL29816C.1 R1016A Key No. Qty. Description Key No. Qty. Description M10 x 65mm Screw Walking Belt M8 x 15mm Screw Walking Platform M4.2 x 19mm Screw Right Foot Rail M8 x 35mm Screw Frame M4.2 x 13mm Washer Head Screw...

  • Page 24: Exploded Drawing

    EXPLODED DRAWING A Model No. WLTL29816C.1 R1016A...
  • Page 25 EXPLODED DRAWING B Model No. WLTL29816C.1 R1016A 23 11...
  • Page 26 EXPLODED DRAWING C Model No. WLTL29816C.1 R1016A...
  • Page 27 EXPLODED DRAWING D Model No. WLTL29816C.1 R1016A...

  • Page 28: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
