Summary of Contents for Western Digital My Book Velociraptor Duo

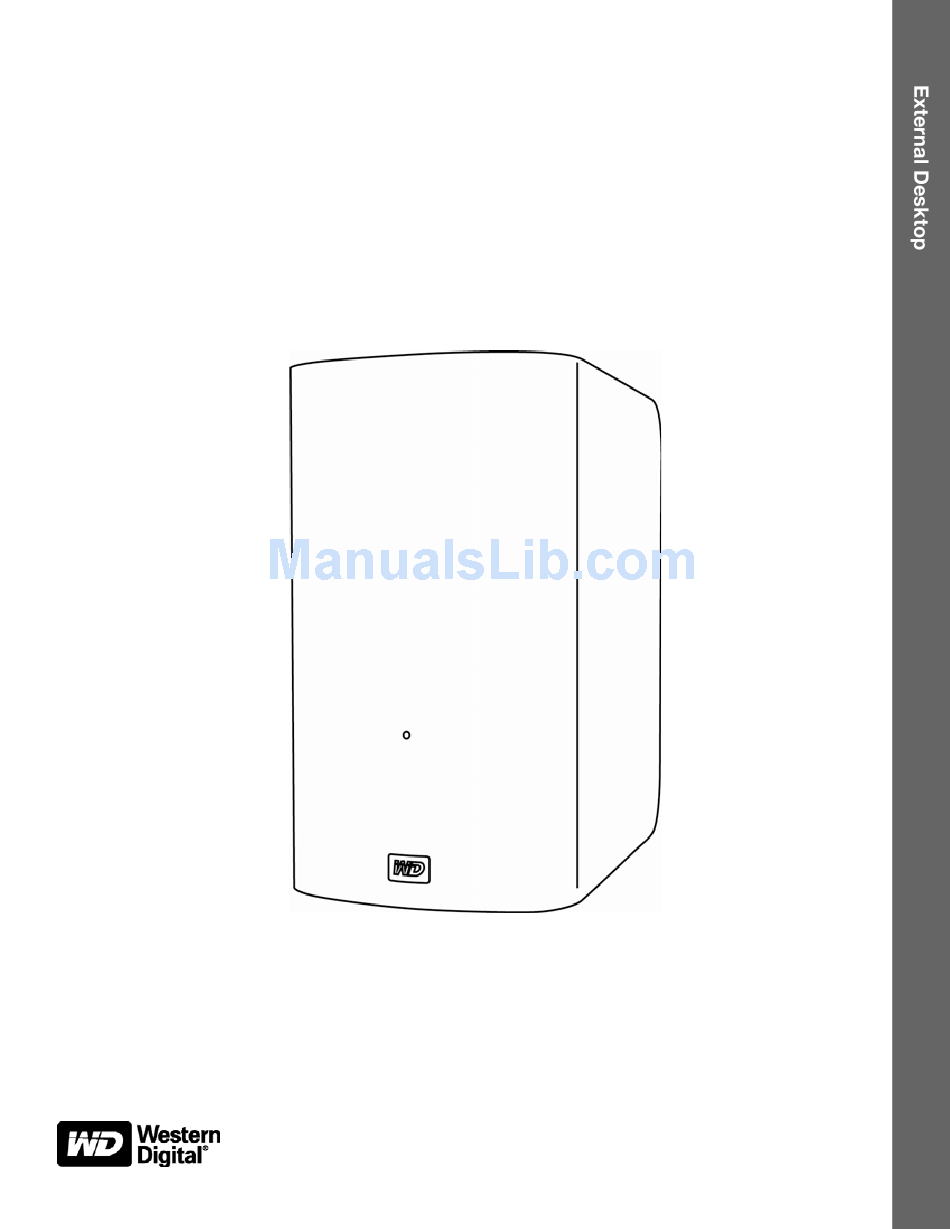

- Page 1 ® My Book VelociRaptor Dual-drive Storage System User Manual My Book VelociRaptor Duo User Manual...
-
Page 2: Wd Service And Support
Your product includes 30 days of free telephone support during the warranty period. This 30- day period starts on the date of your first telephone contact with WD Technical Support. Email support is free for the entire warranty period and our extensive knowledge base is available 24/ 7. -
Page 3: Table Of Contents
Contacting WD Technical Support..........ii About Your WD Storage Device ....... 1 Features . - Page 4 MY BOOK VELOCIRAPTOR DUO USER MANUAL Warranty Information (Australia/New Zealand) ........30 Obtaining Service .
-
Page 5: About Your Wd Storage Device
Features Extreme speed, high capacity storage—Built with two 10,000 RPM WD VelociRaptor drives inside, My Book VelociRaptor Duo delivers extreme speed and high capacity for high-end video and photo editing, 3D rendering, graphic-intensive design and more. Move data at unprecedented speeds—The Thunderbolt connector provides two channels of up to 10 Gb/s transfer rate in both directions. -
Page 6: Kit Contents
For the latest software, firmware, and product documentation and information, go to http://support.wdc.com/downloads. Kit Contents As shown in Figure 1, your My Book VelociRaptor Duo dual-drive storage device kit includes the following: • My Book VelociRaptor Duo dual-drive storage device •... -
Page 7: Optional Accessories
Europe http://www.shopwd.eu http://www.wdstore.eu All others Contact WD Technical Support in your region. For a list of Technical Support contacts, visit http://support.wdc.com and see Knowledge Base answer ID 1048. Operating System Compatibility Your My Book VelociRaptor Duo dual-drive storage device and WD Drive Utilities software are compatible with the following Mac OS X 10.6.8 or later operating systems... -
Page 8: Physical Description
MY BOOK VELOCIRAPTOR DUO USER MANUAL Physical Description As shown in Figure 2, the My Book VelociRaptor Duo dual-drive storage device has: • A power/activity LED indicator on the front • The power connector, Thunderbolt ports, and a security slot on the back Thunderbolt Ports ®... -
Page 9: Thunderbolt Ports
MY BOOK VELOCIRAPTOR DUO USER MANUAL Thunderbolt Ports As shown in Figure 2 on page 4, the My Book VelociRaptor Duo dual-drive storage device has two dual-channel Thunderbolt ports that provide a fast, flexible interface for: • Performance—Thunderbolt technology delivers unprecedented data transfer rates thanks to its revolutionary bidirectional I/O throughput. -
Page 10: Connecting The Device And Getting Started
MY BOOK VELOCIRAPTOR DUO USER MANUAL Connecting the Device and Getting Started This chapter provides instructions for: Connecting the Device Installing the WD Drive Utilities Software Connecting the Device Depending on your region, if required, change the AC adapter as follows: Installing Installing... - Page 11 6. The device automatically powers up and mounts to your computer. 7. Verify that the My Book VelociRaptor Duo appears under DEVICES in the Sidebar area of your Finder display: Note: If the External disks check box is selected on your Finder Preferences dialog, the...
-
Page 12: Installing The Wd Drive Utilities Software
If you do want to use the Time Machine backup software, click Use as Backup Disk. Either way, your My Book VelociRaptor Duo dual-drive storage device is ready to use. To manage and customize the device for the best possible performance, install the WD Drive Utilities software. - Page 13 MY BOOK VELOCIRAPTOR DUO USER MANUAL 2. Drag the icon for the WD Drive Utilities software to the alias Applications folder on the screen that displays: 3. In the alias Applications folder, double-click the WD Drive Utilities application. 4. Read the license agreement and click Accept to continue and display the WD Drive Utilities screen (see Figure 3 “Managing and Customizing the Device”...
-
Page 14: Managing And Customizing The Device
Restoring the WD Software and Disk Image Safely Dismounting the Device Drives The WD Drive Utilities software makes it easy for you to manage and customize your device for the best possible performance: • Diagnostics—Run diagnostics and status checks to make sure your device drives are working properly. - Page 15 To run drive diagnostics and status checks: Click Go > Applications > WD Drive Utilities to display the WD Drive Utilities screen (see Figure 3 on page 9). 2. If you have more than one supported drive or storage device connected to your computer, select the one that you want to check.
-
Page 16: Managing The Raid Configuration
MY BOOK VELOCIRAPTOR DUO USER MANUAL Managing the RAID Configuration The initial/default configuration of your My Book VelociRaptor Duo device is as a striped RAID 0 disk array for high-speed/maximum-storage performance. You can reconfigure the device as either: • A mirrored RAID 1 disk array for maximum-protection/reduced-storage •... -
Page 17: Changing The Device Configuration
WD software and disk image.) To change the device configuration: Click Go > Applications > WD Drive Utilities to display the WD Drive Utilities screen (see Figure 3 on page 9). 2. If you have more than one supported storage device connected to your computer, select the one that you want to configure. - Page 18 Click Configure to begin the configuration change. 6. When prompted, type your password and click OK to continue: 7. During the configuration change, the WD Drive Utilities software: • Displays a status bar to show the progress of the conversion •...
- Page 19 9. To use JBOD mode as a backup disk with Time Machine in HFS+J only: a. Select the volume that you want to use: • My Book VelociRaptor Duo - A • My Book VelociRaptor Duo - B MANAGING AND CUSTOMIZING THE DEVICE – 15...
-
Page 20: Erasing The Device Drives
CAUTION! Erasing a drive permanently deletes all of the data on the drive. Always back up the data on the drive before erasing it. Note: Erasing your device drives also deletes the WD software and all of the support files, utilities, and user manual files. You can download these to restore your device to its original configuration after erasing the drives. - Page 21 Note: Selecting this option ensures all data on the device is erased. This will take several hours to complete. If you do not select this option, the WD Drive Utilities software performs a quick erase operation and the data might be recoverable using disk recovery software.
-
Page 22: Registering The Device
To register your device: Make sure that your computer is connected to the Internet. 2. Click Go > Applications > WD Drive Utilities to display the WD Drive Utilities screen (see Figure 3 on page 9). 3. If you have more than one supported storage device or drive connected to your computer, select the one that you want to register. -
Page 23: Restoring The Wd Software And Disk Image
WD Drive Utilities software and all of the support files, utilities, and user manual files. If you ever need to remove and reinstall the WD software on your computer, or move the device to another computer and install the software there, you will need to restore the WD software and disk image on your device drives. -
Page 24: Safely Dismounting The Device Drives
CAUTION! To prevent data loss, close all active windows and applications before shutting down or disconnecting the device drives. Use the My Book VelociRaptor Duo Finder listing or desktop icon to safely dismount the device drives: Right- or control-click the My Book VelociRaptor Duo Finder listing or desktop icon and select Eject “My Book VelociRaptor Duo”:... -
Page 25: Replacing A Drive
Whether the application is running or not, the WD Drive Utilities software continuously monitors the operational condition of your My Book VelociRaptor Duo drives. When a drive fails, the utility displays a warning message, depending on the configuration of your... -
Page 26: Contacting Wd Technical Support
Only use WD VelociRaptor hard drive assemblies to replace the drives in your My Book VelociRaptor Duo device enclosure. Using any other hard drive assembly voids the warranty for your My Book VelociRaptor Duo device. After receiving the replacement drive, replace the failed drive as follows: If the device is still operational, safely dismount the drives from your computer. - Page 27 Note: Though the drives are labeled Drive A and Drive B, it is their enclosure locations that determine the drive designations used by the WD Drive Utilities software. As you view them from the front of the enclosure: The drive in the . . . enclosure slot Is drive .
- Page 28 MY BOOK VELOCIRAPTOR DUO USER MANUAL 9. Gently slide the replacement drive assembly into the enclosure until it is fully inserted: 10. Replace the drive cover plate and secure it with the thumbscrew: Note: Do not overtighten the thumbscrew. REPLACING A DRIVE – 24...
- Page 29 11. Close the top cover and firmly push down on the top cover button until it snaps into place: 12. If the WD Drive Utilities software is not already running, click Go > Applications > WD Drive Utilities to display the WD Drive Utilities screen (see Figure 3 on page 9).
- Page 30 If you have more than one supported device connected to your computer, select the one with the drive you replaced on the WD Drive Utilities screen and click RAID Management > Status to display the device status. c. Verify that the status display shows: •...
- Page 31 16. Go to http://support.wdc.com and see Knowledge Base answer ID: • 7 for information about downloading and restoring the WD software and disk image • 8644 for information about returning the defective drive. Important: Do not disassemble the internal drive and attached assembly components.
-
Page 32: Compliance And Warranty Information
However, there is no guarantee that interference will not occur in a particular installation. Any changes or modifications not expressly approved by WD could void the user's authority to operate this equipment. -
Page 33: Gs Mark (Germany Only)
New Zealand) Obtaining Service WD values your business and always attempts to provide you the very best of service. If this Product requires maintenance, either contact the dealer from whom you originally purchased the Product or visit our product support website at http://support.wdc.com/... -
Page 34: Limited Warranty
USER MANUAL Limited Warranty WD warrants that the Product, in the course of its normal use, will for the term defined below, be free from defects in material and workmanship and will conform to WD’s specification therefor. The term of your limited warranty depends on the country in which your Product was purchased. -
Page 35: Obtaining Service
E-mail: support@wdc.com Warranty WD warrants that the Product, in the course of its normal use, will for the term defined below, be free from defects in material and workmanship and will conform to WD’s specifications. The term of your warranty is 3 year in Australia and New Zealand, unless otherwise required by law. -
Page 36: Gnu General Public License ("Gpl")
In Australia, if the Product is not of a kind ordinarily acquired for personal, domestic or household use or consumption, provided it is fair and reasonable to do so, WD limits its liability to replacement of the Product or supply of equivalent or better Product. -
Page 37: Index
MY BOOK VELOCIRAPTOR DUO USER MANUAL Index KC notice (Republic of Korea) 29 Kensington security slot 5 Kit contents 2 Accessories, optional 3 Limited warranty information 30 Box contents 2 Obtaining service 29 CAUTION Online support, accessing ii about disconnecting the system 20... - Page 38 Information furnished by WD is believed to be accurate and reliable; however, no responsibility is assumed by WD for its use nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of WD.
