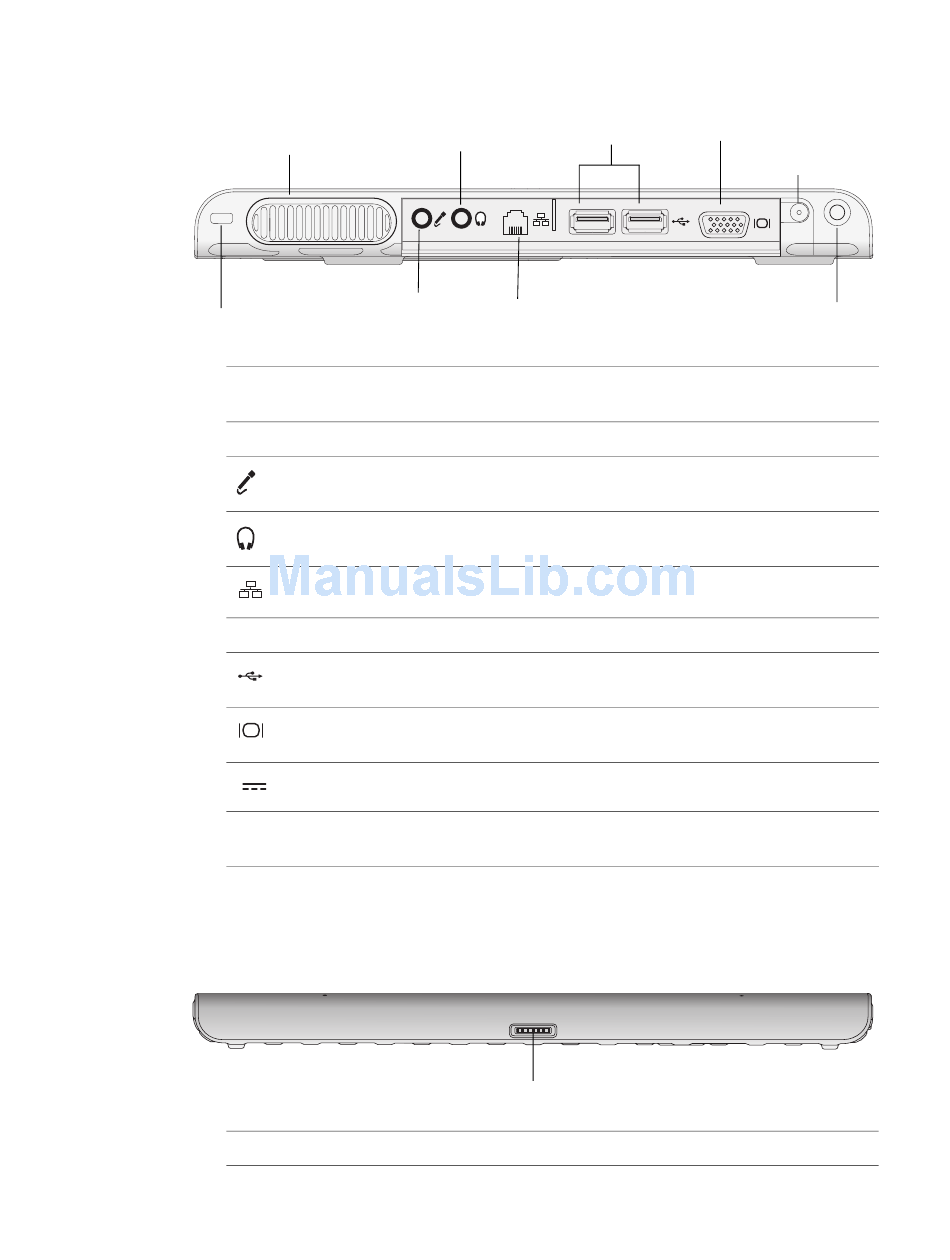

Air vent
Microphone port
Security slot
Security slot
Air vent
Audio in/
Microphone port
Audio out/
Headphone port
Ethernet port
Port covers
USB 2.0 ports
Video (VGA) port
Power adapter port
Shoulder strap
attach point
Mobile keyboard connector
Chapter 1 Getting Started
Left
USB ports
Headphone port
Ethernet port
(Port covers removed)
Connect a security cable to protect the Tablet PC from
theft.
Dissipates heat from the Tablet PC.
Connect a microphone or other audio source using a
3.5 mm jack.
Connect headphones, speakers, or audio equipment
using a 3.5 mm jack.
Connect to a 10/100/1000 Ethernet network.
Covers the two sets of ports.
Connect USB devices such as a mouse, digital camera,
printer, or external storage device.
Connect an external monitor using the standard DB-15
VGA connector.
Connect the power adapter.
Attach point for the shoulder strap.
Bottom
Mobile keyboard connector
Interface for the Mobile keyboard.
Video port (VGA)
Power adapter port
Shoulder strap attach point
