1

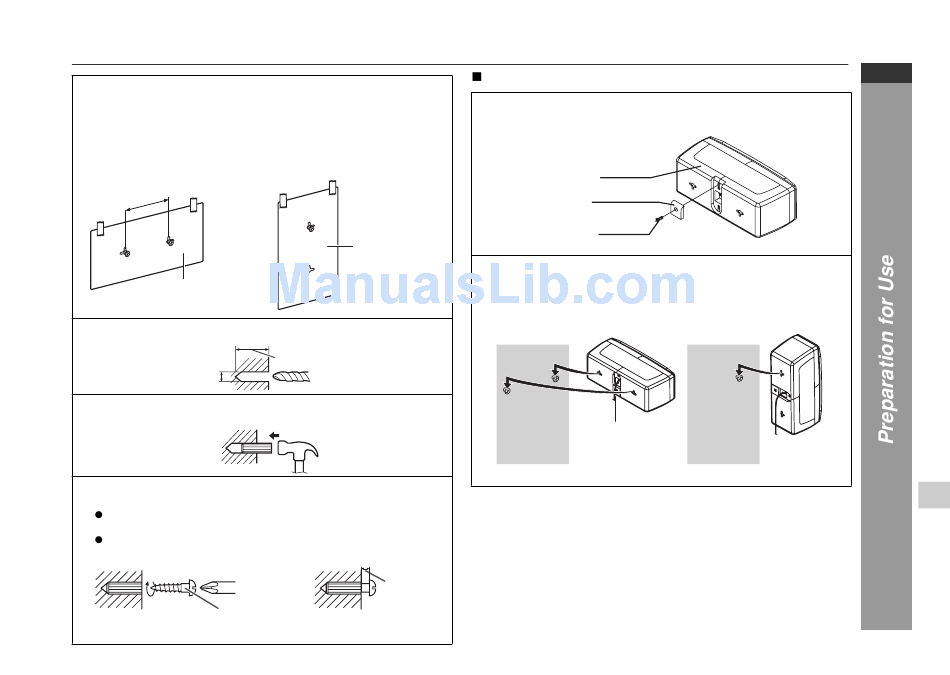

Horizontal position : Fix the pattern paper and fix two
screws into the wall with a distance of
160 mm (6-5/16") in between.
Vertical position : Fix the pattern paper and screws into
the wall.
(Horizontal position)
) "
6
1 /
5 -
6 (
m
m
0
6
1
Pattern paper for
speaker
2
Make a hole in the wall using a drill.
8 - 9 mm (3/8")
3
Fix a wall mount plug into the hole using a hammer, until it
is flush with the wall surface.
4
Fix screws into the wall for the speaker, as shown in
the illustration.
Make sure that the screw and the wall can support a
load of 20 kg (45 lbs).
Fix the screws, so the screw head extends about 5.5 mm
(7/32") from the wall.
Wall mounting
Wall surface
screw
(Vertical position)
Pattern paper
for speaker
32 mm (1-1/4")
5.5 mm
(7/32")
Wall surface
Installing the speakers
1
Align the deco back cover to the hole on the speaker.
Fix them securely with the flush screw.
Speaker box
Deco back
cover
Flush screw
2
Tighten the screws and remove the paper. Hook the
speaker on the screw heads and make sure it is properly
secured.
(Horizontal position)
Speaker
wire
Wall surface
HT-DV40U
HT-DV50U
(Vertical position)
Speaker
Wall surface
wire
