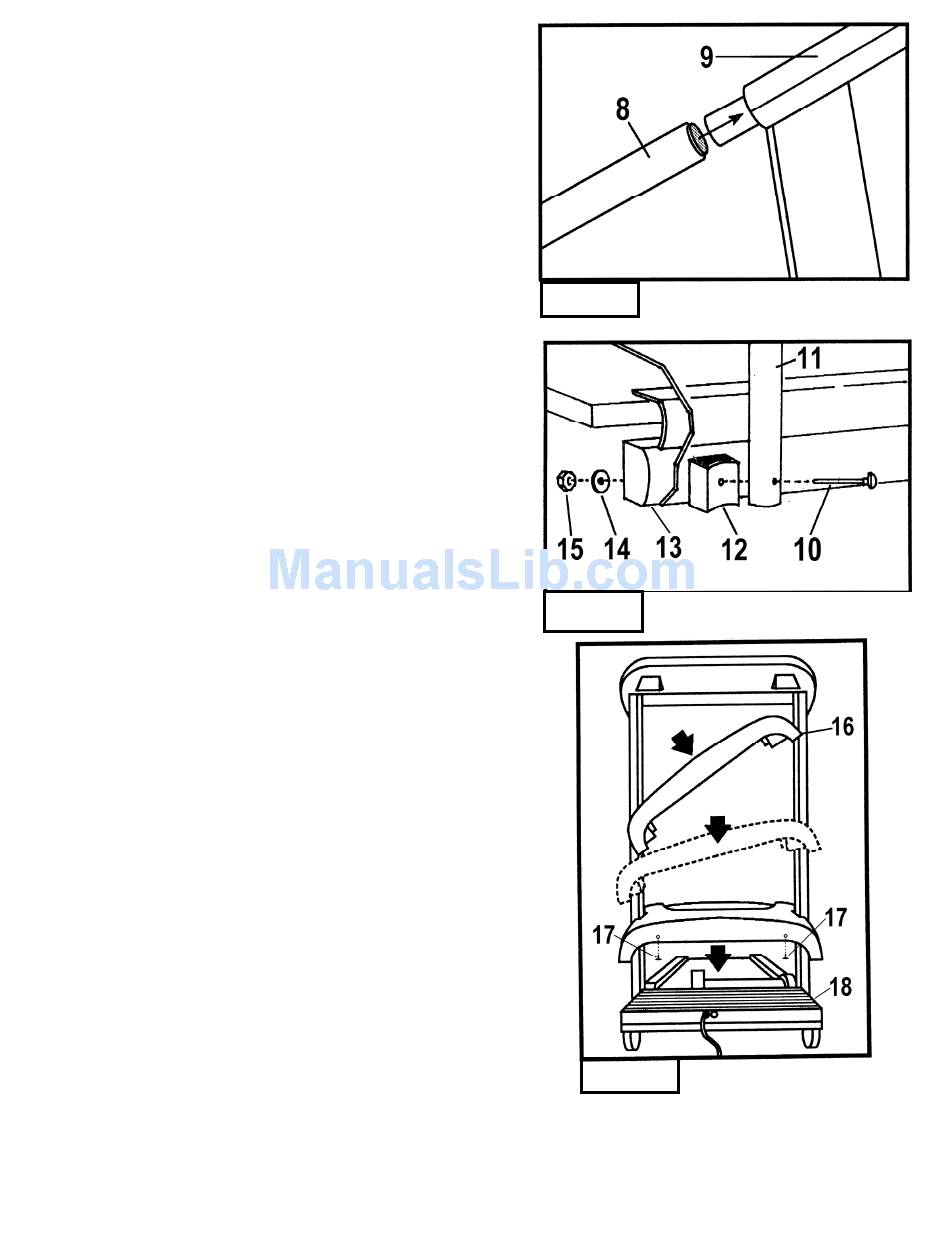

Figure 3:
Take one of the side rails (8) and slide the end with the grip
over the end of the steel tube protruding from the control
panel (9). Make sure the side rail grip touches the control panel.
Figure 3
Figure 4:
Insert one of the 4" carriage bolts (10) through the side rail (11), the side
rail bracket (12) (the foam on the bracket should be at the top, facing
the frame) and finally through the frame (13) . Install a 1" fender washer (14)
and a ¼-20 kep nut (15) to the bolt and hand tighten. Install the other side rail
following the same procedure. Tighten both side rails with a wrench.
Figure 4
Figure 5:
To install the motor cover, stand in front of the treadmill. Pick up
the motor cover (16) so it is level and the word PaceMaster is upside
down. Holding the motor cover level and waist high, tilt it 45 degrees
by lowering your left hand. Then slide it between the handlebars and
lower the motor cover until it is level. Lower the cover all the way,
keeping it level. Screw the two #8x1/2" black sheet metal screws (17)
into the front of the motor cover. Press down on each side of the
motor cover where it meets the black plastic shrouds to lock the Velcro
pads (18) into place.
CAUTION
: Do not raise or lower motor cover without it being level.
Figure 5
6
