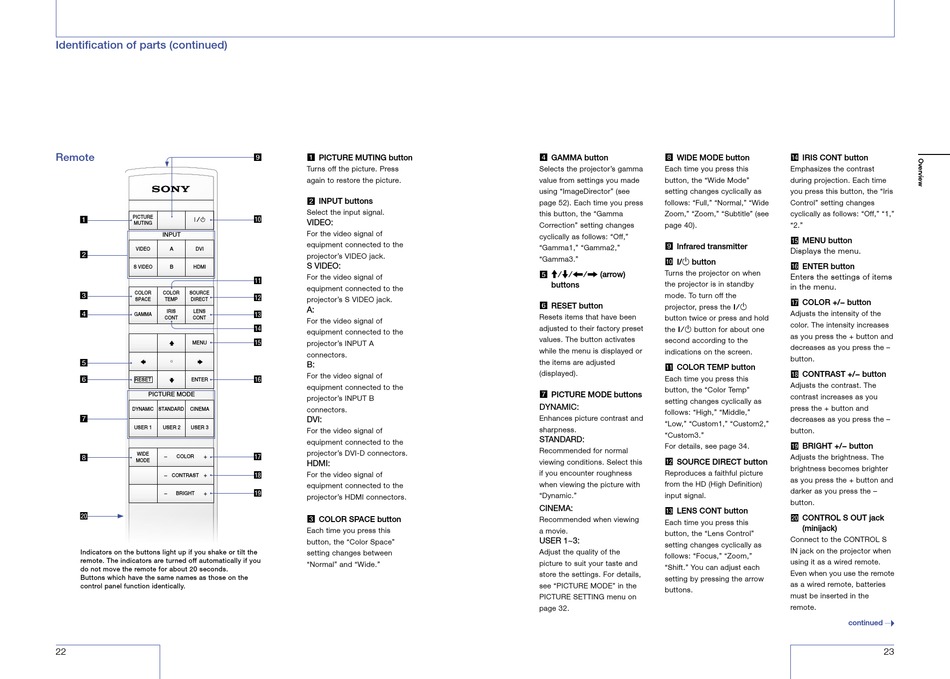

Identification of parts (continued)
Remote
�������
1
������
�����
����� � ���
2
� ����� � ����
������
����� �����
3
����� ���� ������
���� ����
4
�����
���� ����
����
5
6 ����� �����
������� ����
������� �������� ������
7
���� � ���� � ���� �
����
�����
8
����
��������
������
w;
Indicators on the buttons light up if you shake or tilt the
remote. The indicators are turned off automatically if you
do not move the remote for about 20 seconds.
Buttons which have the same names as those on the
control panel function identically.
22
9 PICTURE MUTING button
1
Turns off the picture. Press
again to restore the picture.
INPUT buttons
2
Select the input signal.
q;
VIDEO:
For the video signal of
equipment connected to the
projector's VIDEO jack.
S VIDEO:
For the video signal of
qa
equipment connected to the
qs
projector's S VIDEO jack.
A:
qd
For the video signal of
qf
equipment connected to the
qg projector's INPUT A
connectors.
B:
For the video signal of
qh
equipment connected to the
projector's INPUT B
connectors.
DVI:
For the video signal of
equipment connected to the
projector's DVI-D connectors.
qj
HDMI:
For the video signal of
qk
equipment connected to the
ql
projector's HDMI connectors.
COLOR SPACE button
3
Each time you press this
button, the "Color Space"
setting changes between
"Normal" and "Wide."
GAMMA button WIDE MODE button
4 8
Selects the projector's gamma Each time you press this
value from settings you made button, the "Wide Mode"
using "ImageDirector" (see setting changes cyclically as
page 52). Each time you press follows: "Full," "Normal," "Wide
this button, the "Gamma Zoom," "Zoom," "Subtitle" (see
Correction" setting changes page 40).
cyclically as follows: "Off,"
Infrared transmitter
9
"Gamma1," "Gamma2,"
"Gamma3."
?/1 button
q;
Turns the projector on when
M/m/</, (arrow)
5
buttons the projector is in standby
mode. To turn off the
RESET button
6 projector, press the ?/1
Resets items that have been
button twice or press and hold
adjusted to their factory preset
the ?/1 button for about one
values. The button activates
second according to the
while the menu is displayed or
indications on the screen.
the items are adjusted
COLOR TEMP button
qa
(displayed).
Each time you press this
button, the "Color Temp"
PICTURE MODE buttons
7
setting changes cyclically as
DYNAMIC:
follows: "High," "Middle,"
Enhances picture contrast and
"Low," "Custom1," "Custom2,"
sharpness.
"Custom3."
STANDARD:
For details, see page 34.
Recommended for normal
viewing conditions. Select this SOURCE DIRECT button
qs
Reproduces a faithful picture
if you encounter roughness
when viewing the picture with from the HD (High Definition)
"Dynamic." input signal.
CINEMA:
LENS CONT button
qd
Recommended when viewing
Each time you press this
a movie.
button, the "Lens Control"
USER 1~3:
setting changes cyclically as
Adjust the quality of the
follows: "Focus," "Zoom,"
picture to suit your taste and
"Shift." You can adjust each
store the settings. For details,
setting by pressing the arrow
see "PICTURE MODE" in the
buttons.
PICTURE SETTING menu on
page 32.
IRIS CONT button
qf
Emphasizes the contrast
during projection. Each time
you press this button, the "Iris
Control" setting changes
cyclically as follows: "Off," "1,"
"2."
MENU button
qg
Displays the menu.
ENTER button
qh
Enters the settings of items
in the menu.
COLOR +/− button
qj
Adjusts the intensity of the
color. The intensity increases
as you press the + button and
decreases as you press the –
button.
CONTRAST +/− button
qk
Adjusts the contrast. The
contrast increases as you
press the + button and
decreases as you press the –
button.
BRIGHT +/− button
ql
Adjusts the brightness. The
brightness becomes brighter
as you press the + button and
darker as you press the –
button.
CONTROL S OUT jack
w;
(minijack)
Connect to the CONTROL S
IN jack on the projector when
using it as a wired remote.
Even when you use the remote
as a wired remote, batteries
must be inserted in the
remote.
