System Overview

SYSTEM OVERVIEW

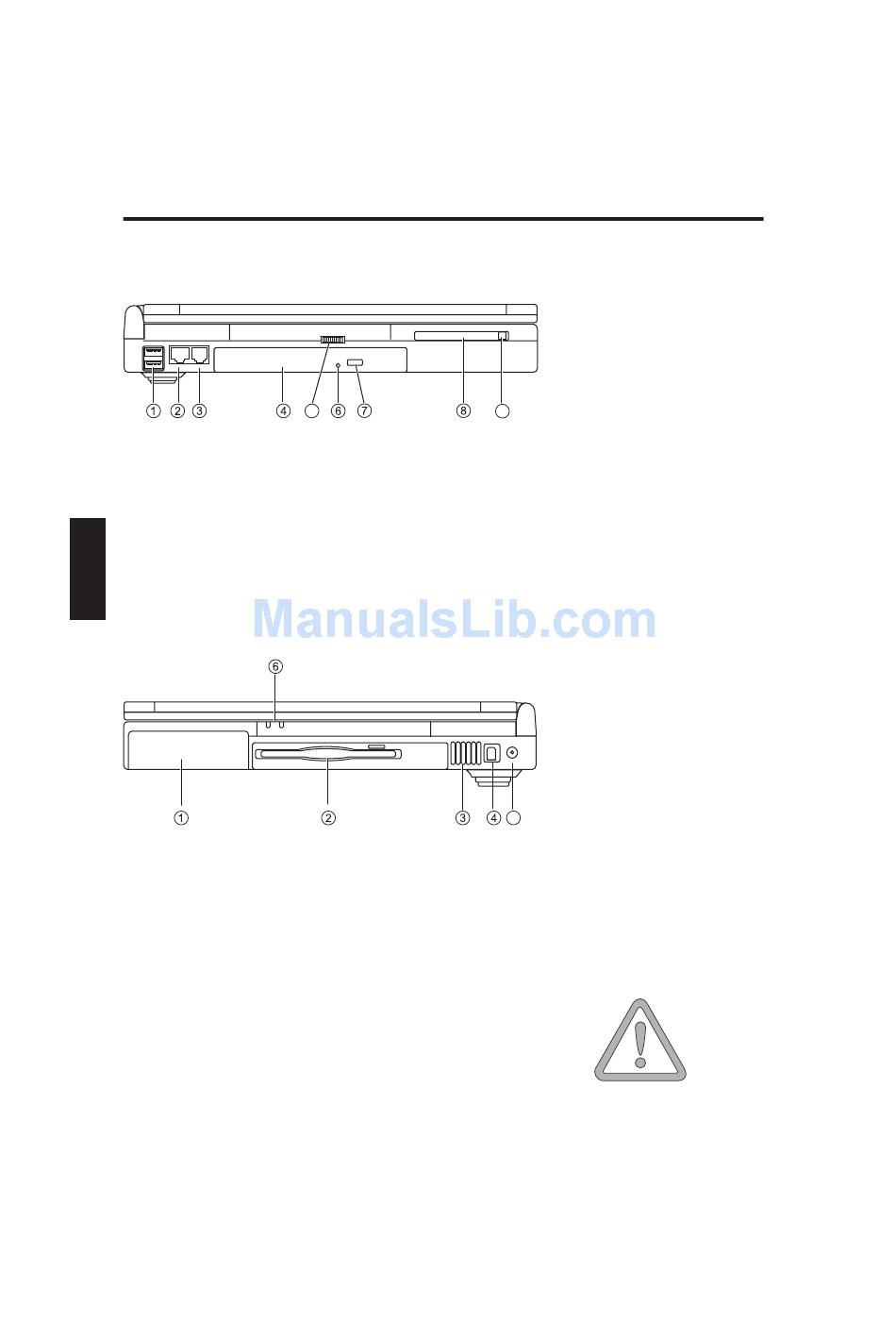

LEFT AND RIGHT SIDES

(1) USB ports
(2) Network port
(3) Modem port
(4) CD or DVD-ROM drive *
(5) CD audio volume control
(6) Emergency opening mechanism *²
(7) CD eject button
(8) PC card slot
(9) PC card release catch
(1) Battery
(2) Floppy disk drive with eject button
(3) Ventilation slots *
(4) S/PDIF (optical digital audio) output
(5) Power in socket
(6) Power and
54
5
Fig. 7
9
* depending on model
*² use a thin object (e.g. a
straightened paperclip)
Only use if you need to open the CD-
ROM drive without a power supply.
Fig. 8
5
* All air intake and ventilation
openings must be kept free
from obstructions at all
times. If not, the device is
liable to overheat.
PLEASE NOTE
