PREPARATION

Before first using the computer, make sure you are familiar with the
individual components of your system.

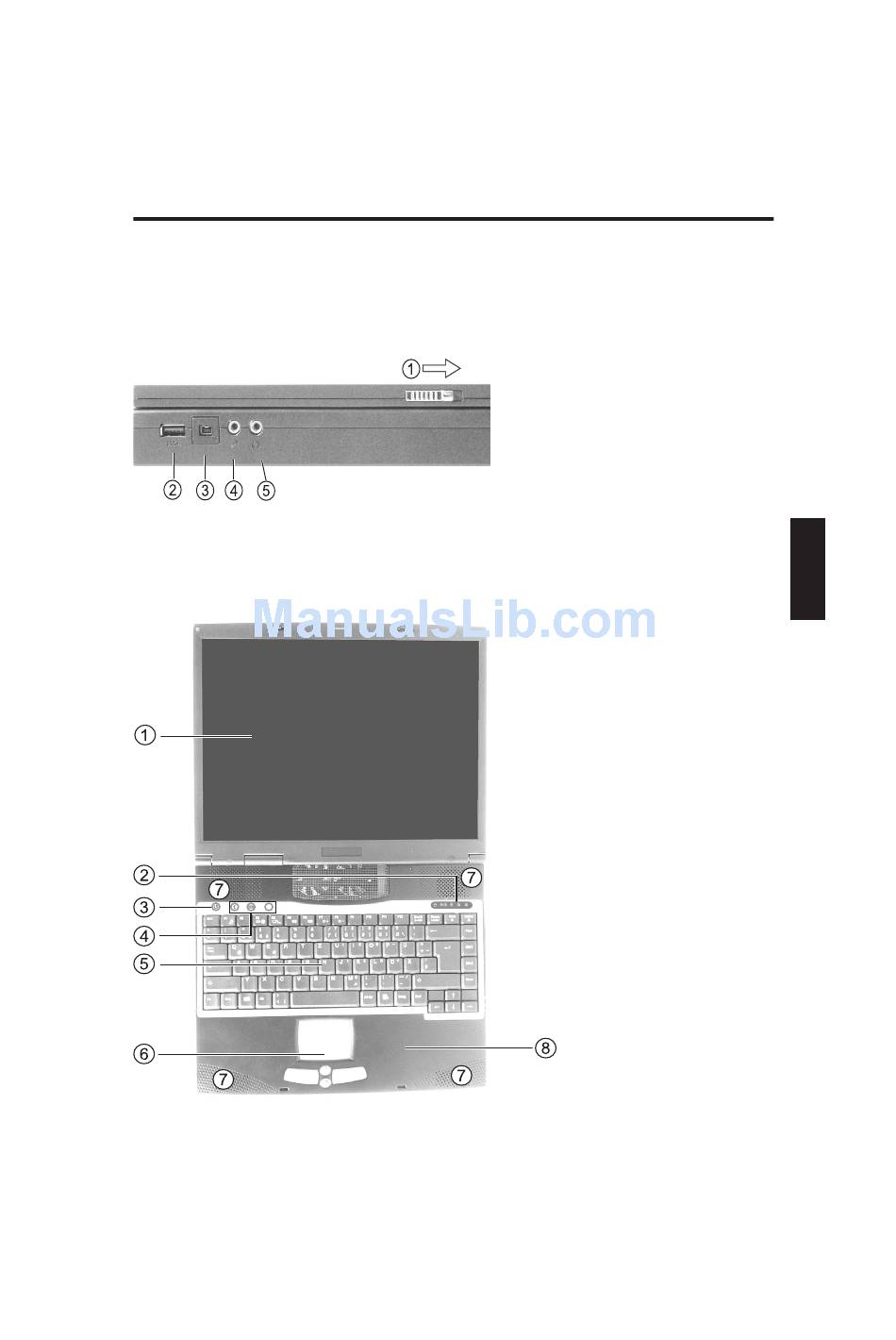

Slide the catch (1) to the right and open the display.
Fig. 1
Fig. 2
Preparation
(1) Catch
(2) USB interface
(3) i.Link 1394 port
(4) Microphone input
(5) Loudspeaker /
headphones
(1) LCD display
(2) Status LEDs
(3) ON/OFF button
(4) Hot keys
(5) Keyboard
(6) TouchPad and buttons
(7) Loudspeaker input
(8) Hand rest
49
