ADVANCED CONNECTIONS

REMOTE CONTROL CONNECTION

By using the remote control cord provided, connecting this player to additional Marantz audio equipment
enables the connected equipment to be remote controlled as a single audio system.
• When connecting equipment incorporating a remote sensor, connect the "remote control out" connector
of the equipment to the "remote control in" jack of the CD player.
When doing this, set this player's switch to "EXTERNAL." This will stop its remote control IR receiver
from operating and the player can now be controlled via the remote control IR receiver of the attached
equipment.
• When using this CD player alone, set the switch to "INTERNAL."
ANALOG OUTPUT ANALOG OUTPUT DIGITAL AUDIO OUT DIGITAL AUDIO OUT
L R COAXIAL COAXIAL OPTICAL OPTICAL
SPEAKER SYSTEMS SPEAKER SYSTEMS
PHONO PHONO
GND GND
MODEL NO. PM5003 MODEL NO. PM5003
R
PHONO PHONO TUNER TUNER CD CD AUX / DVD AUX DVD RECORDER 1 RECORDER 1 RECORDER 2 RECORDER 2
(CD-R (MD
CD-R) MD / TAPE TAPE)
L L L
R R R
R
IN IN OUT OUT IN IN OUT OUT
Amplifi er
AC IN AC IN
MODEL NO. MODEL NO. CD5003 CD5003
REMOTE CONTROL REMOTE CONTROL
IN IN
EXTERNAL EXTERNAL
INTERNAL INTERNAL
OUT OUT

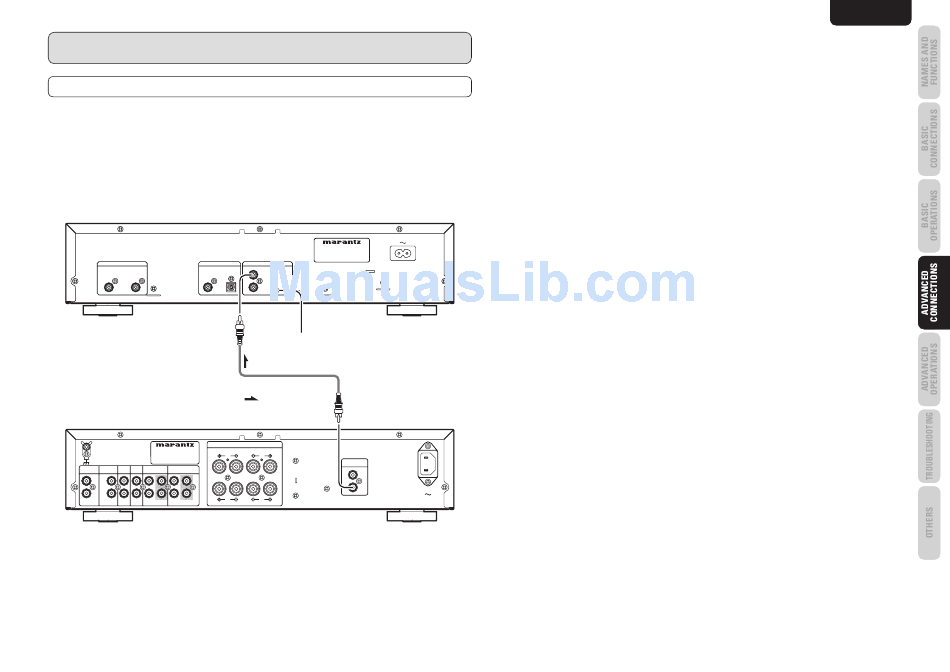

Set to "EXTERNAL."
Remote connector cord (supplied)
: Signal fl ow
