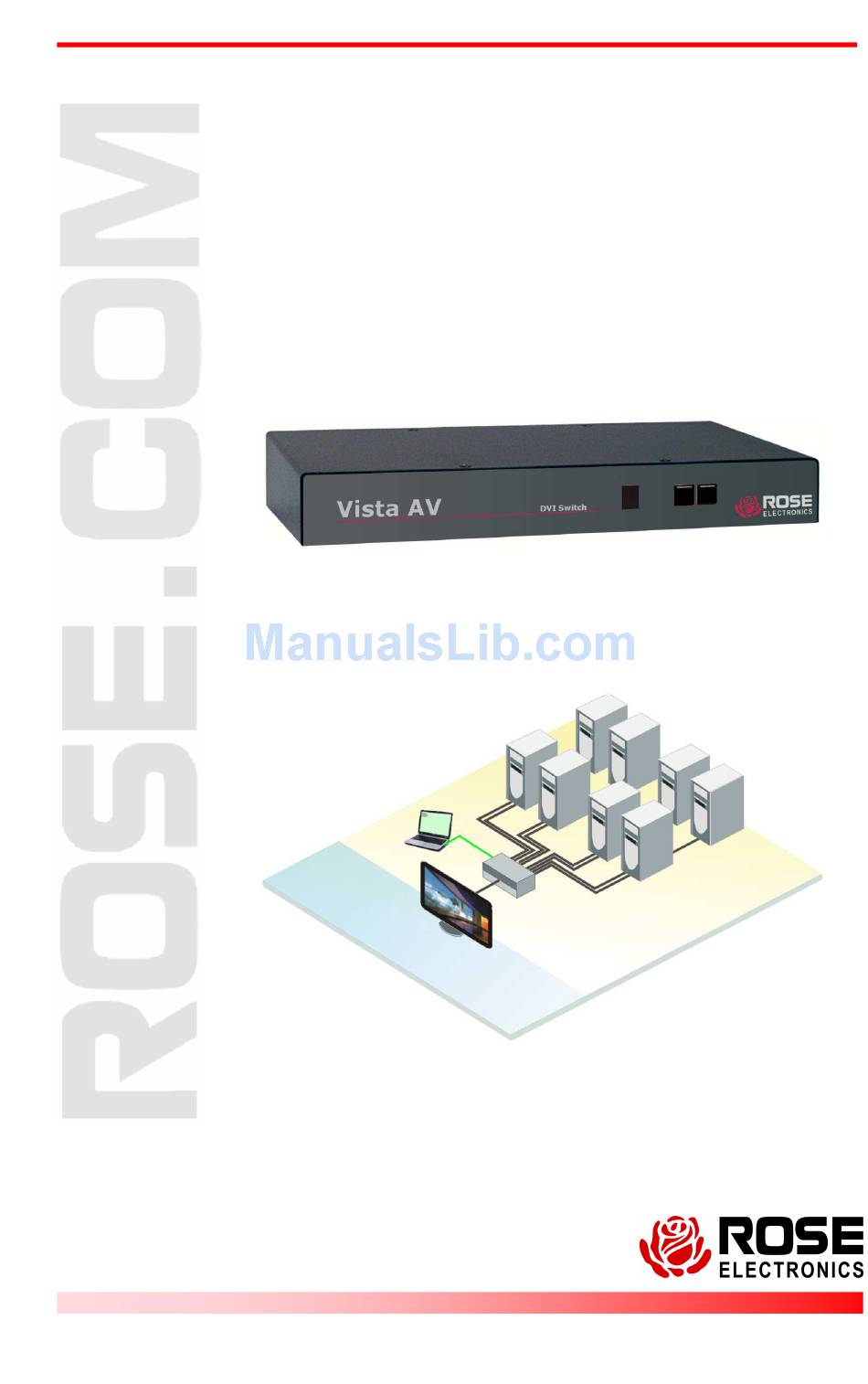

- Page 1 Vista AV DVI SWITCH INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 3 LIMITED WARRANTY Rose Electronics® warrants the Vista AV DVI switch to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
About this manual ..................1 Product Registration ..................1 Disclaimer ...................... 1 Features......................2 Package contents..................2 Rose Electronics web site ................2 Vista AV Models .................... 3 Vista AV Installation..................4 System Operation ..................5 Front panel control ..................5 Remote Serial Switching ................ -
Page 5: System Introduction
RS232 port on the unit. The Vista AV is available in four models, the 1x2, 1x4, 1x8, and 1x16. All models operate and function in the same manor. When the input DVI-D video source is selected, it is instantly displayed on the output DVI monitor at resolutions up to 1920 x 1200. -
Page 6: Features
Rose Electronics web site Visit our web site at www.rose.com for additional information on the Vista AV and other products offered by Rose Electronics that are designed for data center applications, classroom environments, and many other access and switching applications. -
Page 7: Vista Av Models
MODELS Vista AV Models The Vista AV is available in the following models: Selection Indicator Front View Scroll up button Scroll down button Rear View 1x2 Model Power adapter input RS232 port 1-DVI-D output 2-DVI-D inputs Rear View 1x4 Model... -
Page 8: Vista Av Installation
INSTALLATION Vista AV Installation Installation of the Vista AV Switch is a very easy and simple procedure. Figure 2 shows a typical installation. All models install in the same manor. Figure 2. Typical Installation 1. Connect each computers DVI video port to the corresponding DVI Video input ports on the unit. -
Page 9: System Operation
Figure 3 shows the front panel select buttons and the station indicator. The select buttons sequentially select (scroll up or down) which DVI input signal to route to the DVI output. The station indicator shows which DVI input port is selected. Figure 3. Front Panel Vista AV Installation and Operations Manual... -
Page 10: Remote Serial Switching
All Vista AV models can be remotely switched using the RS-232 connection. Install and connect the unit as shown in Figure 2. Use a DB9 male-to- female serial cable to connect a remote computer or laptop to the Vista AV’s RS-232 port. Use a serial communication program like HyperTerminal to connect to the Vista AV. -
Page 11: Service
Technical Support If you are experiencing problems, or need assistance in setting up, configuring, or operating your Vista AV, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support Department at: Phone: (281) 933-7673 E-Mail: TechSupport@rose.com... - Page 12 The Vista AV has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the Vista AV should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.
-
Page 13: Appendix A - Specifications
DVI-D Resolution 1920 x 1200 @ 60Hz Bandwidth 1.65G Connectors: DVI in / out DVI-I 29 pin female Power Male barrel jack Controls: Front panel computer select buttons Power: Adapter +5 VDC / 3A Vista AV Installation and Operations Manual... -
Page 14: Appendix B - Part Numbers
Appendix B – Part numbers Description AVS-1x02DVI 1x2 DVI Switch AVS-1x04DVI 1x4 DVI Switch AVS-1x08DVI 1x8 DVI Switch AVS-1x16DVI 1x16 DVI Switch CAB-DVIIMMxxx DVI video cable Vista AV Installation and Operations Manual... - Page 16 〒103-0014 東京都中央区日本橋蛎殻町 1-16-11 TEL:03-3668-8089 FAX:03-3668-9872 URL:http://www.cybernetech.co.jp...
