Summary of Contents for A&D UC-355PBT-Ci

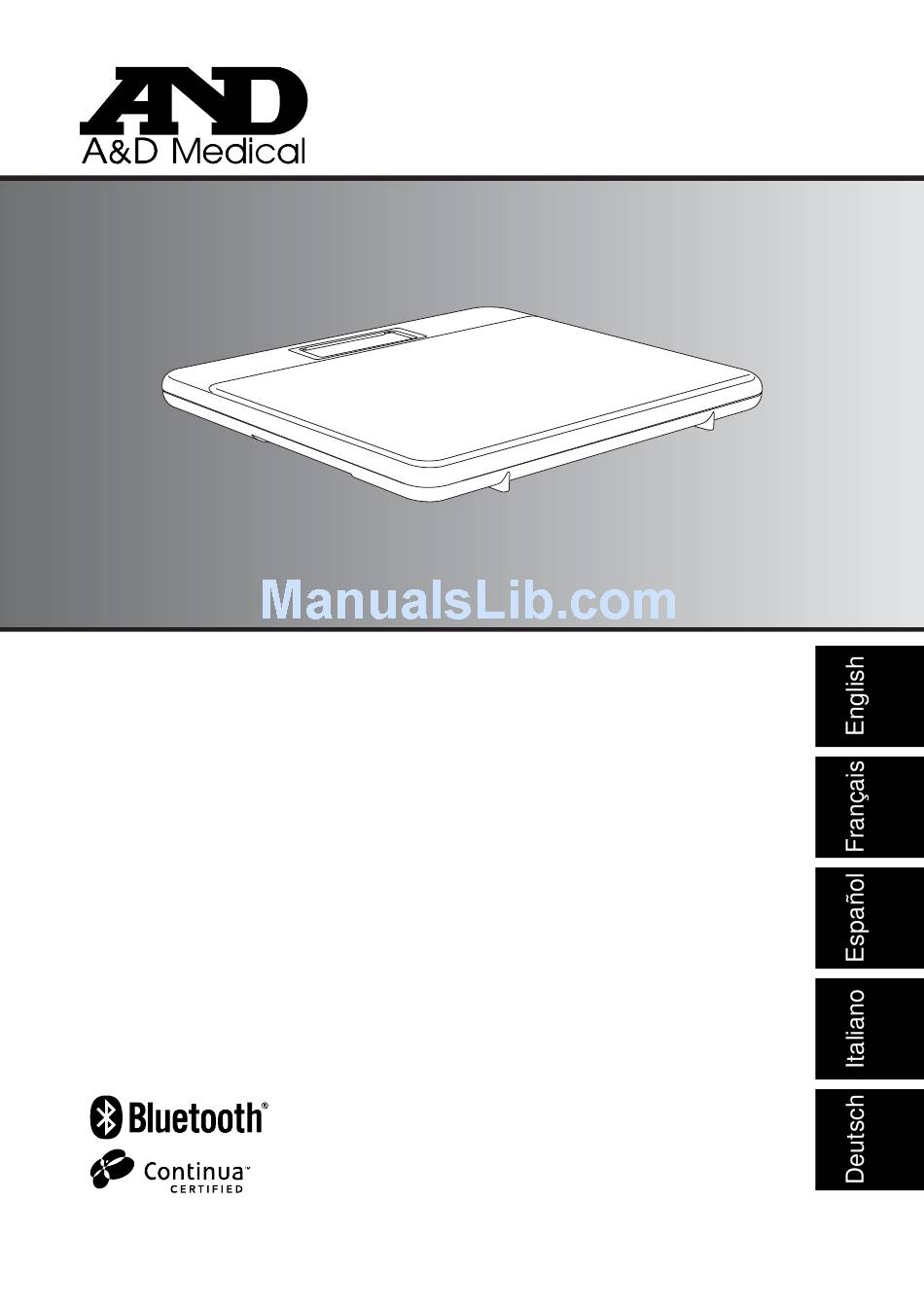

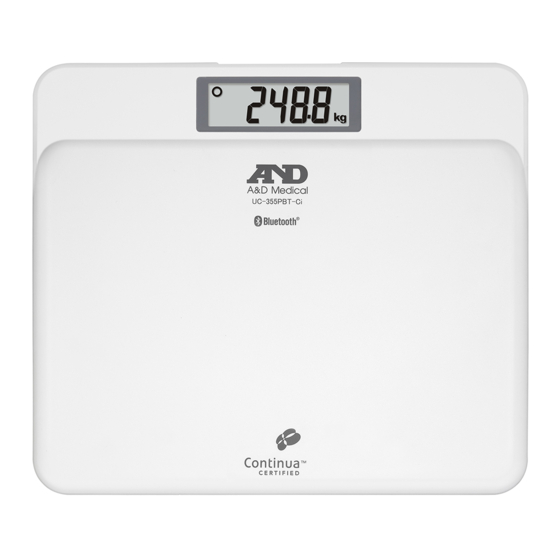

- Page 1 Precision Health Scale UC-355PBT-Ci Instruction Manual Mode d'emploi Manual instructivo Manuale d’uso Bedienungsanleitung 1WMPD4002731...
-
Page 2: Table Of Contents
Contents Startup Guide ..................... 1 Safety Precautions..................2 Wireless Communication Function ............3 Accessories ....................3 Parts Names ....................4 Installing (or Replacing) the Batteries ............. 5 Registering with a Receiver (Pairing) ............6 Skip Registering with a Receiver (Pairing) ..........7 Setting the Unit .................. -
Page 3: Startup Guide
Startup Guide Get Started Install the batteries (P.5) Pair with a receiver (P.6) Measure without pairing with a receiver (P.7) Set the Unit (P.8) Measuring (P.9) Step on the scale Confirm that StEP and oFF are alternately displayed Step off the scale Confirm your weight Data is transmitted. -
Page 4: Safety Precautions
Safety Precautions The following items contain information to prevent the risk of harm or injury to yourself or other people. Please read these items carefully and be sure to use this product correctly. This symbol indicates "an immediate danger which could result Danger in death or serious injury". -
Page 5: Wireless Communication Function
This scale is not guaranteed to connect to all Bluetooth compatible devices. Accessories If any of the accessories are missing or damaged, contact the product vendor or an A&D Sales Branch. Precision Health Scale UC-355PBT-Ci Instruction Manual Mode d'emploi Manual instructivo Manuale d’uso... -
Page 6: Parts Names
Parts Names Scale Battery compartment (ON OFF/Setting) Switch Feet Feet Handles Display Section Stable Symbol Bluetooth Communication Symbol Unit Battery indicator Display Symbols Display Section Symbol Name Description This symbol is displayed when the measurement Ready/Stable symbol display is stable. The normal battery power indicator with charge Battery indicator remaining. -
Page 7: Installing (Or Replacing) The Batteries
Installing (or Replacing) the Batteries Open the battery compartment cover on the underside of the scale. Install four new AA size alkaline batteries with the positive (+) and negative (-) terminals properly aligned with the corresponding symbols in the battery compartment. -
Page 8: Registering With A Receiver (Pairing)
Registering with a Receiver (Pairing) This scale needs to be registered with a receiver in order to use Bluetooth communication with the receiver. The process of registering this scale with a receiver is known as pairing. When pairing is completed, measurement data from this scale is automatically sent to the paired device each time a measurement is made when the receiver is in the state in which it can receive transmissions. -
Page 9: Skip Registering With A Receiver (Pairing)
Skip Registering with a Receiver (Pairing) Install four AA size alkaline batteries into this scale. For details, see "Installing (or Replacing) the Batteries (P.5)". Press the switch when "Pr" is displayed. Beep Press the switch to turn the power off. You can also measure your weight by simply stepping on the scale when "Pr"... -
Page 10: Setting The Unit
Setting the Unit Confirm that the scale is turned off, and press and hold the switch. When the switch is Beep continuously pressed, "unit" and "uPr" are alternately displayed. Release the switch Beep when "unit" is displayed. The display changes from "unit" to display the unit that is currently set. -
Page 11: Measuring Your Weight
Measuring Your Weight Step On Weighing Confirm that the scale is turned off, and step on the scale gently. Measurement starts when you step Beep on the scale. A progress bar is displayed during measurement. Stand up straight and remain as still as possible during measurement. -
Page 12: Measuring Your Weight On A Carpet
Measuring Your Weight on a Carpet Place the scale on a solid level surface, such as tile, wood, or laminate flooring. If the scale must be used on a carpet, be sure to use the supplied tray. Place the supplied tray on the carpet. Place the scale onto the tray in line with the illustration on the tray. -
Page 13: Other Functions
Other Functions Unpairing Confirm that the scale is turned off, and press and hold the switch. When the switch is continuously Beep pressed, "unit" and "uPr" are alternately displayed. Release the switch Beep when "uPr" is displayed. Confirm that "End" is Beep beep displayed. - Page 14 Scale Communication This scale is equipped with a Continua certified Bluetooth wireless communication function. Measurement data can be transmitted by connecting to a Bluetooth device that is compatible with Continua connection specifications. Devices that are Continua certified carry the Continua logo mark. Bluetooth devices carry the Bluetooth logo mark.
-
Page 15: Specifications
Specifications Model UC-355PBT-Ci Maximum capacity 250 kg / 550 lb Minimum display 0.1 kg units from 0 to 100.0 kg 0.2 kg units from 100.0 to 250.0 kg 0.2 lb units from 0 to 220.0 lb 0.5 lb units from 220.0 to 550.0 lb Communication Bluetooth Ver.2.1 class 1... -
Page 16: Before Requesting Service
Before Requesting Service Symptoms Corrective Action E is displayed Exceeds the maximum capacity (250 kg / 550 lb). E-0 is displayed Exceeds the maximum capacity (250 kg / 550 lb). Err is displayed Exceeds the maximum capacity (250 kg / 550 lb). E-10 is displayed Pairing or unpairing has not completed correctly. - Page 17 1-243 Asahi, Kitamoto-shi, Saitama 364-8585 JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A.
