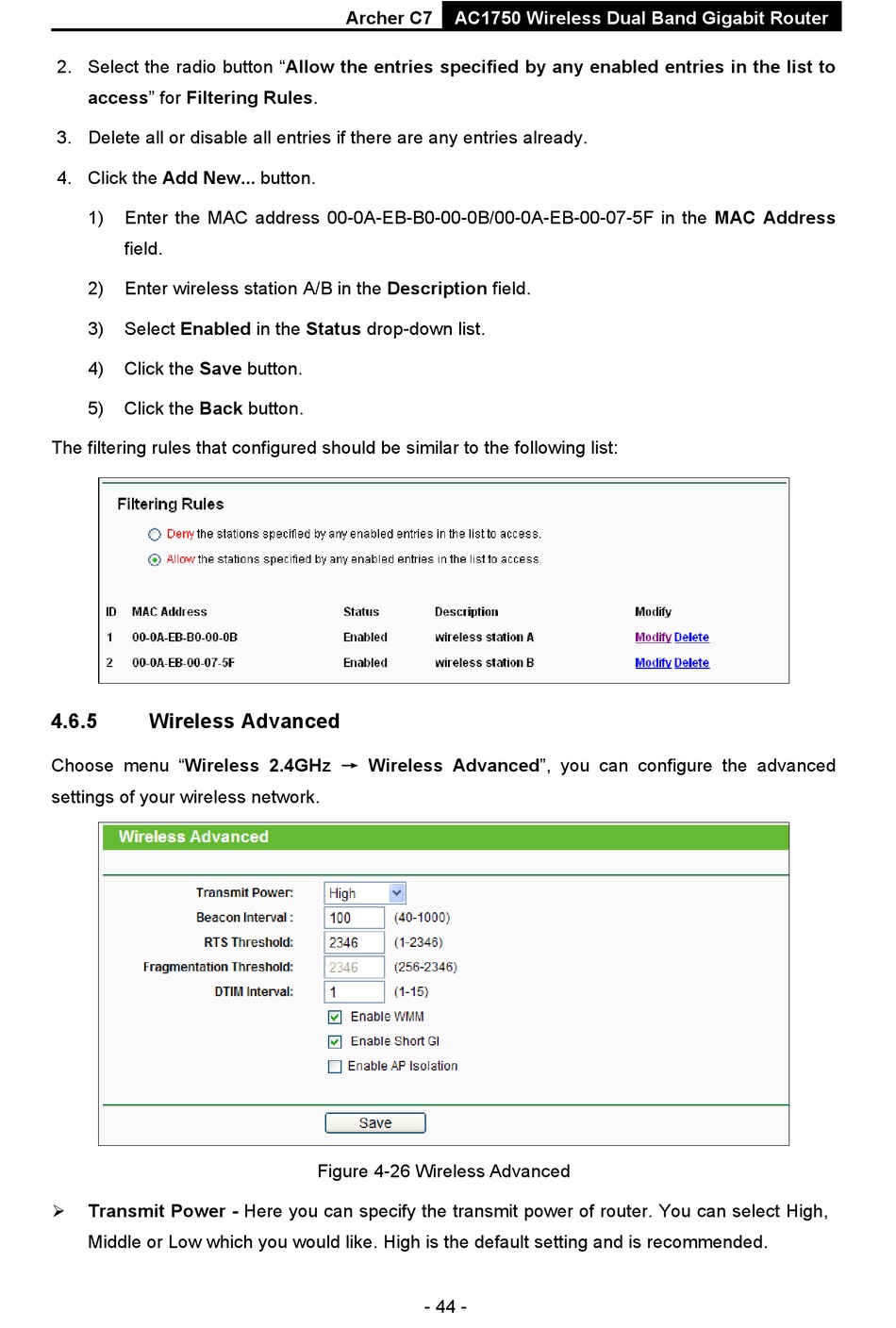

Wireless Advanced - TP-Link Archer C7 User Manual

2. Select the radio button "Allow the entries specified by any enabled entries in the list to
access" for Filtering Rules.
3. Delete all or disable all entries if there are any entries already.
4. Click the Add New... button.
1) Enter the MAC address 00-0A-EB-B0-00-0B/00-0A-EB-00-07-5F in the MAC Address
field.
2) Enter wireless station A/B in the Description field.
3) Select Enabled in the Status drop-down list.
Click the Save button.
4)
5) Click the Back button.
The filtering rules that configured should be similar to the following list:
4.6.5

Wireless Advanced

Choose menu "Wireless 2.4GHz → Wireless Advanced", you can configure the advanced
settings of your wireless network.
Transmit Power - Here you can specify the transmit power of router. You can select High,

Middle or Low which you would like. High is the default setting and is recommended.
Archer C7 AC1750 Wireless Dual Band Gigabit Router
Figure 4-26 Wireless Advanced
- 44 -
