TP-Link Archer C7 User Manual page 22

3. Click Next, and then WAN Connection Type page will appear, shown in Figure 3-6.
The router provides Auto-Detect function and supports three popular ways PPPoE, Dynamic IP, and
Static IP and to connect to the Internet. It's recommended that you make use of the Auto-Detect
function. If you are sure of what kind of connection type your ISP provides, you can select the very type
and click Next to go on configuring.
4. If you select Auto-Detect, the router will automatically detect the connection type your ISP
provides. Make sure the cable is securely plugged into the Internet port before detection. The
appropriate configuration page will be displayed when an active Internet service is
successfully detected by the router.
1) If the connection type detected is Dynamic IP, no configuration is needed for this step.
2) If the connection type detected is Static IP, the next screen will appear as shown in
Figure 3-7. Configure the following parameters and then click Next to continue.
Archer C7 AC1750 Wireless Dual Band Gigabit Router

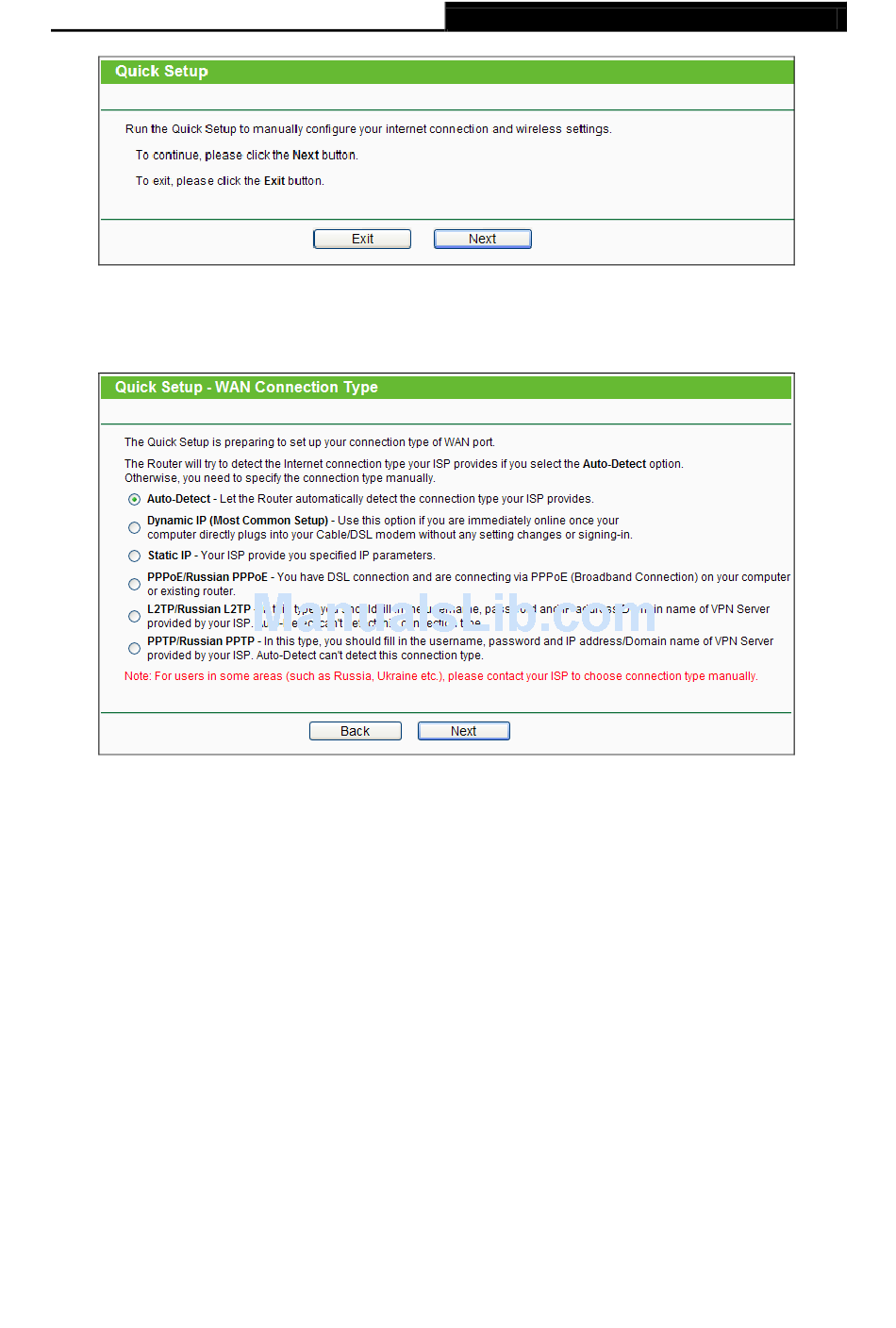

Figure 3-5 Quick Setup
Figure 3-6 WAN Connection Type
- 12 -
