Clever Features, Contractor Friendly
AMIS250P
250w Power Amplifier
Operating Manual

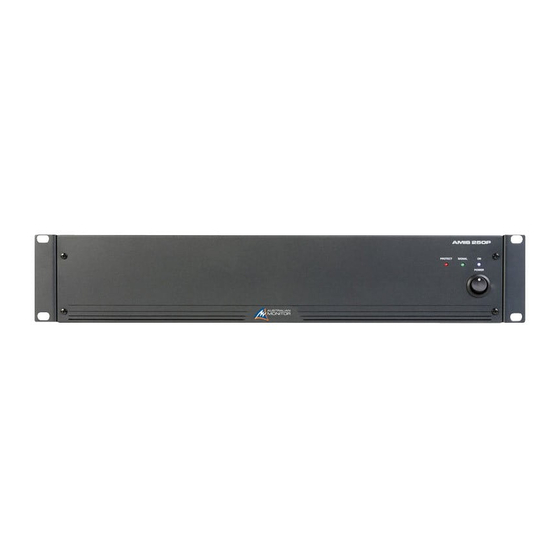

AMIS250P, 250 Watt Power Amplifier
Product Description
The AMIS250P power amplifier is designed for commercial installations. It can be used for either low
impedance (4 ohm) or 25/70v line speaker systems. It operates on 115 VAC, 60Hz and may be desk or
rack mounted. The AMIS250P features a line level input (with parallel output) and is normally used with
mixers, mixer amplifiers or other power amplifiers. The AMIS250P delivers 250 watts into a load of 4
ohms, 25 or 70 volt line. The AMIS250P also features 24 volt DC operation.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AUSTRALIAN MONITOR AMIS250P
Summary of Contents for AUSTRALIAN MONITOR AMIS250P
-
Page 1: Product Description
(4 ohm) or 25/70v line speaker systems. It operates on 115 VAC, 60Hz and may be desk or rack mounted. The AMIS250P features a line level input (with parallel output) and is normally used with mixers, mixer amplifiers or other power amplifiers. The AMIS250P delivers 250 watts into a load of 4... -
Page 2: Front Panel Features
In 24vdc operation the LED will always be on. Signal LED The green “Signal” LED located next to the ‘On’ LED indicates that the AMIS250P is receiving audio signal via its line level input. The signal LED is a simple method to trouble-shoot installations especially in multi amplifier projects. -
Page 3: Rear Panel Features
24 Volt DC Power Inlet The AMIS250P feature optional 24VDC power to run off a battery back-up if required. This is connected via the rear terminal strip. The front panel Power Switch will not switch DC power ‘on’ or ‘off’ in DC operation. -
Page 4: Important Safety Information
distributed (split) to other amplifiers. In some projects, the same input may be looped through to multiple amplifiers using this method. Up to 6 amplifiers can be looped together without any noticeable loss in level. A distribution amplifier should be used when more than 6 amplifiers need to be looped. The XLR’s are wired as follows: Pin 1: Shield. - Page 5 Australian Monitor Audio Inc is not responsible for damage to loudspeakers for any reason. 18. Do not ground any red (“hot”) terminal. Never connect a “hot” (red) output to ground or to another “hot”...
- Page 6 Australian Monitor Audio Inc. PO Box 3126, Lynnwood, WA 98046. Ph: 425 673 5175 Fax: 425 673 7825 E-mail: sales@australianmonitor.com techsupport@australianmonitor.com accounts@australianmonitor.com International Sales & Corporate Head Office Private Bag 149, Silverwater NSW 1811 149 Beaconsfield Street, Silverwater NSW 2128...
