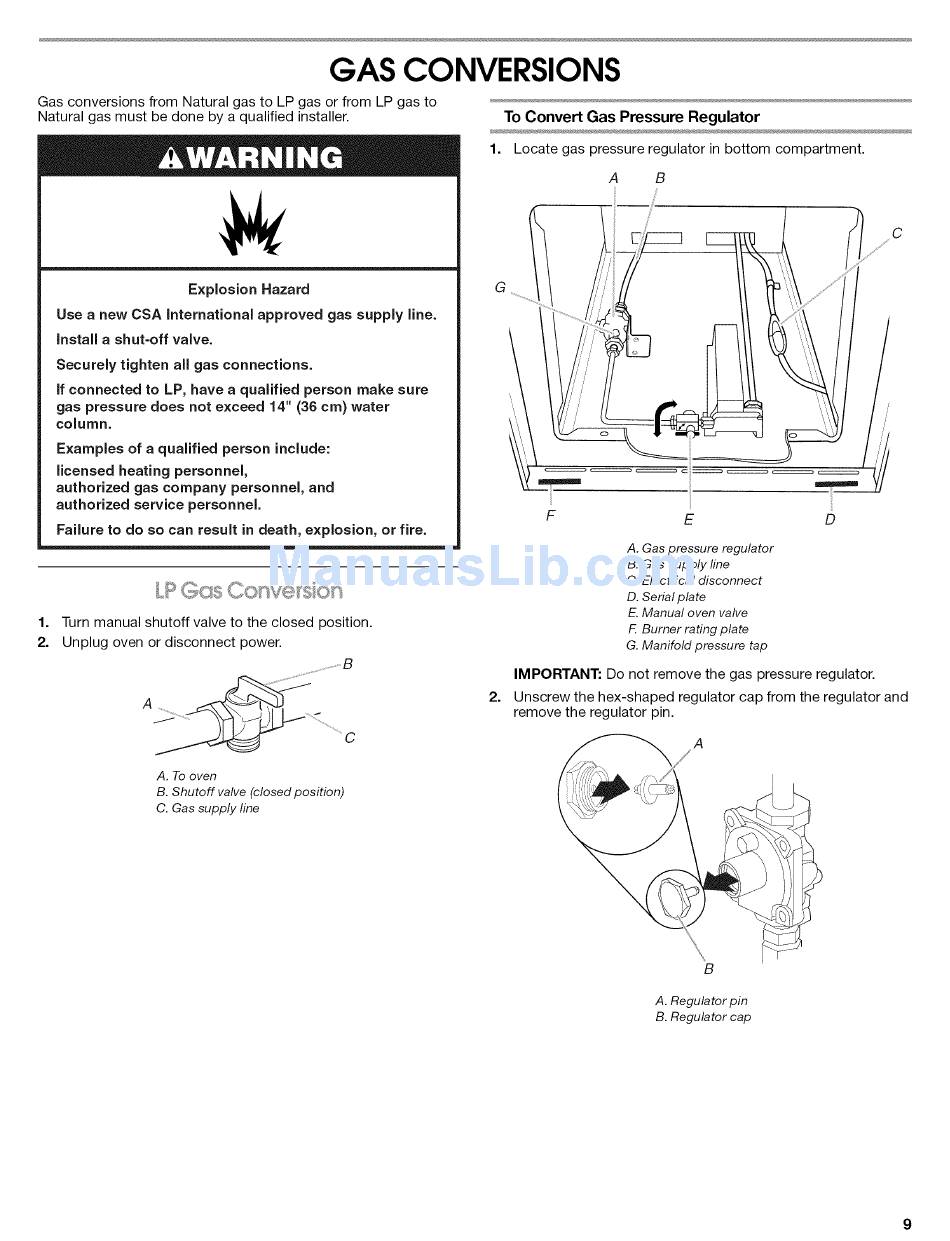

GAS CONVERSIONS
Gas conversions from Natural gas to LP gas or from LP gas to
Natural gas must be done by a qualified installer.
Explosion Hazard
Use a new CSA International
approved
gas supply line.
instal a shut=off valve.
Securely tighten
all gas connections.
if connected to LP, have a qualified
person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified
person include:
licensed heating personnel,
authorized
gas company personnel, and
authorized
service
personnel.
Failure to do so can result in death, explosion,
or fire.
1.
2.
Turn manual shutoff valve to the closed position.
Unplug oven or disconnect
power.
.................
S
J
...............
< ....................
C
To Convert Gas Pressure Regulator
1. Locate gas pressure regulator in bottom compartment.
C
G
2.
D
A. Gas pressure regulator
B. Gas supply line
C. Electrical disconnect
D. Serial plate
E. Manual oven valve
F. Burner rating plate
G. Manifold pressure tap
IMPORTANT: Do not remove the gas pressure regulator.
Unscrew the hex-shaped regulator cap from the regulator and
remove the regulator pin.
A
A. To oven
B. Shutoff valve (closed position)
C. Gas supply line
B
A. Regulator pin
B. Regulator cap
